Discharge temperature threshold sensor (only on CHILLED WATER models)
An NTC temperature sensor is an optional accessory which maintains the supply air temperature of the unit above a
threshold value. The sensor is connected to the microprocessor control system as described in the electrical diagram
of the unit.

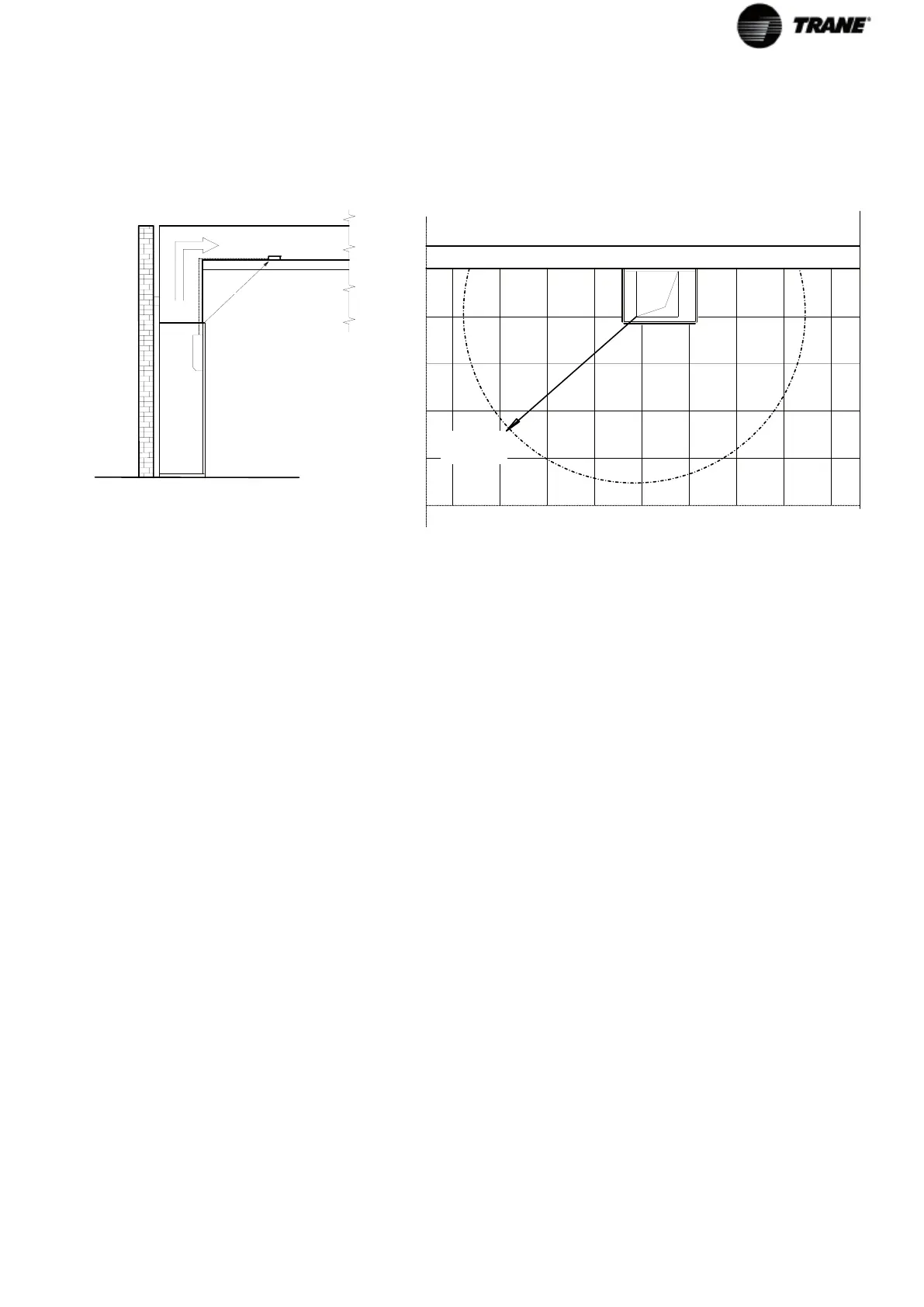

The sensor has a temperature range of -50°C and +50°C and a protection level of IP67; it can be installed outside the
unit by means of a cable which is 3 metres long. A minimum distance of 2 metres is advisable from the unit discharge,
as shown in the diagram for upow units.
STM
STM
2 m
