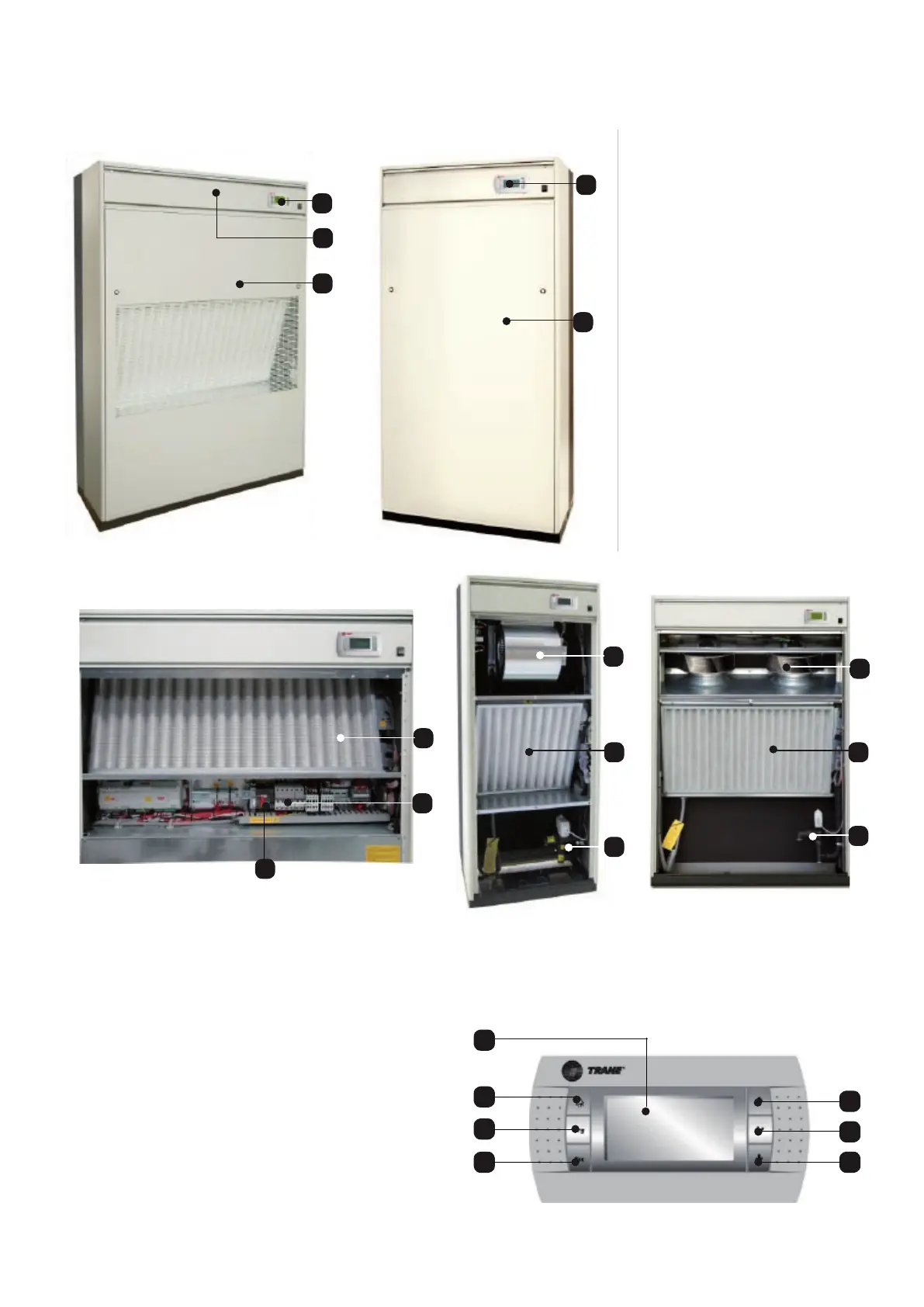

Name and description of the main components
Description of the components
A - User terminal
Allows the unit to be turned on or off and the conguration
and visualization of the condition of the machine.
A1 LCD Display
A2 ALARM key: visualisation and re-set of alarms;
when the alarm is activated, it ashes red
A3 PRG key : access to the conguration menu
A4 ESC key : exit from the screens
A5 UP key : scroll through the menu
A6 ENTER key : conrm
A7 DOWN key: scroll through the menu
A User terminal
B Electrical panel door
C Cover panels
D Electrical panel
E Air Filter
F Fans
G Chilled water valve
B - Electrical panel door
Allows access to the electrical panel of the machine
C - Cover panels
Allow access to the internal components of the machine.
Model JUC*
A
B
C
A
C
Model JDC*
E
D
D5
F
E
G
F
E
G
A2
A4
A5
A6
A7
A1
A3
