rev.
JDAC0160A(H) JDWC0160A(H)
SERIAL No.
JUAC0160A(H) JUWC0160A(H)
TENS. 400V/3Ph+N/50Hz AUX. 24 VOLT
NO. TENS. (V) OA (A) [/1] FLA (A) [/1] LRA (A) [/1] P (kW) [TOT]
COMPRESSOR 1 400/3 9,5 14,8 87 4,53
FAN 2 230/1 2,9 3,5 4 0,63
HUMIDIFIER 1 230/1 9,4 0,0 0 2,16
HEATERS STD 1 230/1 8,7 0,0 0 6
ENHANCED HEATERS 1 400/3 13,0 0,0 0 9
UNIT (STD HEATERS) (*) 18,1+5,8x1Ph 11,79
UNIT (ENHANCED HEATERS) (*) 22,5+5,8x1Ph 14,79
UNIT (STD HEATERS+CAP max) (*) 18,1+5,8x1Ph 12,26
UNIT (ENH. HEATERS+CAP max) (*) 22,5+5,8x1Ph 15,26
Icu=15kA (CEI EN 60947-2) / (
) in operating conditions at 400V
2) / (*) in operating conditions at 400V
TSR
STOP:
310 °C MAN. RESET
TSRA
STOP:
328 °C MAN. RESET
AP
STOP:
38,7 bar MAN. RESET
BP
STOP:
4,6 bar DIFF: 2 bar
CHARGE: R410A kg/circ.
PRECHARGE: DRY NITROGEN N2
Identifying prex of the Jupiter family
Air discharge
U = Upow (upwards discharge)
D = Downow (downwards discharge)
Operating typology
C = Chilled water units
A = Air cooled direct expansion units
W = Water cooled direct expansion units
Fan typology
V = Radial Electronically Commutated fans
C= Centrifugal fans

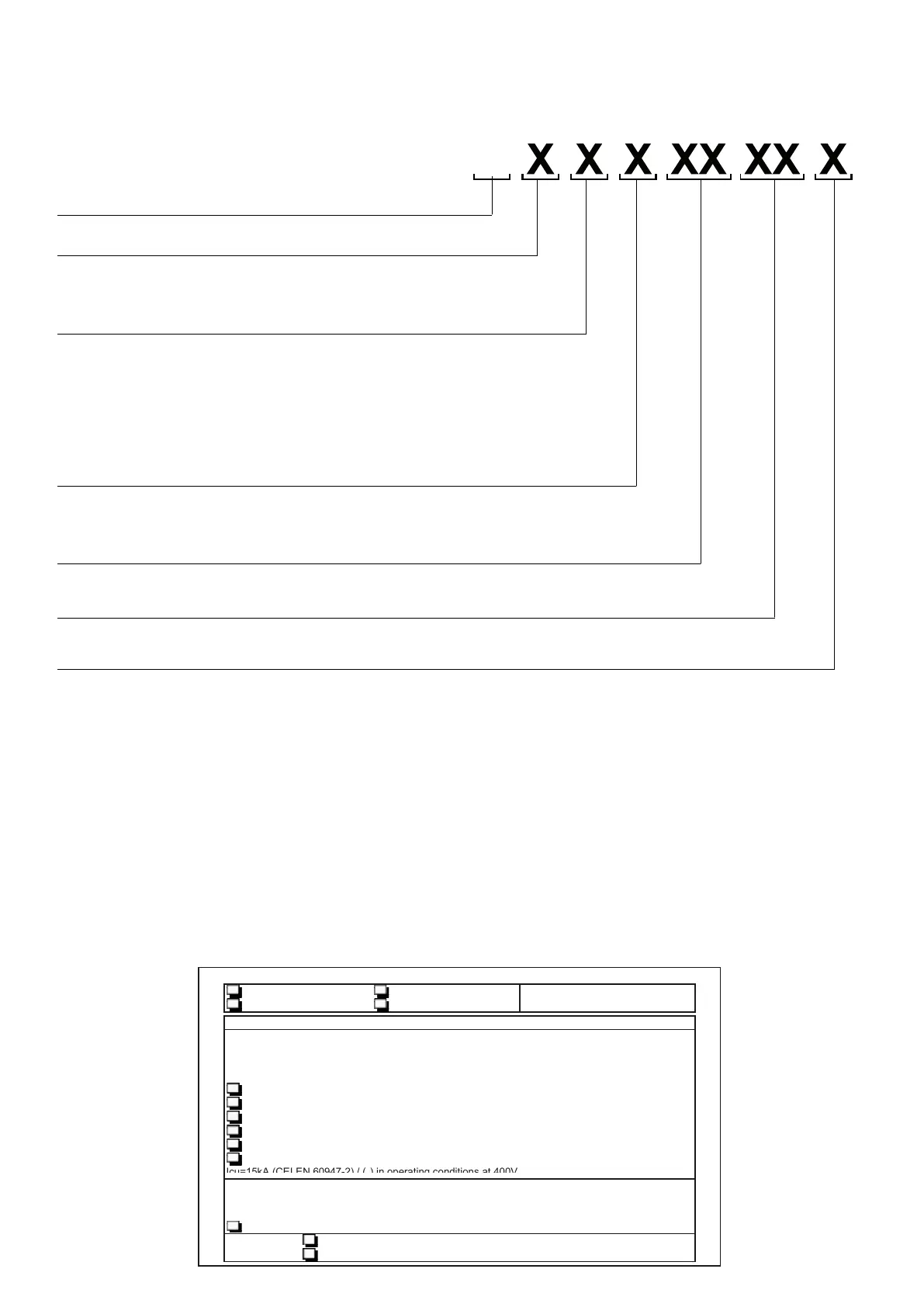

MODELS
The code which distinguishes the models is composed of 4 characters:
IDENTIFICATON PLATE
The air conditioner can be identied by the plate which is placed in the electrical panel of the machine. The model and
any eventual accessories which are installed are indicated by an “X” in the corresponding box
The plate carries the following data:
• Model and series number of the machine.
• Type of power supply.
• Power absorbed by the unit and the single components.
• Current absorbed by the unit and the single components.
• The set points of the cooling circuit pressostatic valve and safety valve.
• Type of refrigerant.
• Loading or pre-loading of each cooling circuit.
Number of compressors
Indicative cooling capacity
Power supply voltage
A = 400 V / 3Ph (+N) / 50 Hz
B = 230 V / 1 Ph / 50 Hz
FAC-SIMILE
