RT-SVX092A-EN
33
Table 4. Model weights, corner weights (lbs) and center of gravity dimensions (in.) - gas/electric (continued)
Tons Unit Model No.
Model Weights
(a)
Corner Weights
(b)
Center of Gravity (in.)
Shipping
Net A B C D
Length
Width
20 YHK240 2320 2100 754 516 337 493 50 34
25 YHK300 2370 2150 746 529 363 512 51 35
(a)
Weights are approximate. Weights do not include additional factory or field installed options/accessories. For option/accessory additional weights to be added to unit weight,
reference the following table.
(b)
Corner weights are given for information only.

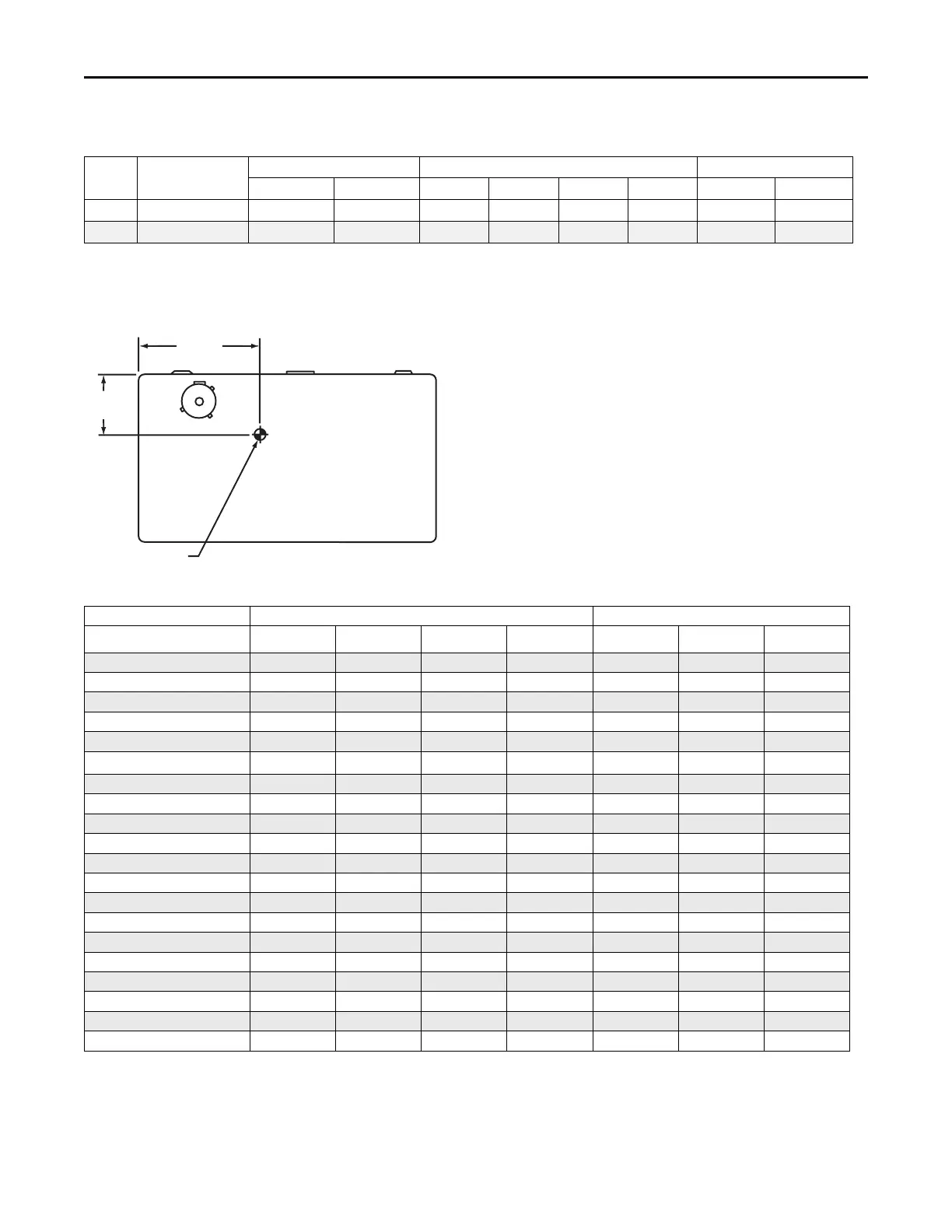

Figure 35. Corner weights
Center of Gravity
Length
Center of
Gravity
Width
Center of Gravity
A
B
C
D
Table 5. Factory installed options (FIOPS)/accessory net weights (lb)
Standard Efficiency High Efficiency
Accessory
T/YSK036-060 T/YSK072-120 T/YSK150 T/YSK180-300 T/YHK036 T/YHK048-120 T/YHK150-300
Barometric Relief 7 10 10 40 7 10 40
Economizer 26 36 36 91 26 36 91
Electric Heaters
(a)
15 44 50 75 15 44 75
Hinged Doors
10 12 12 20 10 12 20
Low Leak Economizer - Downflow 79 91 91 150 79 91 150
Low Leak Economizer -
Horizontal
130 186 186 180 130 186 180
Manual Outside Air Damper
16 26 26 15 16 26 15
Motorized Outside Air Damper
20 30 30 82 20 30 82
Oversized Motor
(b)
5 14 14 30 5 14 30
Powered Convenience Outlet 38 38 50 50 38 38 50
Powered Exhaust 40 80 80 110 40 80 110
Reheat Coil 13 16 20 33 13 16 33
Roof Curb 61 105 111 235 61 105 235
Smoke Detector, Supply
(b)
- 5 5 5 - 5 5
Smoke Detector, Return
7 7 7 5 7 7 5
Stainless Steel Heat Exchanger
(c)
4 6 6 5 4 6 5
Through-the-Base Electrical
8 13 13 10 8 13 10
Through-the-Base Gas
(c)
5 5 5 10 5 5 10
Unit Mounted Circuit Breaker 5 10 10 10 5 10 10
Unit Mounted Disconnect 5 5 5 10 5 5 10
Notes:
1. Weights for options not listed are less than 5 pounds.
2. Net weight should be added to unit weight when ordering factory-installed accessories.
3. Weights are approximate.
(a)
Only applies to T*K models.
(b)
Not available on all models.
(c)
Only applies to Y*K models.
Dimensions and Weights
