Trane TR200 - Terminal Locations: D1 H-D4 H

•
Do not wire a starting or pole-changing device
between the frequency converter and the motor
•
Connect the 3-phase motor wiring to terminals
96 (U), 97 (V), and 98 (W)
•
Earth (ground) the cable in accordance with the
instructions provided
•
Torque terminals in accordance with the
information provided in 10.3.4 Connection
Tightening Torques
•
Follow motor manufacturer wiring requirements

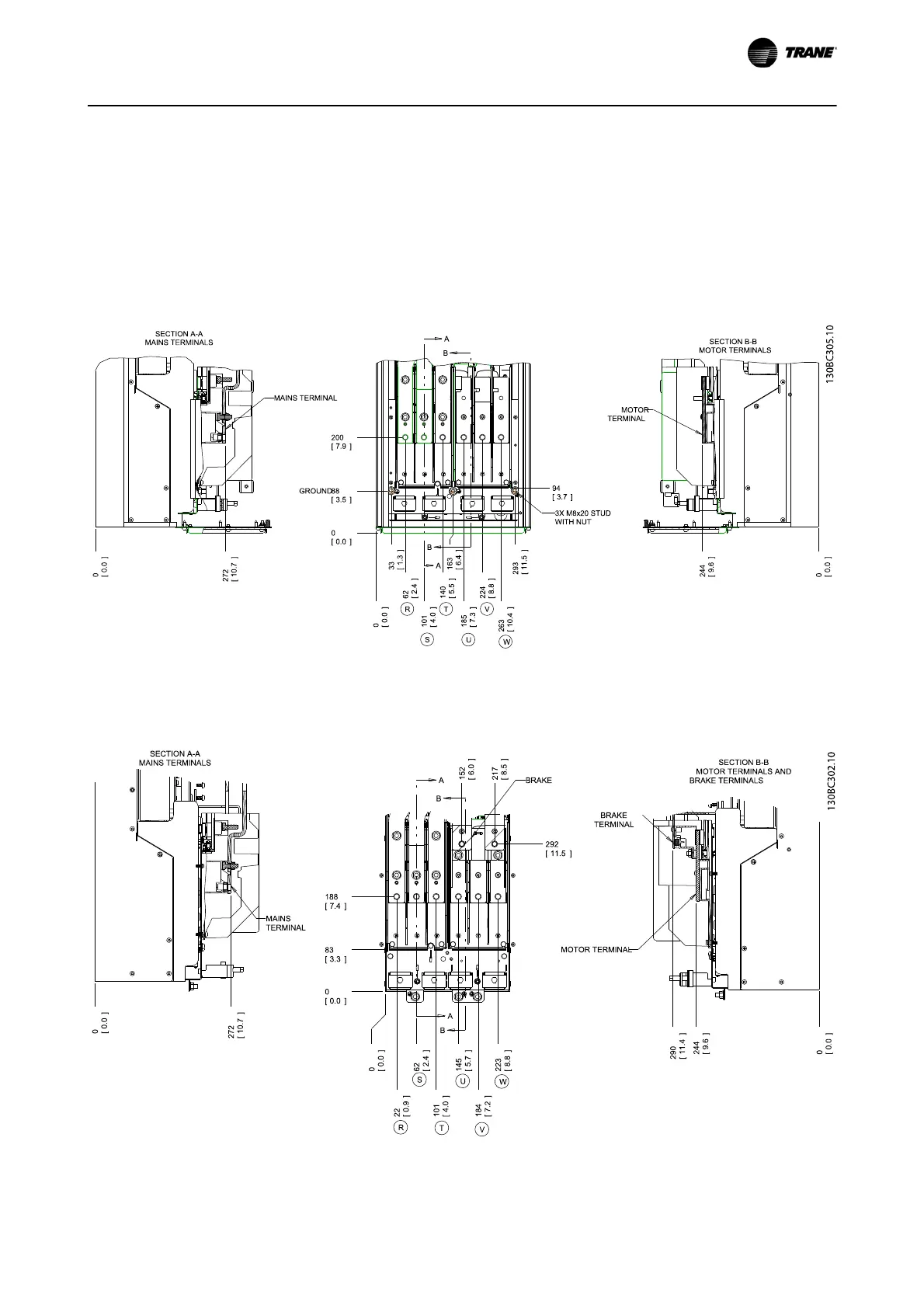

2.4.3.1 Terminal Locations: D1h-D4h
Illustration 2.7 Terminal Locations D1h
Illustration 2.8 Terminal Locations D3h
TR200 D-Frame Operating Instructions Installation
BAS-SVX54B-EN
15
