4. Press the navigation keys to scroll to
0-03 Regional Settings and press [OK].

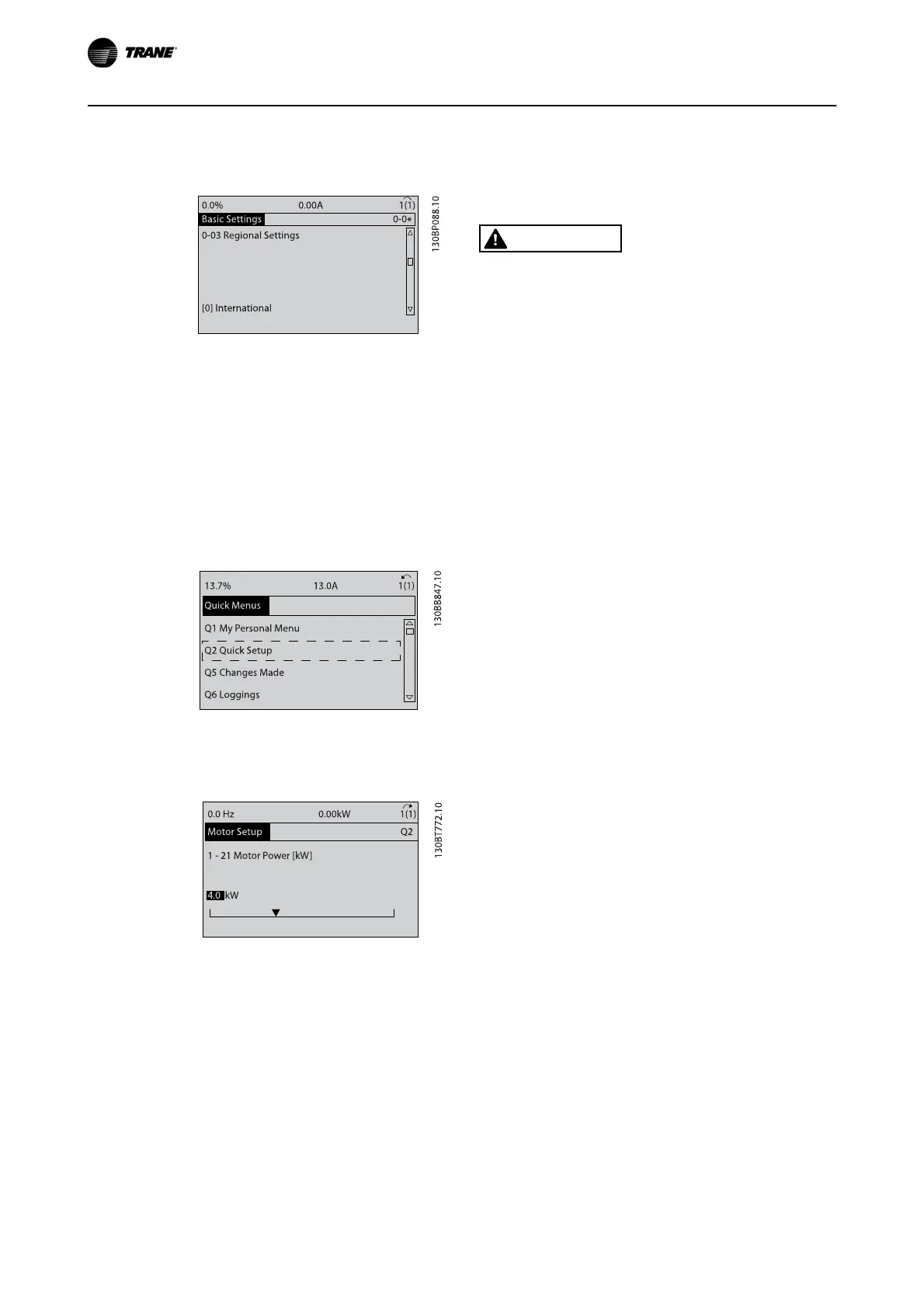

Illustration 3.3 0-03 Regional Settings
5. Press the navigation keys to select International
or North America as appropriate and press [OK].
(This changes the default settings for a number
of basic parameters. See 5.5 Parameter Menu
Structure for a complete list.)
6. Press [Quick Menu] on the LCP.
7. Press the navigation keys to scroll to parameter
group Q2 Quick Setup and press [OK].
Illustration 3.4 Q2 Quick Setup
8. Select language and press [OK].
Illustration 3.5 Select Language
9. A jumper wire should be in place between
control terminals 12 and 27. If this is the case,
leave 5-12 Terminal 27 Digital Input at factory
default. Otherwise select No Operation. For
frequency converters with an optional bypass, no
jumper wire is required.
10. 3-02 Minimum Reference
11. 3-03 Maximum Reference
12. 3-41 Ramp 1 Ramp Up Time
13. 3-42 Ramp 1 Ramp Down Time
14. 3-13 Reference Site. Linked to Hand/Auto* Local
Remote.
3.4 Local-control Test
CAUTION
MOTOR START!
Ensure that the motor, system and any attached
equipment are ready for start. It is the responsibility of the
user to ensure safe operation under any condition. Failure
to ensure that the motor, system, and any attached
equipment is ready for start could result in personal injury
or equipment damage.
NOTE
The [Hand On] key provides a local start command to the
frequency converter. The [Off] key provides the stop
function.
When operating in local mode, [
▲
] and [
▼
] increase and
decrease the speed output of the frequency converter. [◄]
and [►] move the display cursor in the numeric display.
1. Press [Hand On].
2. Accelerate the frequency converter by pressing
[
▲
] to full speed. Moving the cursor left of the
decimal point provides quicker input changes.
3. Note any acceleration problems.
4. Press [Off].
5. Note any deceleration problems.
If acceleration problems were encountered
•
If warnings or alarms occur, see 8 Warnings and
Alarms
•
Check that motor data is entered correctly
•
Increase the ramp-up time accel time in
3-41 Ramp 1 Ramp Up Time
•
Increase current limit in 4-18 Current Limit
•
Increase torque limit in 4-16 Torque Limit Motor
Mode
If deceleration problems were encountered
•
If warnings or alarms occur, see 8 Warnings and
Alarms.
•
Check that motor data is entered correctly.
•
Increase the ramp-down time decel time in
3-42 Ramp 1 Ramp Down Time.
•
Enable overvoltage control in 2-17 Over-voltage
Control.
See 4.1.1 Local Control Panel for resetting the frequency
converter after a trip.
