4.1.2 Setting LCP Display Values
The display area is activated when the frequency converter
receives power from mains voltage, a DC bus terminal, or
an external 24 V DC supply.
The information displayed on the LCP can be customized
for user application.
•
Each display readout has a parameter associated
with it
•
Options are selected in the quick menu Q3-13
Display Settings
•
Display 2 has an alternate larger display option
•
The frequency converter status at the bottom line
of the display is generated automatically and is
not selectable

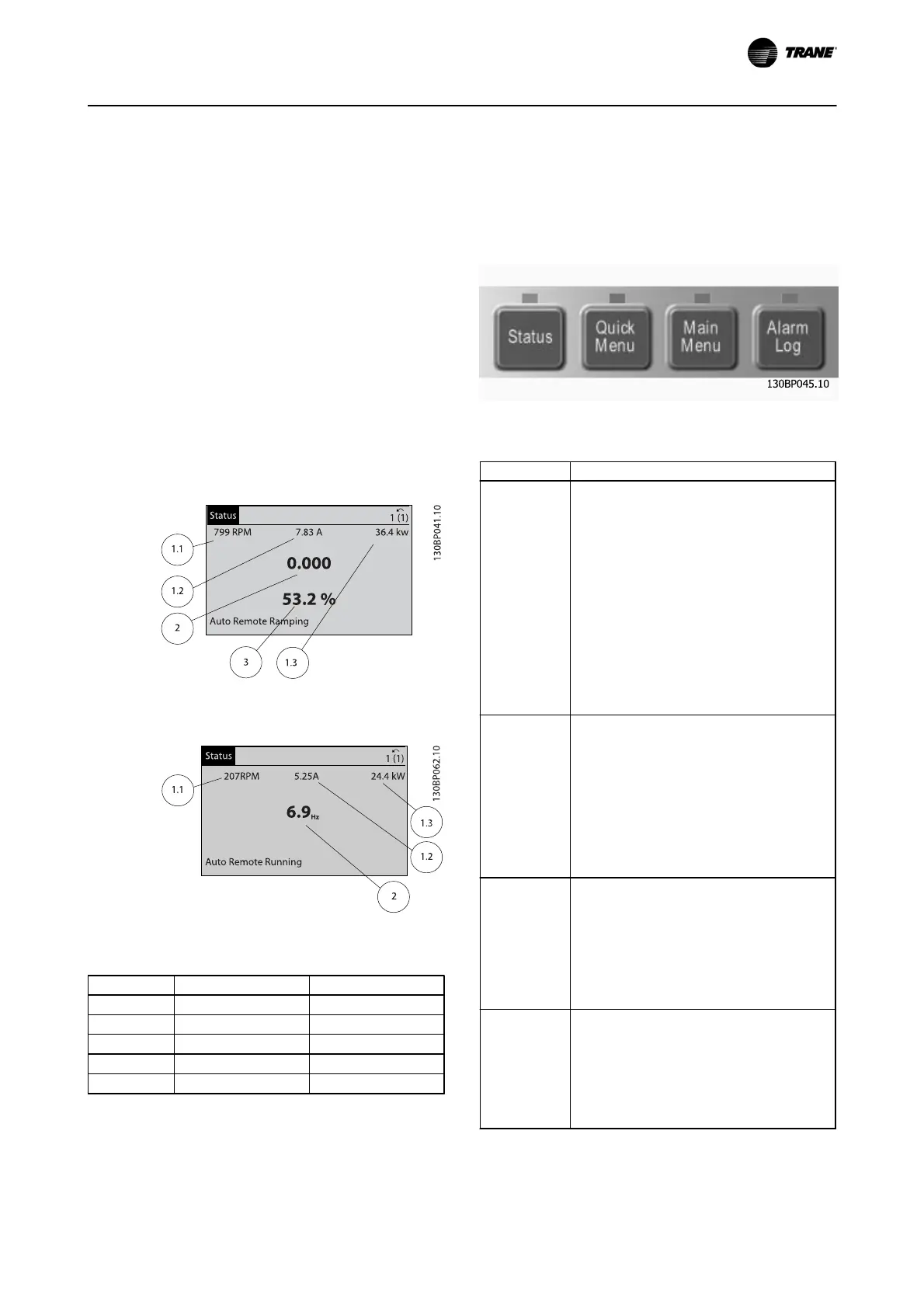

Illustration 4.2 Display Readouts
Illustration 4.3 Display Readouts
Display Parameter number Default setting
1.1 0-20 Motor RPMs
1.2 0-21 Motor current
1.3 0-22 Motor power (kW)
2 0-23 Motor frequency
3 0-24 Reference in percent
Table 4.1 Legend to Illustration 4.2 and Illustration 4.3
4.1.3 Display Menu Keys
Menu keys are used for menu access for parameter set-up,
toggling through status display modes during normal
operation, and viewing fault log data.
Illustration 4.4 Menu Keys
Key Function
Status Shows operational information.
•
In Auto mode, press to toggle between
status read-out displays
•
Press repeatedly to scroll through each
status display
•
Press [Status] plus [
▲
] or [
▼
] to adjust the
display brightness
•
The symbol in the upper right corner of the
display shows the direction of motor
rotation and which set-up is active. This is
not programmable.
Quick Menu Allows access to programming parameters for
initial set up instructions and many detailed
application instructions.
•
Press to access Q2 Quick Setup for
sequenced instructions to program the basic
frequency controller set up
•
Follow the sequence of parameters as
presented for the function set up
Main Menu Allows access to all programming parameters.
•
Press twice to access top-level index
•
Press once to return to the last location
accessed
•
Press to enter a parameter number for
direct access to that parameter
Alarm Log Displays a list of current warnings, the last 10
alarms, and the maintenance log.
•
For details about the frequency converter
before it entered the alarm mode, select the
alarm number using the navigation keys
and press [OK].
Table 4.2 Function Description Menu Keys
