8000 SERIES OPERATION MANUAL TRANSMILLE LTD.
TRANSMILLE LTD. PAGE 12
Setting and checking the Line Voltage.
WARNING
THE LINE POWER CORD MUST HAVE AN EARTH CONDUCTOR TO AVOID RISK
OF SHOCK. THIS INSTRUMENT MUST BE CORRECTLY EARTHED.
The multimeter has been designed to work from either 100-120 Volt line supply or 200 - 240 Volt line
supply. Check Supply voltage as marked on the rear panel before connecting to power line.
Connecting the multimeter to the wrong supply will cause internal damage to the instrument. To
change the line voltage it is necessary to remove the rear panel and rewire the transformer. The
multimeter will have been shipped wired for 110V operation for USA or 230V for Europe.

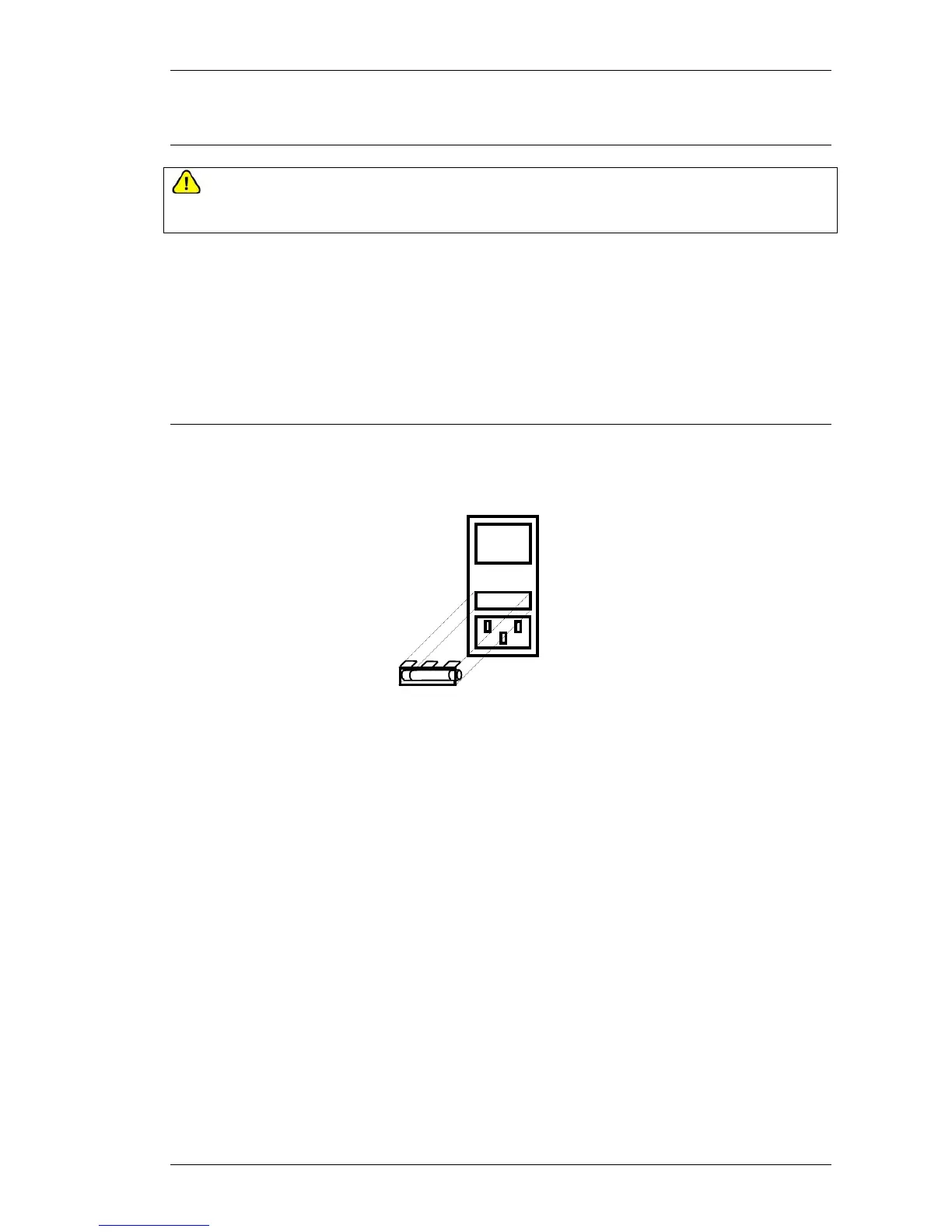

Power Line Inlet Fuse and rating
The Power line inlet fuse is located directly above the power inlet. The correct fuse for is
3.15A Anti-surge for 230V operation and 5A Anti surge for 110V Operation
FUSE
To Next Page
