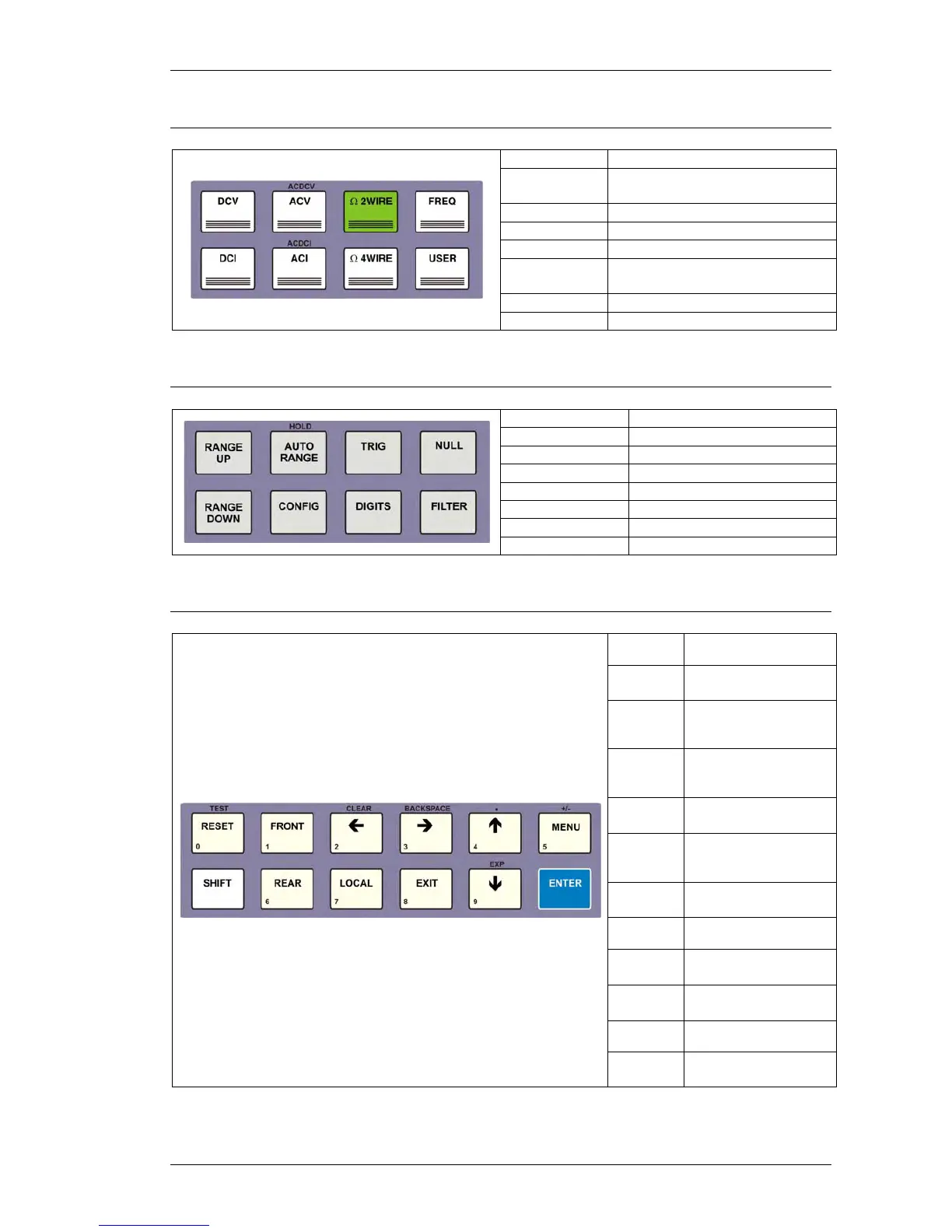

Function Keys
DCV DC Voltage
ACV
ACDCV
AC Voltage
ACDC Voltage (Coupled)
Ω 2WIRE
2 Wire Resistance
FREQ Frequency
DCI DC Current
ACI
ACDCI
AC Current
ACDC Current (Coupled)
Ω 4WIRE
4 Wire Resistance
USER User Defined Function
Range & Readback Controls
RANGE UP Select Next Range Up
RANGE DOWN Select Next Range Down
AUTO RANGE Set Auto Range Mode
CONFIG Enter Configuration Menu
TRIG Select Trigger Setting
DIGITS Select Number of Digits
NULL Set Null Point
FILTER Select Filter Setting
Input & Menu Controls
RESET
0
Reset Multimeter /
Numeric Entry 0
SHIFT
Select Button Shift
Function
FRONT
1
Activate Front
Inputs
Numeric Entry 1
REAR
6
Activate Rear
Inputs
Numeric Entry 6

2
Menu Left Select
Numeric Entry 2
LOCAL
7
Set to Local
Control
Numeric Entry 7

3
Menu Right Select
Numeric Entry 3
EXIT
8
Exit Menu
Numeric Entry 8

4
Menu Up Select
Numeric Entry 4

9
Menu Down Select
Numeric Entry 9
MENU
5
Enter Menu
Numeric Entry 5
ENTER Confirm Menu
Select
