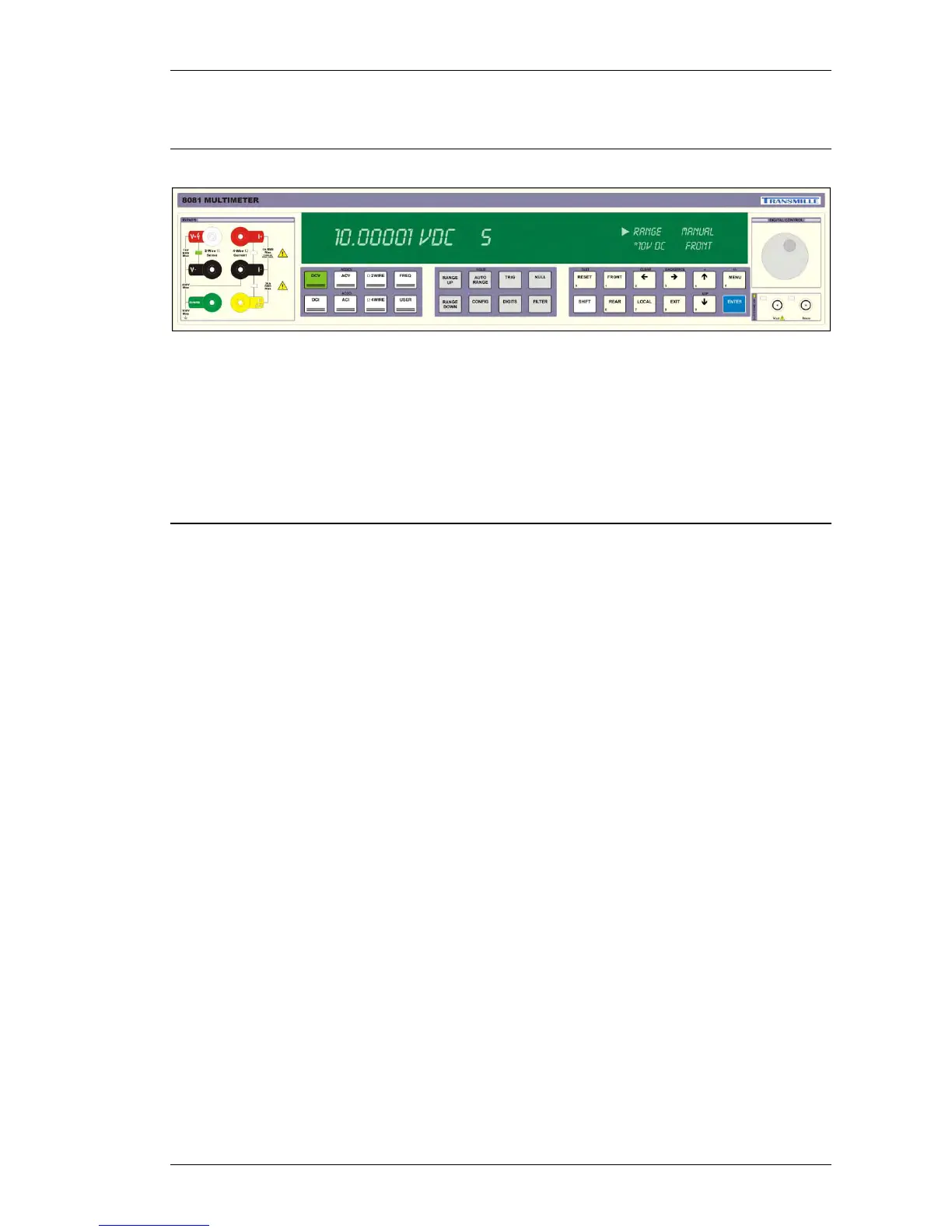

8000 Series Multimeter Introduction
The 8000 series range of multimeters offer maximised capabilities from a highly accurate 4ppm /
9ppm advanced design. Utilising the precision electronics to their fullest extent, the 8000 Series
provides high performance core functionality combined with advanced operation modes in a single
instrument.
Main Features
AC/DC Volts to 1025V
AC/DC Current to 30 Amps
AC/DC Low Current Measurement to 0.1pA (8081)
2 and 4 Wire Resistance to 1 GOhm (8081)
High Resistance Measurement to 1 TOhm (8081)
Frequency
Temperature Measurement (PRT / ITS90 / SPRT Co-efficient storage modes) (8081)
Pressure Module Support : Measurement to 100Bar (8081)
RS232 Serial Interface
USB Interface
GPIB (IEEE488) Interface
Ethernet (LAN) Interface
