TRENDnet User’s Guide
TEW-828DRU
Front View
No
Item
Description
1
Power/WPS LED
Solid Blue – Device is on
Blinking Blue – WPS is activated.
Off – No power
2
Internet Port LED
Solid Blue – Internet port is physically connected
Blinking Blue – Data Transmit/Receive.
Off – Internet port is physically disconnected.
3
LAN Ports 1-4 LEDs
Solid Blue – LAN port is physically connected
Blinking Blue – Data Transmit/Receive.
Off – LAN port is physically disconnected.
4
2.4GHz/5GHz
1
/5GHz
2
Wireless LED
Solid Blue – 2.4GHz/5GHz
1
/5GHz
2
radio is on.
Blinking Blue – Data Transmit/Receive.
Off – 2.4GHz/5GHz
1
/5GHz
2
radio is off.
5
USB LED
Solid Blue – USB device is connected.
Blinking Blue – Data Transmit/Receive.
Off – No USB device connected.

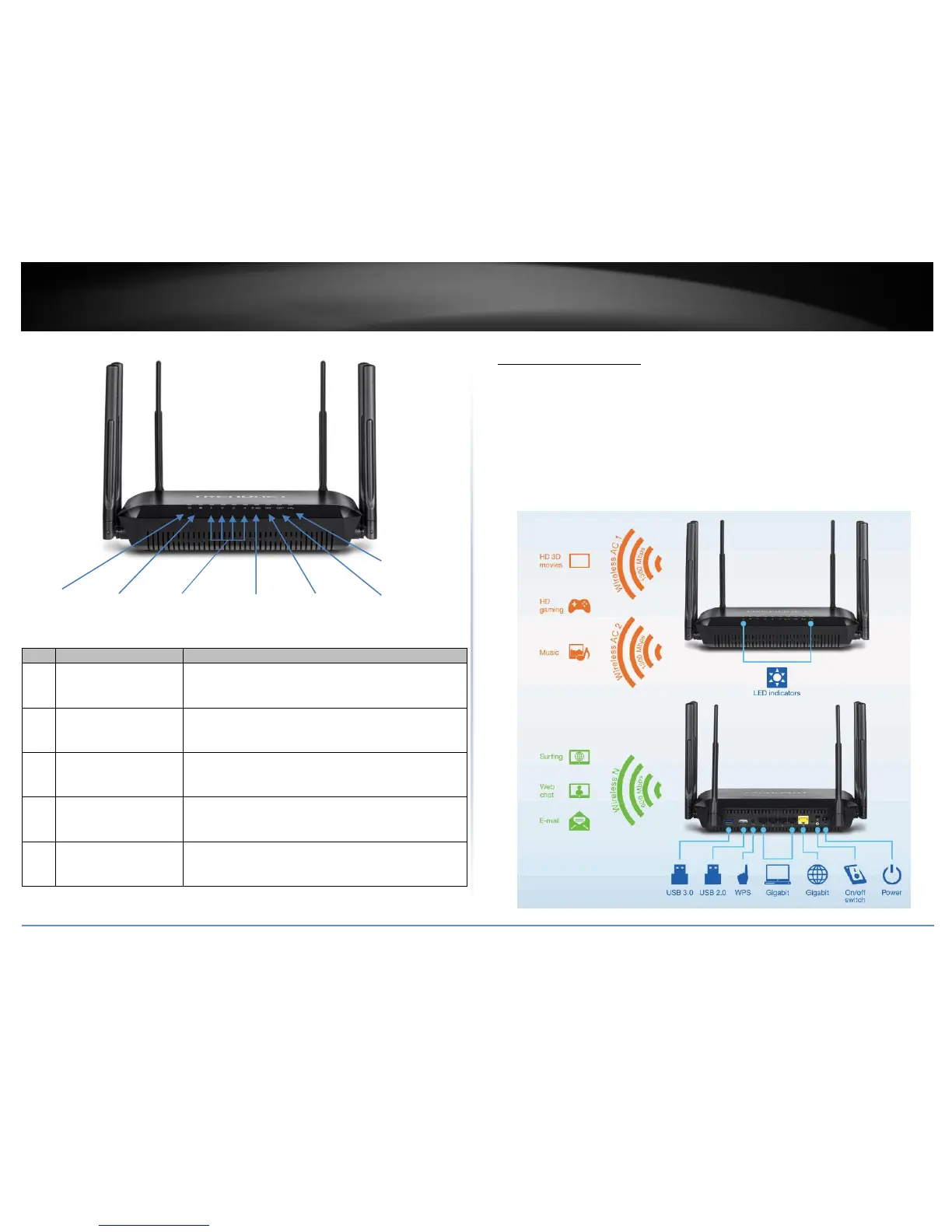

Application Diagram
The router is installed near the modem (typically supplied by your ISP “Internet Service Provider”)
and physically connected to it from the router’s Internet port to the modem’s network port which
connects to the Internet. 2.4GHz wireless signals from the router are broadcasted to wireless
clients such as laptops (with wireless capability) and the less congested 5GHz wireless signals from
the router are broadcasted to other wireless client devices such as TVs, game consoles, or media
bridges thereby providing Internet access for all wireless client devices. Using the Smart Connect
feature, the two 5GHz radios improve bandwidth congestion by automatically assigning higher
speed capable 5GHz wireless devices to one radio and slower legacy 5GHz wireless devices to the
other.
Power/WPS
Internet
Port LED
LAN
Ports 1-4 LEDs
LED
2.4GHz
Wireless LED
5GHz
1
Wireless LED
5GHz
2
Wireless LED
USB LED

TRENDnet TEW-828DRU Specifications

General

Modulation	16-QAM, 64-QAM, 256-QAM, CCK, DBPSK, DPSK, DQPSK, OFDM
Wi-Fi band	Tri-band (2.4 GHz / 5 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	3200 Mbit/s
WLAN data transfer rate (first band)	1300 Mbit/s
WLAN data transfer rate (third band)	600 Mbit/s
DSL WAN	No
Ethernet WAN	Yes
Certification	FCC
Processor cores	2
Processor frequency	1000 MHz
VPN support	PPTP/L2TP
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Security algorithms	WEP, WPA-PSK, WPA2-PSK, WPA2-RADIUS
Authentication method	RADIUS
Product type	Tabletop router
Product color	Black
Media access protocol	CSMA/CA w / ACK
Antenna gain level (max)	5 dBi
Output current	3.5 A
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Operating temperature (T-T)	0 - 40 °C
Cables included	LAN (RJ-45)

Weight and Dimensions

Depth	170 mm
Width	240 mm
Height	45 mm
