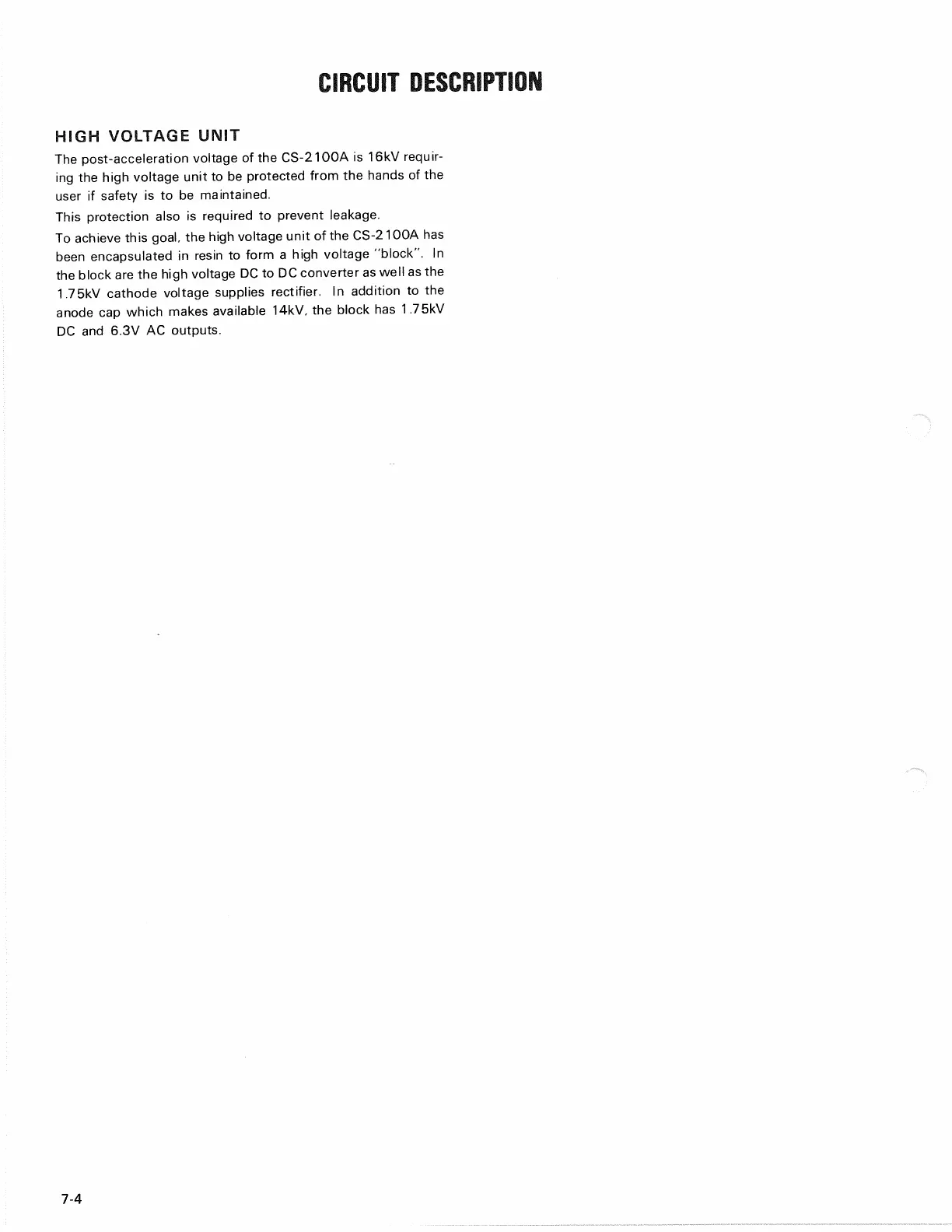

CIRCUIT
OESCRlPTiOl
HIGH VOLTAGE UNIT
The post-acceleration voltage of the CS-2100A is 16kV requir-
ing the high voltage unit to be protected from the hands of the
user if safety is to be maintained.
This protection also is required to prevent leakage.
To achieve this
goal,
the high voltage unit of the CS-2100A has
been encapsulated in resin to form a high voltage "block". In
the block are the high voltage DC to DC converter as well as the
1.75kV
cathode voltage supplies rectifier. In addition to the
anode cap which makes available 14kV, the block has
1.75kV
DC and 6.3V AC outputs.
7-4
