1.7 EXTERIOR FEATURE IDENTIFICATION (Typical)
Composite model shown for illustration purposes only. Actual locations of features depends on coach
model and options.
*CAUTION
Be careful. These features may become hot
while water heater or furnace are in use.

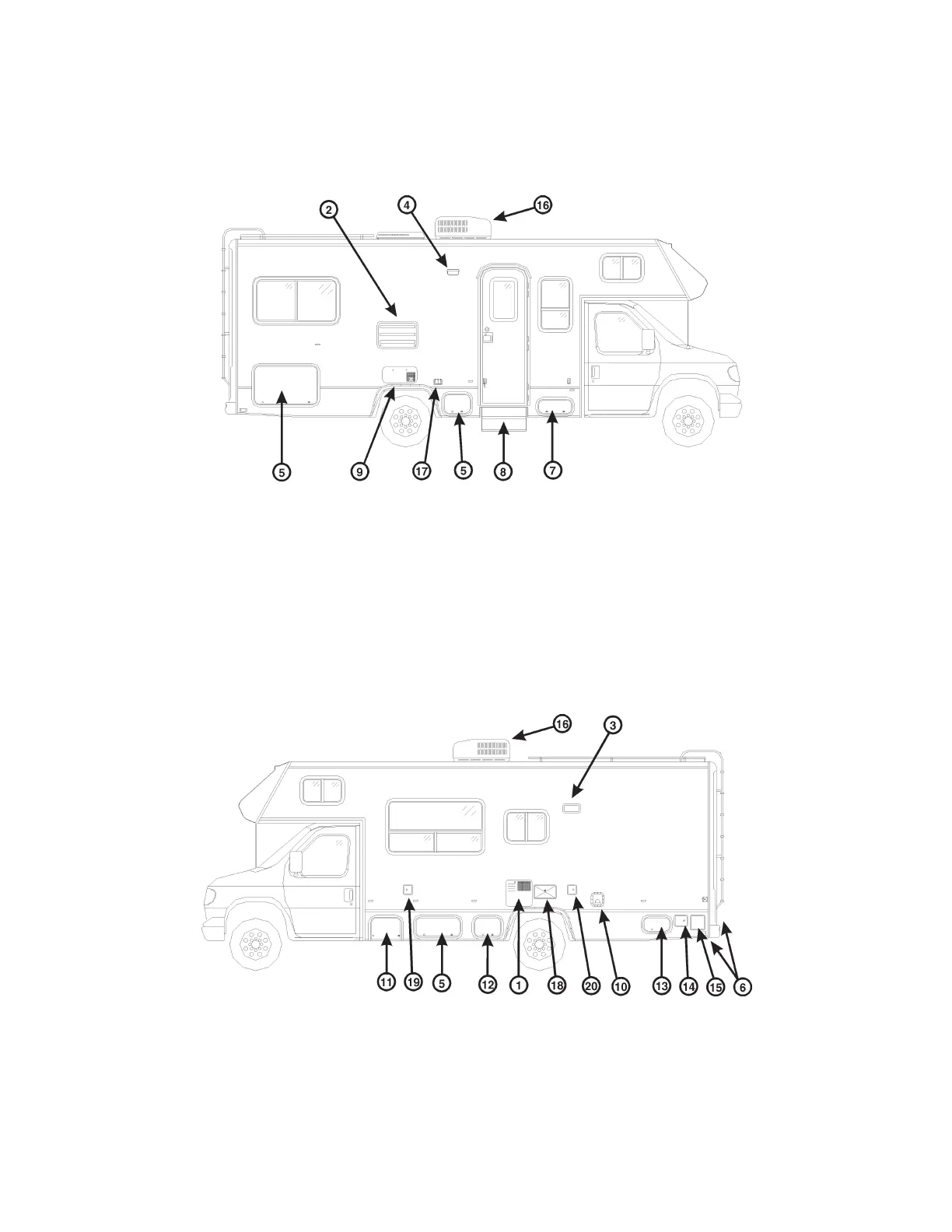

EXTERIOR IDENTIFICATION (LEFT)
EXTERIOR IDENTIFICATION (RIGHT)
1. Water Heater Service Access. *
2. Refrigerator Service Access.
3. Range Hood Vent.
4. Porch Light.
5. Generator Compartment.
6. Spare Tire.
7. Propane Tank.
8. Entrance Step.
9. Furnace Service Access. *
10. Fuel Tank Filler.
11. Battery Compartment.
12. Storage Compartment.
13. Holding Tank Drain Valves.
14. Sewer Hose Storage.
15. Shore Power Hookup.
16. Roof Air Conditioner.
17. Exterior 120 Volt Plug in.
18. Exterior Shower.
19. Fresh Water Tank Filler
20. City Water Hook-up
CLASS C & B
+
MOTORHOME
NOTE
Some equipment shown may be optional.
