13-6
CLASS C & B
+
MOTORHOME

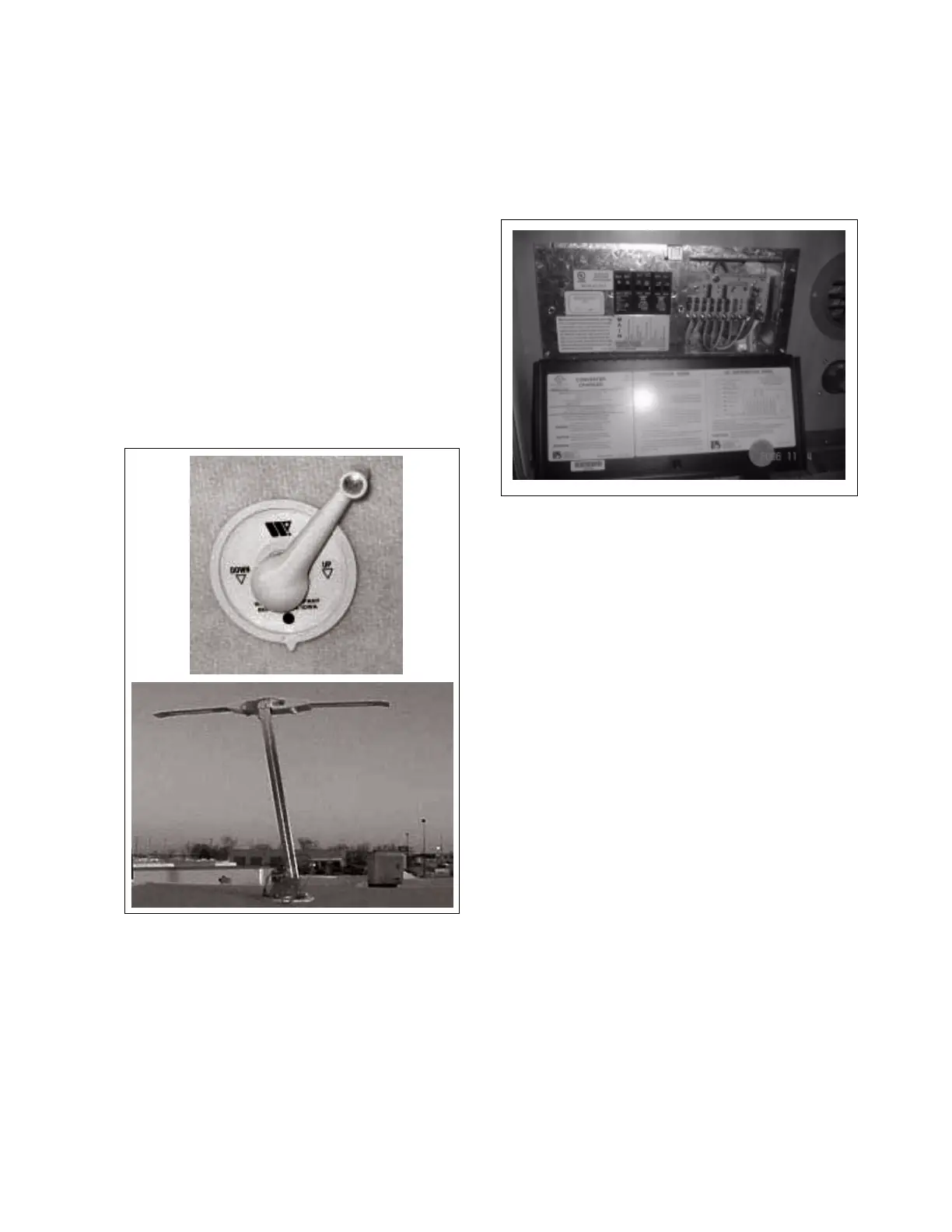

13.8 TV ANTENNA
The TV antenna on your motorhome is easily raised,
rotated through 360 degrees and lowered from inside
the motorhome by turning the crank or rotating
knob.
1. To raise the antenna turn the elevating crank
(clockwise) in "UP" direction about 13 turns or
until resistance is noticed.
2. To rotate the antenna make sure the antenna is
in the "UP" position. Pull down the ceiling plate
with both hands and rotate for best picture.
3. To lower the antenna rotate it until the pointer
on the directional handle aligns with the poointer
on the ceiling plate. Turn the elevating crank
(counter-clockwise) in "DOWN" direction about
13 turns or until resistance is noted. Antenna is
now locked in travel position.
ANTENNA
13.9 DC-AC ELECTRICAL
VOLTAGE CONVERTER
See the instruction manual in your Owner's
Information package for details.
CONVERTER
