4.12.4 WATER SYSTEM ACCESS
The water system is accessed on the driver's side of the motorhome. Always park this side next to the
campground utilities for ease of hook-up.

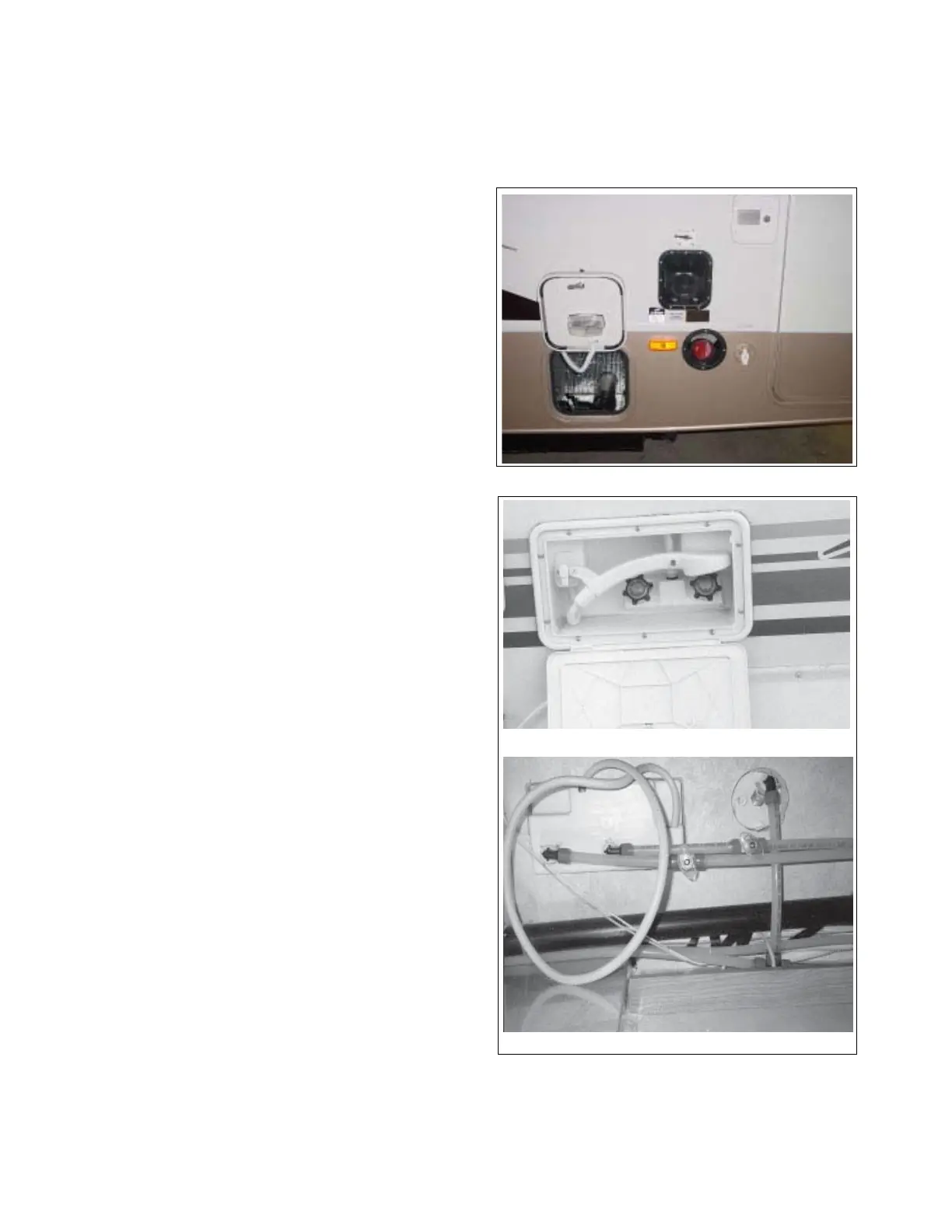

1. System Access:
a. Black Water Tank Flush Fitting.
b. Gravity Water Tank Fill Fitting.
c. Discharge Compartment (Drain and
Grey Water Valve).
2. Auxiliary Shower (Optional):
a. Hot Water:
This standard water tap controls the flow of
hot water to the shower head. Turn clock-
wise to turn off and counterclockwise to
turn on.
b. Cold Water:
This standard water tap controls the flow of
cold water to the shower head. Turn
clockwise to turn off and counterclockwise
to turn on.
c. Shower Head:
This standard flexible hose shower system
is mounted in the compartment. Turn the
handle and lift the head to use it. Turn the
collar on the head to restrict the water flow
foruse as a water saver.
d. Shut-Off Valves:
There are 2 shut-off valves located behind
the exterior shower accessible from the
inside of the unit. Turn clockwise to shut off
the water supply and turn counterclockwise
to open it.
CLASS C & B
+
MOTORHOME
SYSTEM ACCESS
Compartment
Shut-Off Valves
AUXILIARY SHOWER
a
b
c
