4 CONTROLS
It is the responsibility of each owner, operator, driver or user to be familiar with the positions, functions and
settings of all controls. Each new person should be trained in all aspects of motorhome operation prior to
starting. Review this section as often as required to understand the controls. Contact your dealer if you
have any other questions.
4.1 CHASSIS
CONTROLS

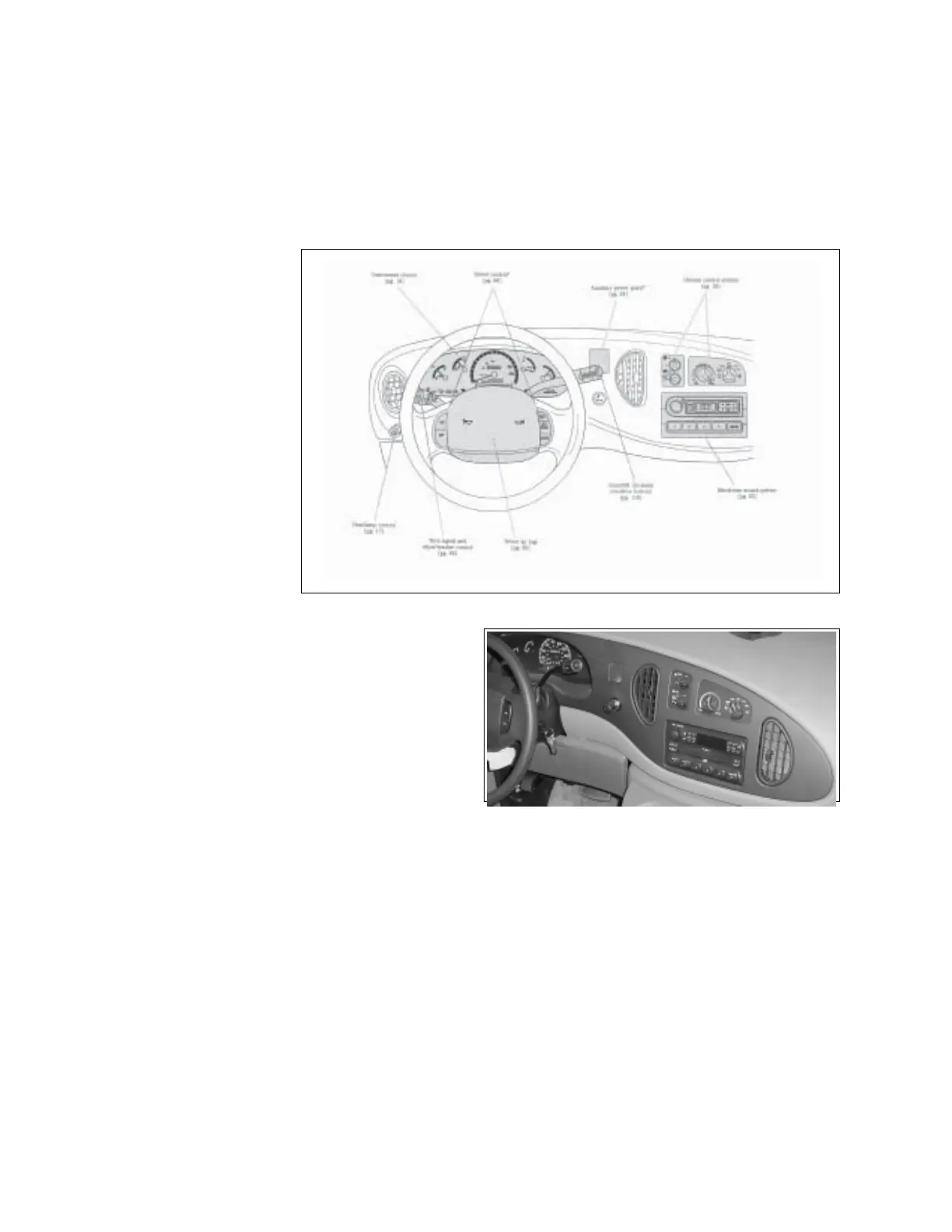

4.2 DASH CONTROLS
1. Right Side:
a. Ignition Key:
This standard automotive 4 position
rotary switch controls the ignition and
electrical system for the engine and
control functions.
• Turn to the most
counterclockwise
position to turn the power on
to the auxiliary control func-
tions.
• Turn to the first clockwise
detent for OFF where the
engine and all electrical
power has been turned off to
the instruments.
• Turn to the second clockwise detent
for RUN. This is the normal engine
running position.
• Turn against the last spring loaded
detent to engage the starter. Release
the key when the engine starts and it
will return to the run position.
Refer to the manual
provided in the
information package
from the chassis
manufacturer for details
on the standard
automotive, steering
column, transmission
and instrument cluster
controls, lights and
gauges.
CLASS C & B
+
MOTORHOME
b. Gear Shift:
This lever controls the selection of the
transmission gear. Depress the brake and
move to the desired gear.
c. Power Outlet:
This panel provides 12 volt power for any
auxiliary equipment.
d. Cigarette Lighter:
This is a standard automotive cigarette
lighter.
RIGHT SIDE
INSTRUMENTS
a.
b.
c.
d.
