4-13
4.12 WATER SYSTEM
The motorhome water system consists of a fresh,
grey and black water system plus a water heater
and plumbing. See Section 12 for operating
instructions. Be sure to review, understand and
follow all operating instructions for the system.
4.12.1 WATER HEATER
The water heater is designed to operate using LP
gas or 120-volt electricity.
Caution
Both electric and gas power sources require
water in the tank before stating to heat water
or the element or tank will burn out.
CLASS C & B
+
MOTORHOME

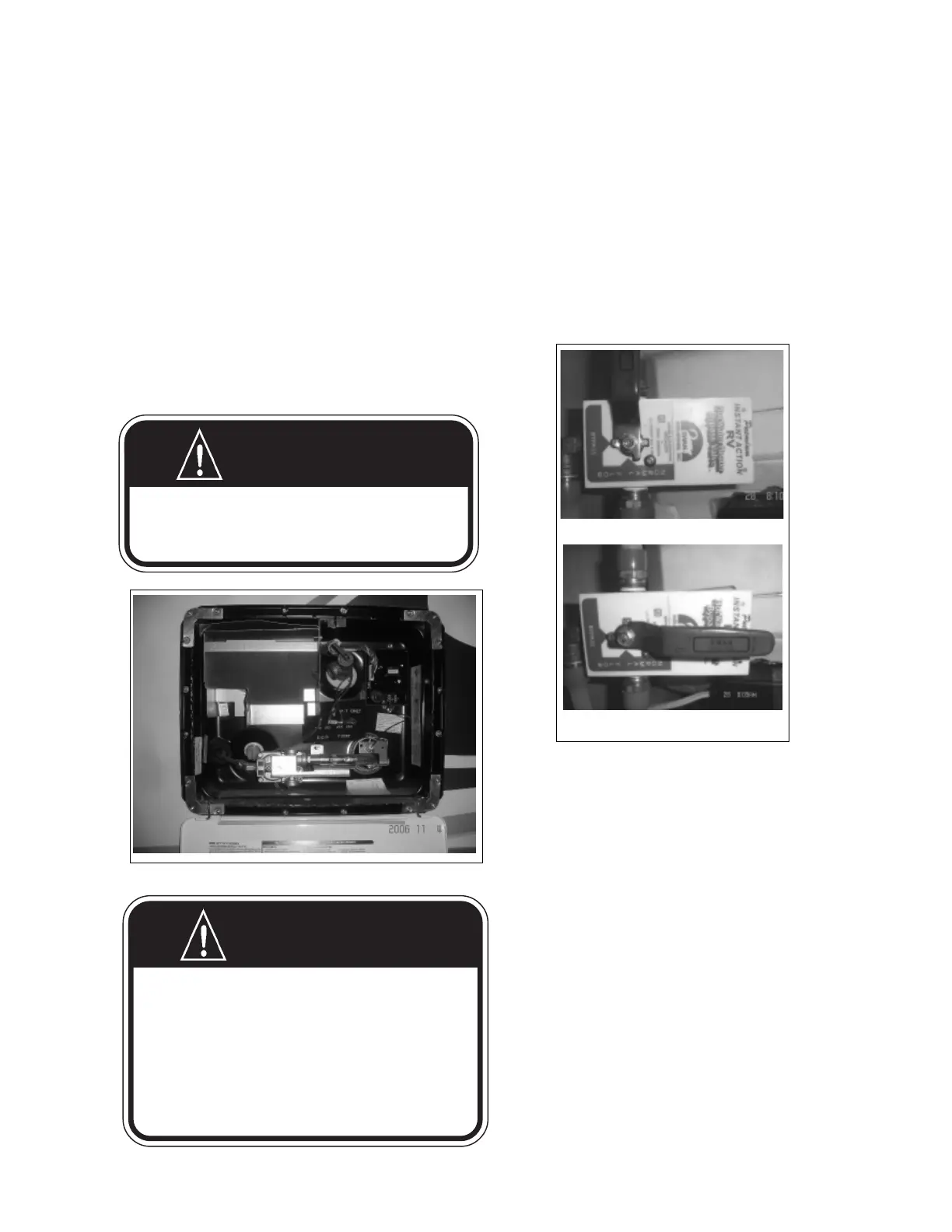

Fig. 4-17 WATER HEATER
IF YOU SMELL GAS
1. Extinguish any open flame, pilot lights and all smoking
material.
2. Do not touch electrical switches.
3. Shut off the gas supply at the container valve(s) or gas
supply connection.
4. Open doors and other ventilating openings.
5. Leave the area until the odour clears.
6. Have the gas system checked and leakage source corrected
before using again.
WARNING
Do not touch the heater canister and burner
exhaust vent. These components are
extremely hot and contact can cause
serious burns.
WARNING
4.12.2 WATER HEATER BYPASS
The water heater is equipped with a valve that sets
its plumbing circuit for normal or winterize. The
valve is accessed from inside the motorhome. The
location can vary depending on your specific model.
Watch the pointer on the pivot to determine the valve
setting.
1. Normal Operation
2. Bypass Operation
Refer to Section 17 for details on winterizing procedure
for cold temperature storage.
WATER HEATER BYPASS VALVE
1. Normal Position
2. Bypass Position
4.12.3 WATER PUMP
The water system is equipped with a 12-volt pump that
pressurizes the system and moves water to where it
is required. The water pump rocker switch is located
on the Monitor panel. Depress the top of the rocker
switch to turn the pump on and the bottom of the
switch to turn it off.
It is recommended that the pump switch be turned off
whenever leaving the motorhome for any period of time
or while driving. A slow leak in a faucet or connection
could drain both the water tank and the battery.
