4.10 COMFORT CONTROL
CENTER
A comfort control center is located in the
motorhome (living area or bedroom) to control the
heating and cooling systems in the vehicle. The
control center is customized to the specifications of
your vehicle and will control one or more furnaces
and air conditioners.
This liquid crystal display shows the operator the
specific operating parameters of the comfort
appliances. The display will change to reflect the
varying operating selections by the user. For more
information see the Operating Instructions in the
Owner's Information Package.

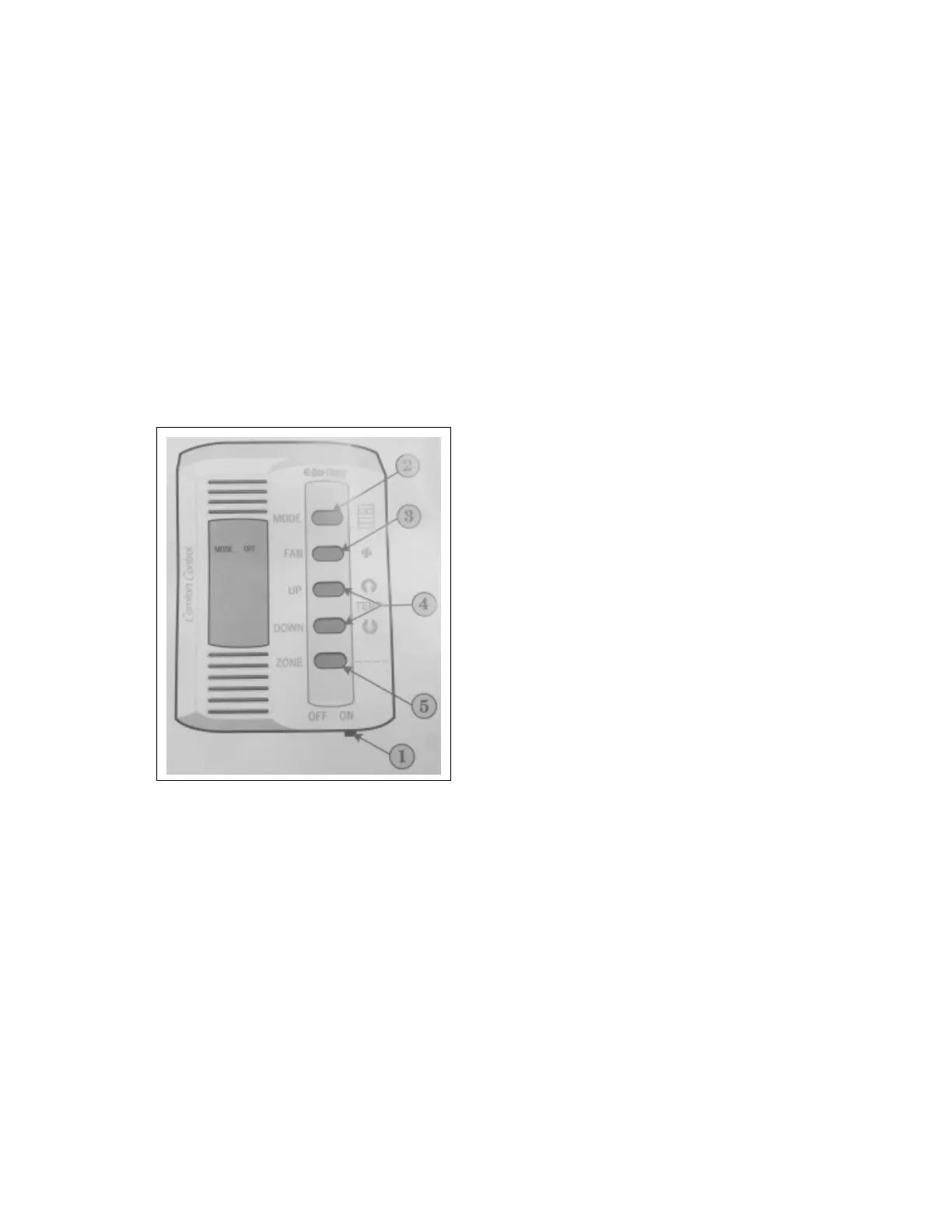

The control functions include:
1. The Power Switch:
Move the power switch right to switch it 'on' and
to the left to switch it 'off'.
2 Mode Selector Button:
This push button switch controls the selection
of the furnace, air conditioner or the heat strip.
Depress the switch momentarily to select the
desired system operating mode. Depress the
switch again momentarily to move to the next
selection. The mode selected will show in the
Liquid Crystal Display.
Thermostat
3. Fan Speeds:
This push button switch controls the settings for
fan speed. Depress the switch momentarily to
step the fan through each setting from low,
medium, high and auto. Depress the switch
again momentarily to move to the next setting.
The speed selection will show in the Liquid
Crystal Display.
4. Temperature Selector Buttons up and
Down:
These push buttons raise or lower the selected
system temperature. Continue to depress the
switch momentarily to change the temperature
to the desired setting. The selected temperature
will show in the Liquid Crystal Display.
5. Zone Selector Button:
This push button switch selects the individual
zones and stages for the system if your vehicle
is equipped with more than one zone. Depress
the switch momentarily to select the desired
zone. The selected zone will show in the Liquid
Crystal Display.
