1.7 EXTERIOR FEATURE IDENTIFICATION (Typical)
Composite model shown for illustration purposes only. Actual locations of features depends on coach model and op-
tions.

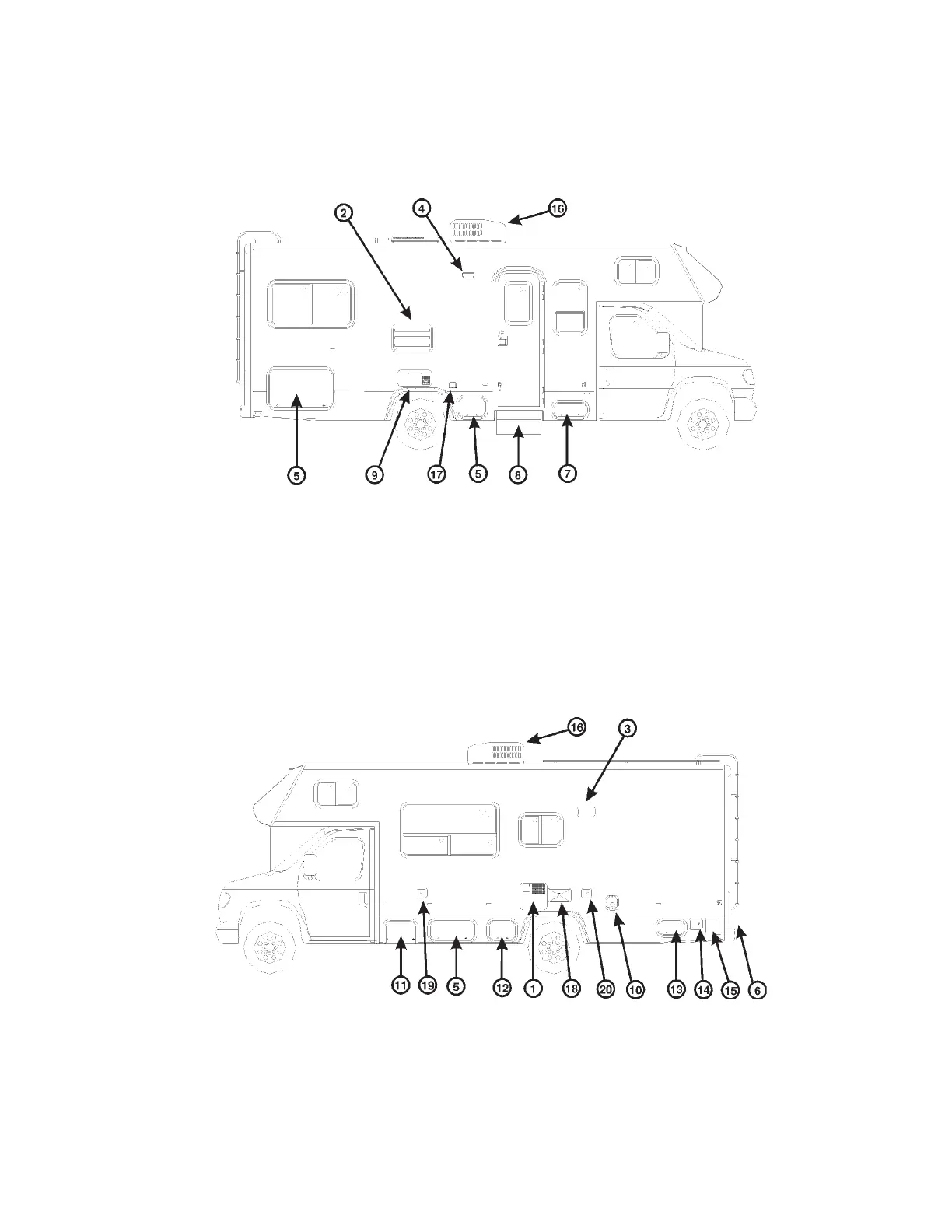

EXTERIOR IDENTIFICATION (RIGHT SIDE)
1. Water Heater Service Access * 11. Battery Compartment
2. Refrigerator Service Access 12. Storage Compartment
3. Range Hood Vent 13. Holding Tank Drain Valves
4. Porch Light 14. Sewer Hose Storage
5. Generator Compartment 15. Shore Power Hookup
6. Spare Tire 16. Roof Air Conditioner
7. Propane Tank 17. Exterior 120 Volt Plug in
8. Entrance Step 18. Exterior Shower
9. Furnace Service Access * 19. Fresh Water Tank Filler
10. Fuel Tank Filler 20. City Water Hook-up
EXTERIOR IDENTIFICATION (LEFT SIDE)
NOTE: Some equipment shown may be optional.
*CAUTION: Be careful. These features may become hot while water heater or furnace are in use.
