4.8 POWER ROOF VENT
4.8.1 POWER VENTS
The motorhome is equipped with a powered roof vent. Use the vent fan in conjunctions with an open window to provide
a ow of fresh air into the unit.
1. Vent Hood Control: Turn the knob to raise or lower the vent hood to the desired position
2. Fan Control: Depress this push button switch to turn on the fan and depress it again to turn it o again.
4.8.2 THERMOSTATICALLY CONTROLLED FAN (Optional)
Use these control switches:
1. In/Out :
This rocker switch controls the rotational direction of the fan in the vent. Depress the IN side of the switch for the fan
to draw air into the coach. Depress the OUT side for the fan to blow air out. The fan must always come to a complete
stop before changing directions.
2. ON/OFF Fan Speed:
This 4 position rotary switch controls the power to the fan and the fan speed. Turn the switch to its most counterclockwise
position to turn the fan o. Turn the switch to its rst, second or third clockwise detents (Position 1, 2 and 3 respectively)
to set the fan speeds at low, medium or high. The roof vent must be open at least 3 inches or the internal safety switch
will prevent the fan from coming on.
3. Thermostat:
This rotary switch controls the set point for the system thermostat. Turn the knob to the desired position. Moving the
pointer to the red portion of the scale will increase the temperature of the set point for the vent fan to come on. To
operate, the vent must be open and fan switch turned to either 'in' or 'out'.
4. Vent Height:
This knob controls the position of the vent hood. Turn the knob clockwise to pull the hood down and close it. Turn
counterclockwise to raise or open the hood.

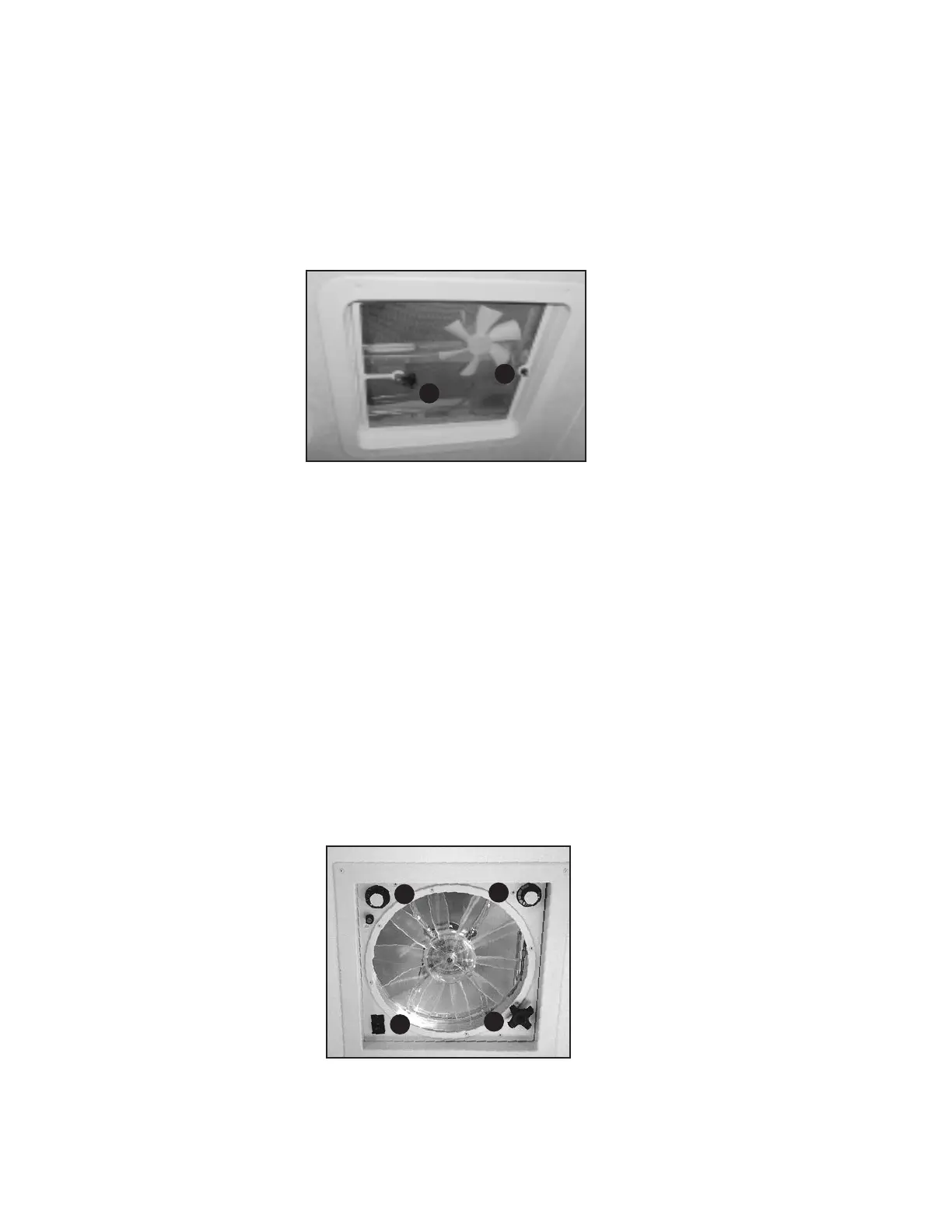

POWERED ROOF VENT
1
2
THERMOSTATICALLY
CONTROLLED OPTIONAL
1
2
3
4
