12 WATER/PLUMBING SYSTEM
Your motorhome is designed with a fresh water, grey water and black water tank and associated plumbing to handle all of the
water and waste requirements. Review this section carefully to understand each system and how they function together.
12.1 FRESH WATER SYSTEM
There are two sources for fresh water in your motorhome:
1. A water tank located within your motorhome.
2. By connecting to “city water” by means of a water hose.
Both can supply water to the sink, shower, bathroom toilet and the water heater.
The water system provides full service similar to the system used in your home. A 12-volt self-priming pump draws water
from the fresh water storage tank to all cold faucets and the water heater. An automatic pressure switch, located in the
water pump maintains a positive line pressure. All fresh water components and ttings are accessible from the drivers side
of the motorhome.
12.1.1 FRESH WATER TANK FILLING PROCEDUR E
Your motorhome will be equiped with one of the following systems:
1. Gravity ll Water Supply:
a. Set pump switch to the o position.
b. Open gravity ll tting compartment.
c. Insert funnel or hose into intake.
d. Add required amount of fresh, clean water. Do not overll.
e. Close tting and lock compartment.
2. Pressure ll water supply.
a. Connect the water hose to the city water inlet connection.
b. Set the water pump switch to the 'OFF' position.
c. Turn the systems valve to the 'Tank Fill' position.
d. Turn on the water supply.
e. Check the Monitor System inside the motorhome for levels
as the tank is lling. When the tank is close to full, check for
overow at the overow drain. Turn the supply 'OFF' as soon
as water ows from the overow.
f. Turn the systems valve back to normal position.
g. Turn the water pump switch 'ON' and the system is ready to use.
12.1.2 WATER PUMP
The water pump is designed to supply water from the fresh water tank to the various areas of your motorhome on de-
mand.
12.1.3 WATER PUMP SWITCH
The water pump switch is located on the Monitor Panel in the overhead cabinet above the entrance door. When this switch
is in the 'on' position, the pump will automatically activate when any faucet, shower or toilet is being used.
It is recommended that the pump switch be turned o and the city water supply tap closed whenever leaving the motorhome
for any period of time.

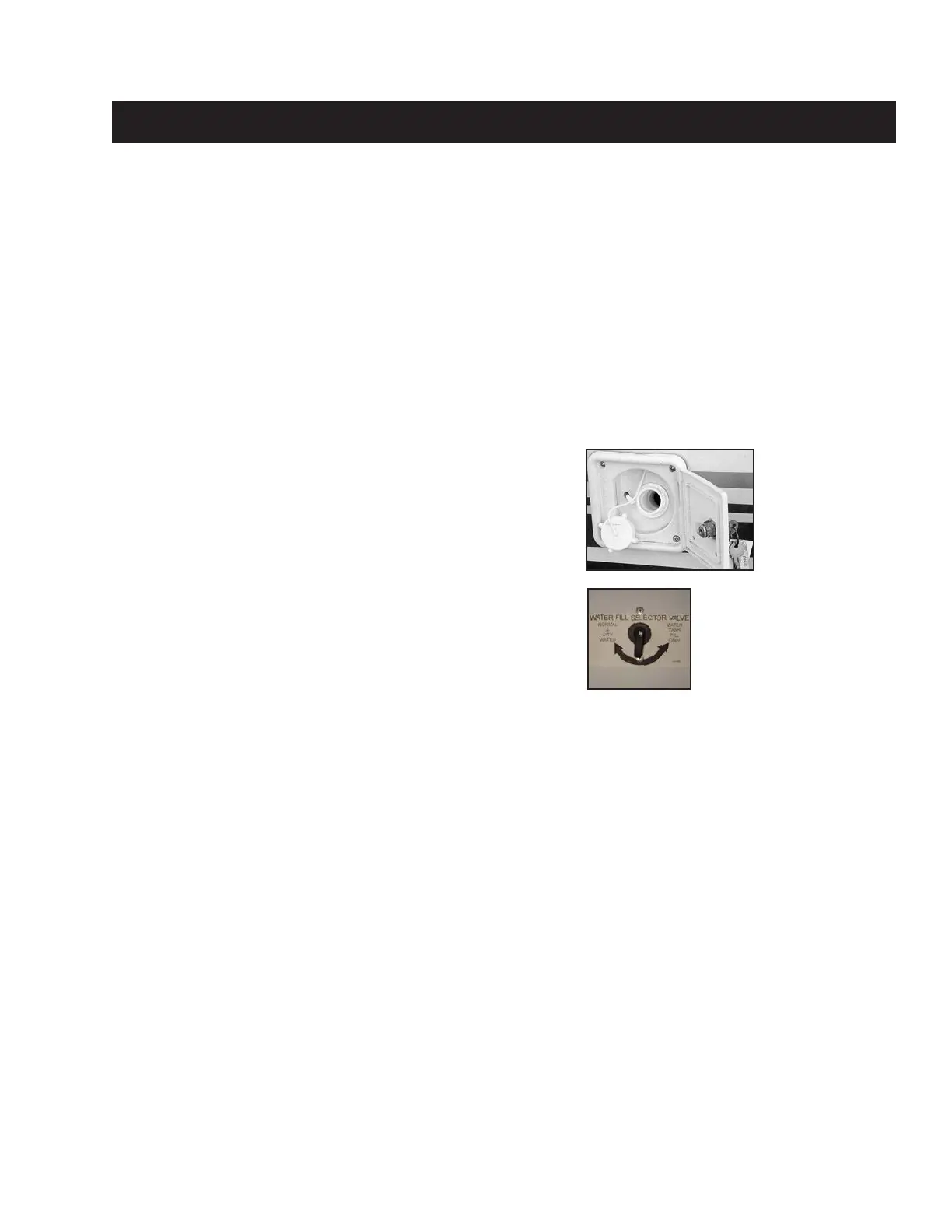

WATER FILL
SELECTOR VALVE (Fill
Position)
GRAVITY FILL
WATER INLET
