5. Fresh Water Tank Drain Valve:
This valve drains the fresh water tank. Turn clockwise to close and counterclockwise to open. Always close valves before
lling the fresh water tank. (Location will vary)
4.10 SYSTEM MONITOR
A system monitor is located above the entrance doorway.

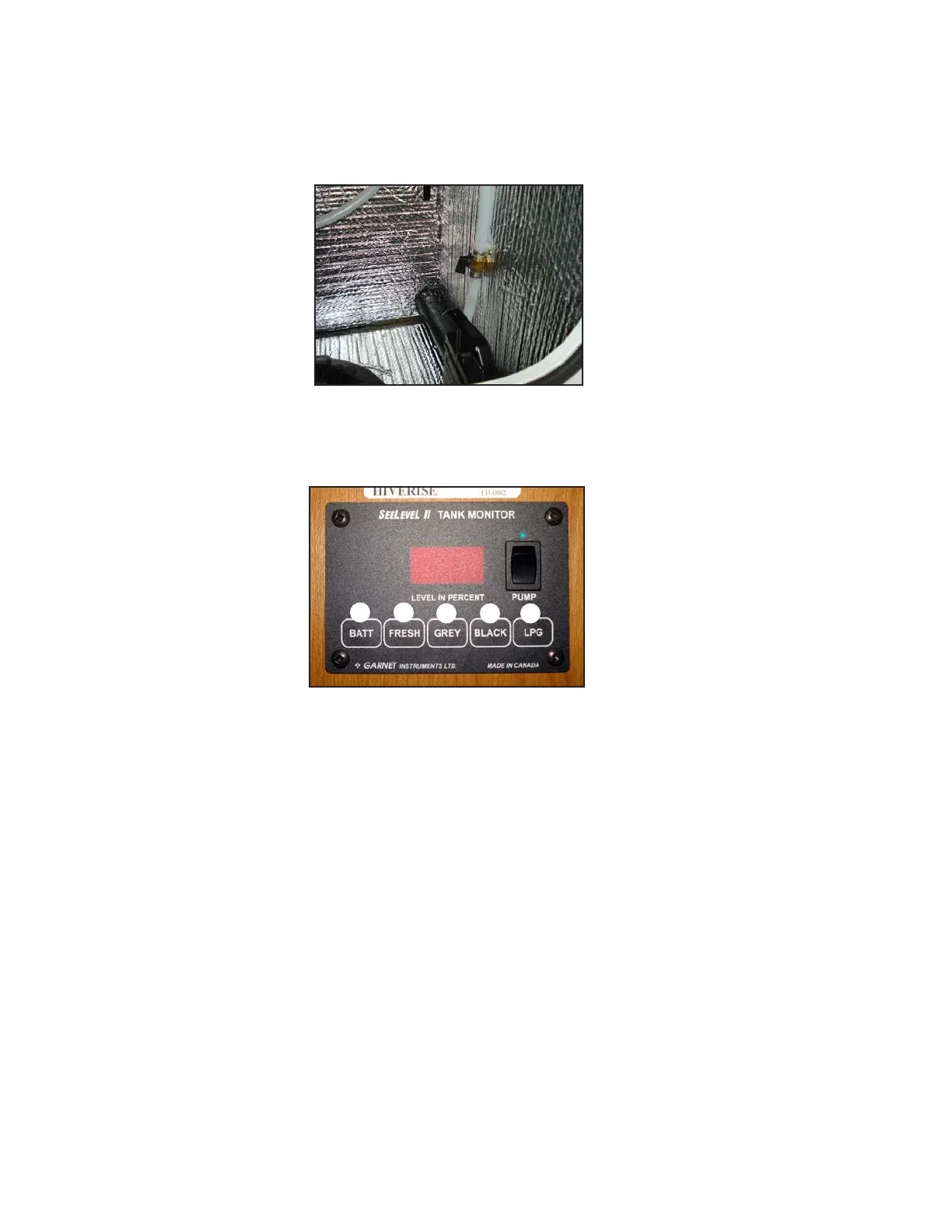

1. Status LED's:
Five LED's are used to indicate the status of the tanks and battery. The tank scale registers EMPTY, 1/4, 1/2, 3/4 or FULL.
The battery charge condition registers POOR, FAIR and GOOD. Read the appropriate scale when the battery or tank
switches are depressed.
2. System Switches:
Each system is equipped with a switch to activate its own monitoring system. Depress and hold the switch. The system
condition will be shown by the LEDs above.
a. Coach Battery c. Grey Water Tank e. LP Gas Tank
b. Fresh Water Tank d. Black Water Tank
3. Water Pump Master:
This rocker switch controls the power to the water pump. Depress the top of the switch to turn the power to the pump on. A red
light in the switch will come on when the power is on. Depress the bottom of the switch to turn o and the light will go o.
4.11 CONVERTER
Refer to the Owner's Information Package for operating instructions.
Each motorhome is equipped with a converter and charging system to maintain the charge in the battery, using shore power
or generator as a power source. The converter is automatically activated when 120-volt power is available.
LOW POINT DRAIN VALVES
ba
c d e
