*WHALE Pump
Principals of operation
This kit has been designed for the pumping of
shower waste water. When the shower is turned
on and internal sensor sends a signal to the
transformer to supply DC voltage to the pump.
When the shower is turned off a signal is sent to
the transformer and after a pre-set time delay
stops the supply of DC voltage to the pump.
After a further 15 minutes the pump will then
switch on automatically for a short time at a
reduced pumping speed removing any run-off
water left in the shower tray/floor (please see
Whale installation instructions for details).
WARNING!
The pump is a non-gravity installation.
It is advised that where the property is
left unattended for an extended period
of time, that the water supply to the
shower is shut off.
Connecting the Control Wire
The Safeguard T100 Care Pump Control Wire
electrical connector is shown in (fig.14).
1. Mains supply to the transformer should be
made using a 5 amp fused spur.
2. Connect the Control Wire from the pump to
the Safeguard T100 Care via the terminal block
situated at the bottom of the showers PCB.
3. The terminal block in the Safeguard T100 Care
models is not polarity sensitive, so the wires
can be connected either way round.
In the unlikely event that technical difficulties are
experienced with the Pump, please refer to the
Whale installation instructions, or contact Whale
on one of the following:
Whale UK Technical Helpline: 0845 0694 253
info@whalepumps.com
For Whale Pump warranty information please visit:
www.whalepumps.com

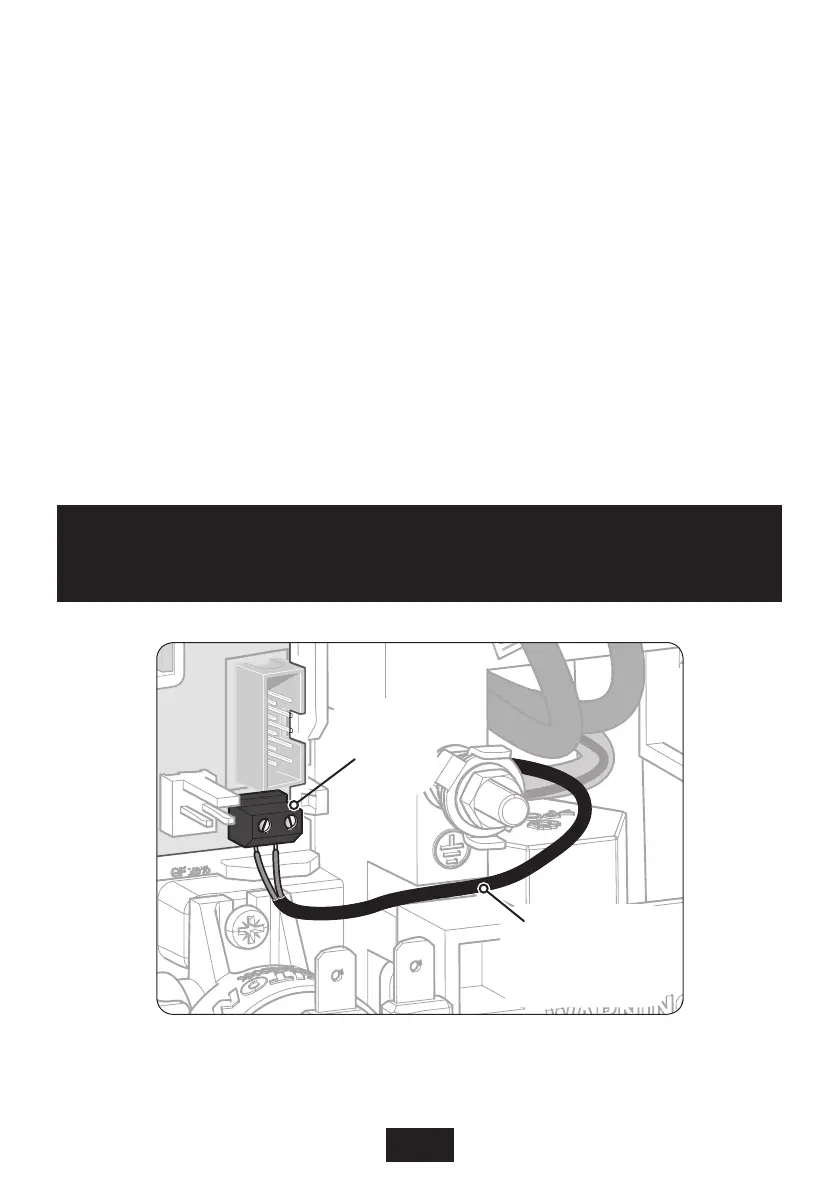

Fig.14
Safeguard
T100 Care
Pump
terminal
block
Control wire to connect
the shower to the Whale
pump transformer
module.
* The Whale Pump is not supplied with any products manufactured by Triton showers.
NOTE: Leave 20cm of the double insulated cable (as supplied in Whale kit) exposed from the
wall to allow connection to the 2 way connector on the Triton Safeguard circuit board.
This connection is not polarity sensitive. Complete the connection by joining the other end
of the double insulated wire to the bell wire (cut bell wire to suit) from the transformer.
