* Recommended minimum running pressure
and flow at the shower inlet 100kPa (1 bar)
at 8 litres per minute for full performance.
Note: if the recommended running pressure
and flow is not available there will be a
noticeable reduction in flow from the
showerhead.
If it is intended to operate the shower at
pressures above the maximum or below the
minimum stated, contact Customer Service for
advice.
Isolating
stopvalve
Mains
water
supply
Shower
unit
Switch may
be wall
mounted
in accordance
with IEE regs.
Mains electric supply (via double pole switch)
Double
pole
isolating
switch
Separate permanently
connected supply
from consumer unit

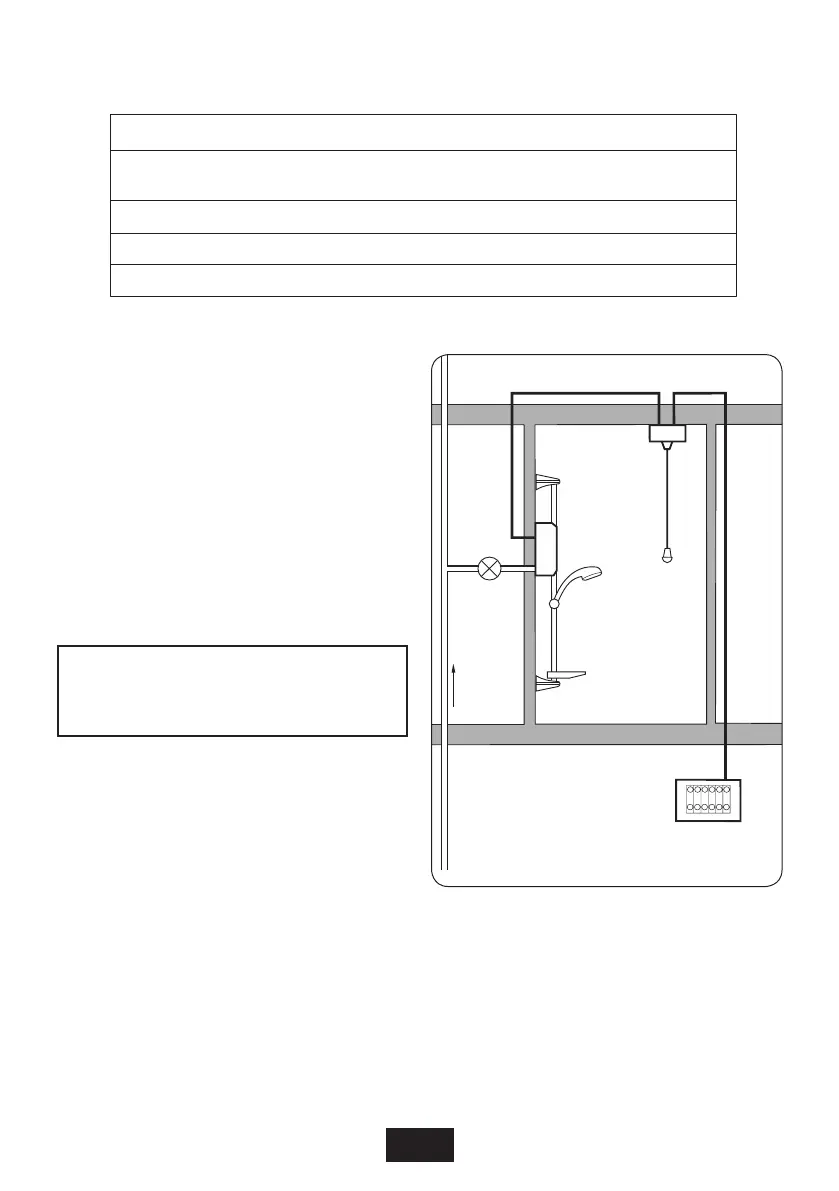

Fig.5 Diagrammatic view (not to scale)
The installation must be in accordance with Water Regulations/Bylaws.
IMPORTANT: To comply with BEAB CARE
MARK IN SERVICE TESTING PROCEDURE
the mains isolating valve should be
located close to the shower unit.
Water Requirements
Supply Source ............................................ Mains pressure cold water only
Minimum running pressure
50kPa (0.5 bar) at 8 litres per minute*
and flow at the shower inlet*
Maximum static pressure ........................... 1000 kPa (10 bar)
Maximum inlet temperature ...................... 28°C
Minimum inlet temperature ....................... 2°C
......................
Fig.5 shows a typical system layout.
Do not use jointing compounds on any pipe
fittings for the installation.
