Fig.18
Fig.17

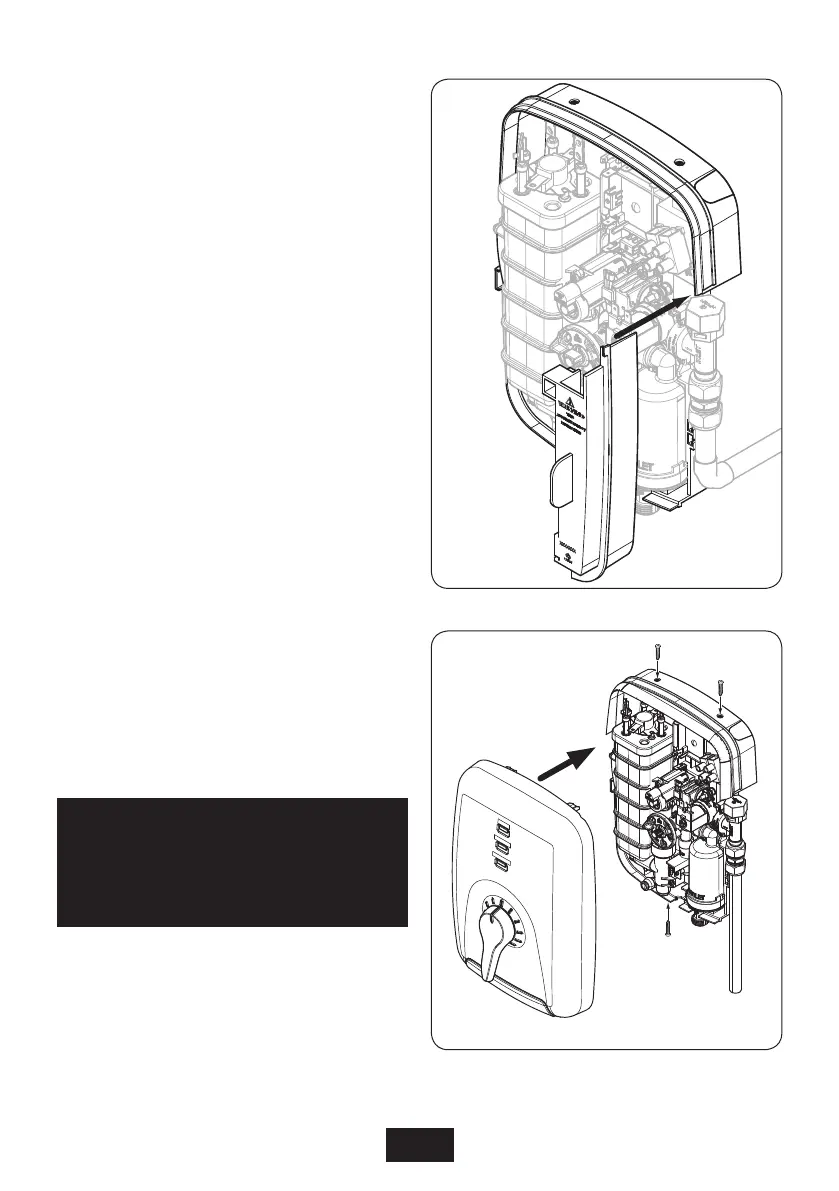

Temporarily fitting the cover
For ease of access to the Inlet fitting the right
hand side of the shower has a removable Side
plate. This MUST be fitted before the cover to
stop any water penitration of the shower during
the Commissioning procedure (fig.17).
Once the Side plate is fitted offer the cover to
the unit.
Guide the cover into position so that the
Temperature control spindle locates correctly
(minor adjustment may be necessary to align the
control and spindle). Secure the cover in position
with the three retaining screws (fig.18).
Fit the flexible hose to the shower outlet making
sure the outlet of the hose is directed to waste.
Check that the supplied sealing washer is in
place.
DO NOT attach the showerhead at this stage.
Turn on the water supply to the shower at the
isolating stopvalve. Switch on the electricity
supply to the shower at the isolating switch.
Wait until water starts to flow from the flexible
hose.
It will take about thirty seconds for a smooth flow
of water to be obtained while air and any debris
is being flushed from the shower.
Once the flushing out has been completed,
switch off the electricity to the shower at the
isolating switch. The water will cease to flow.
Unscrew the top and bottom retaining screws
again and lift the cover from the backplate.
Note: Removal of power to the PCB is the only
way to exit the Commissioning Mode.
NOTE:
IF COMISSIONING THE SAFEGUARD T100
CARE, PLEASE REFER TO PAGES 29 - 33 AND
MAKE SURE THAT THE APPROPRIATE
SECTIONS ARE COMPLETED.
