▼ Clean the engine oil strainer.
cldp
2
3
4
1

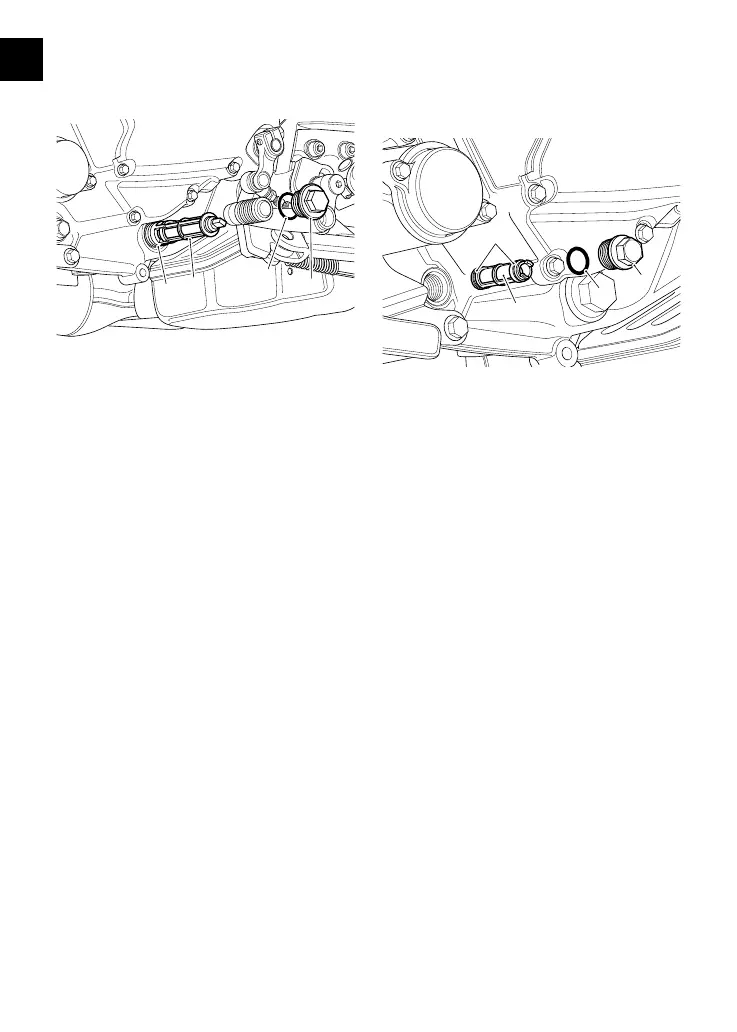

1. Engine oil drain plug
2. Engine oil drain plug O-ring
3. Engine oil strainer
4. Engine oil strainer O-ring
Evacuation Strainer
▼ Remove the evacuation strainer
plug with the evacuation strainer.
▼ Allow the engine oil to drain.
▼ Pull the plug from the evacuation
strainer and discard the O-ring.
▼ Clean the evacuation strainer and
evacuation strainer plug. Install a
new O-ring on the plug.
▼ Install the evacuation strainer
▼ Install and tighten the evacuation
strainer plug to 89 lbf in (10 Nm).
cleg
2
3
1
4
1. Evacuation strainer plug
2. Evacuation strainer plug O-ring
3. Evacuation strainer
4. Evacuation strainer O-rings
Engine Oil Filter
▼ Remove the fasteners from the
engine oil filter cover.
▼ Remove the cover and discard the
O-ring.
▼ Using a suitable tool, remove the
engine oil filter. Dispose of the old oil
and oil filter in an environmentally
friendly way.
▼ Dip the engine oil filter in clean
engine oil before installation.
▼ Install a new O-ring on the cover.
