Trox FKRS-EU - Page 31

⑩
12,5
40...60
50
5
50
W
12,5
50
W
12,5
40...60
W = 155 mm
W ≤ 250 mm
W ≤ 200 mm
150
W
12,5
40...60
40...60
⑦*
④
⑤
⑥
⑧ ⑨
④ ④
⑦
④
⑤
⑥
⑧
⑦*
④
⑤
⑥
⑧
① ③
②
⑩

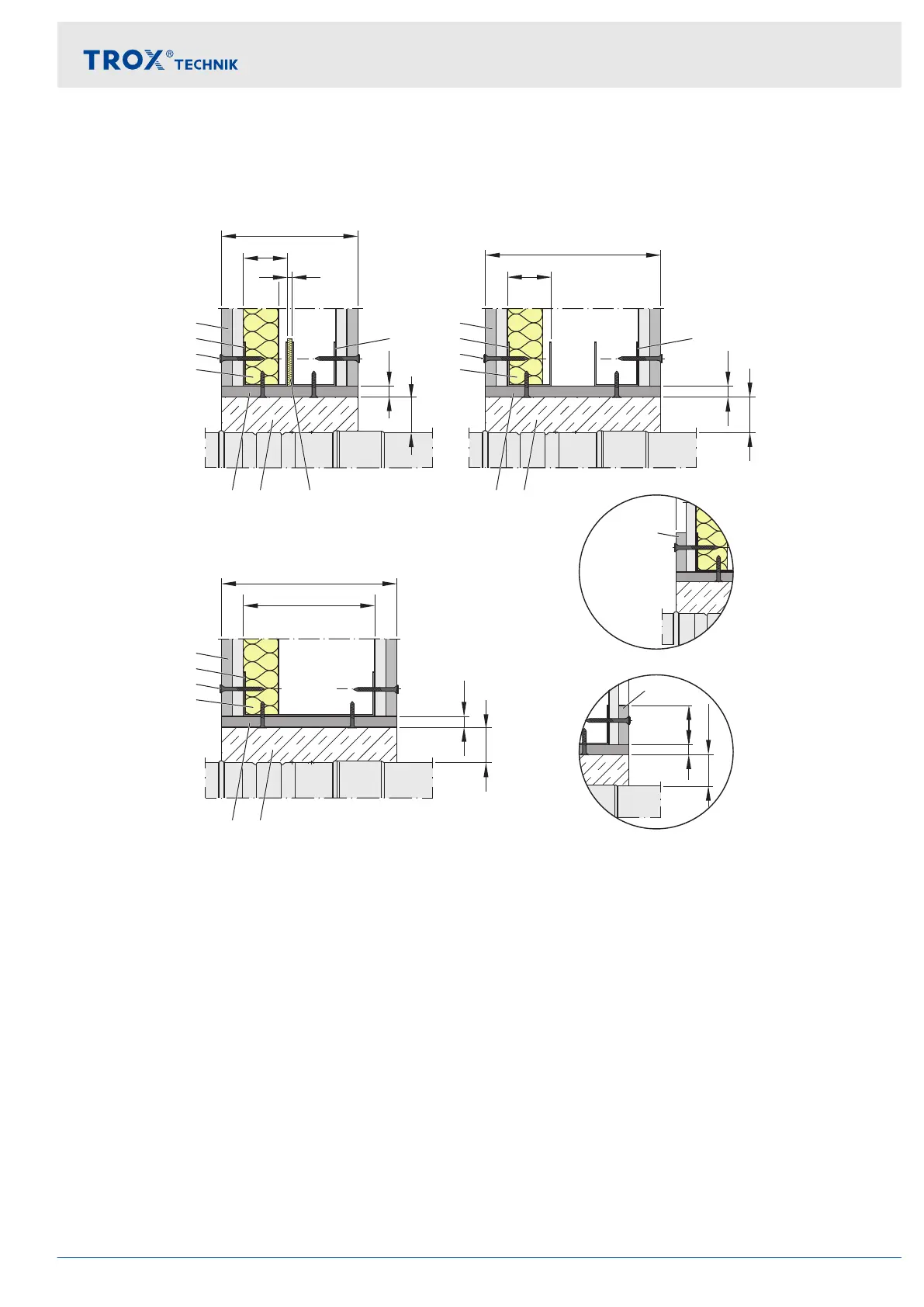

Fig. 18: Mortar-based installation into lightweight partition walls, W ≥ 155 mm
①
F90 wall, double stud system, W = 155 mm
(W = 155 mm shown)
②
F90 wall, single stud system, W ≤ 200 mm
(W = 200 mm shown)
③
F90 wall, double stud system, W ≤ 250 mm
(W = 200 mm shown)
④
Perimeter metal section
⑤
Dry wall screw
⑥
Mineral wool (depending on wall construction)
⑦
Trim panels
⑧
Mortar
⑨
Insulating strip
⑩
Perimeter reinforcing board, 12.5 ✕ 50 mm,
required only for F30 walls
* optional
Installation details for other wall types are available on request
Installation
Lightweight partition walls > Mortar-based installation
Fire damper Type FKRS-EU 31
