2.2 FKRS-EU with fusible link
Dimensions and weight
L = 400
Ø DN
50
~ 75
~ 180
220
270
50
①

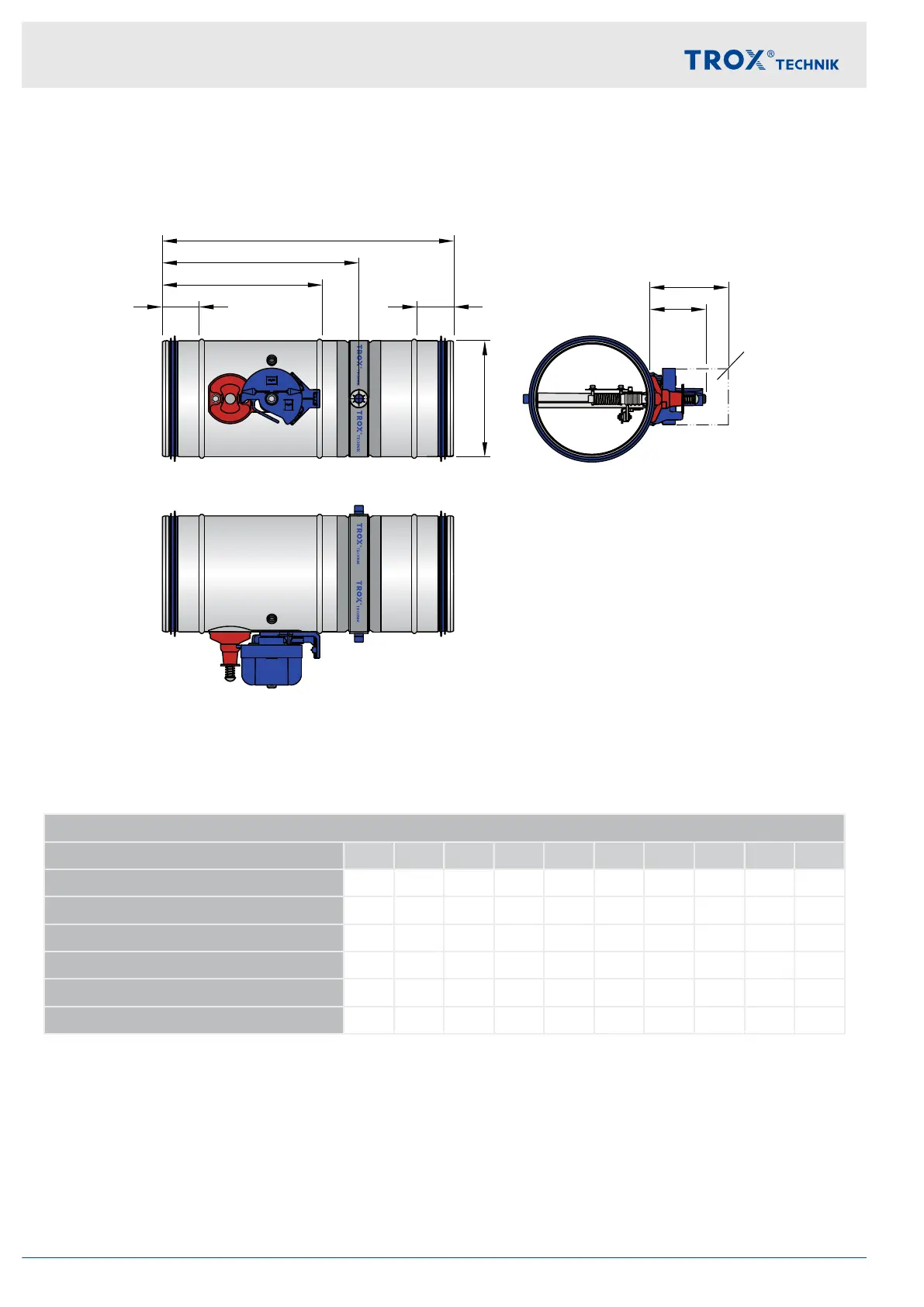

Fig. 2: FKRS-EU with fusible link
①
Keep clear to provide access for operation
Weight [kg]
Nominal size [mm] 100 125 150 160 180 200 224 250 280 315
ØDN [mm] 99 124 149 159 179 199 223 249 279 314
FKRS-EU with fusible link 1.3 1.6 1.8 2.0 2.3 2.5 2.7 3.3 3.8 4.4
... with circular installation block (ER) 5.7 8.6 7.6 7.3 11.0 9.8 13.5 12.1 16.0 15.0
... with square installation block (EQ) 7.3 11.2 10.2 9.9 13.3 13.6 18.8 17.3 22.9 20.0
... with square installation block (TQ) 5.4 6.1 7.0 7.9 8.8 9.7 10.6 12.0 13.7 15.8
... with wall face frame (WA) 4.4 5.2 6.1 6.6 7.4 8.2 9.0 10.2 11.7 13.6
Technical data
FKRS-EU with fusible link
Fire damper Type FKRS-EU8
