5.8.1
Mortar-based installation
W ≥ 90
220
s = 40 – 60
≥ 40
≥ 90
a ≥ 10
□A
Detail Y
Y
①
③
࿆
࿇
࿆
࿇
②
①
②
③

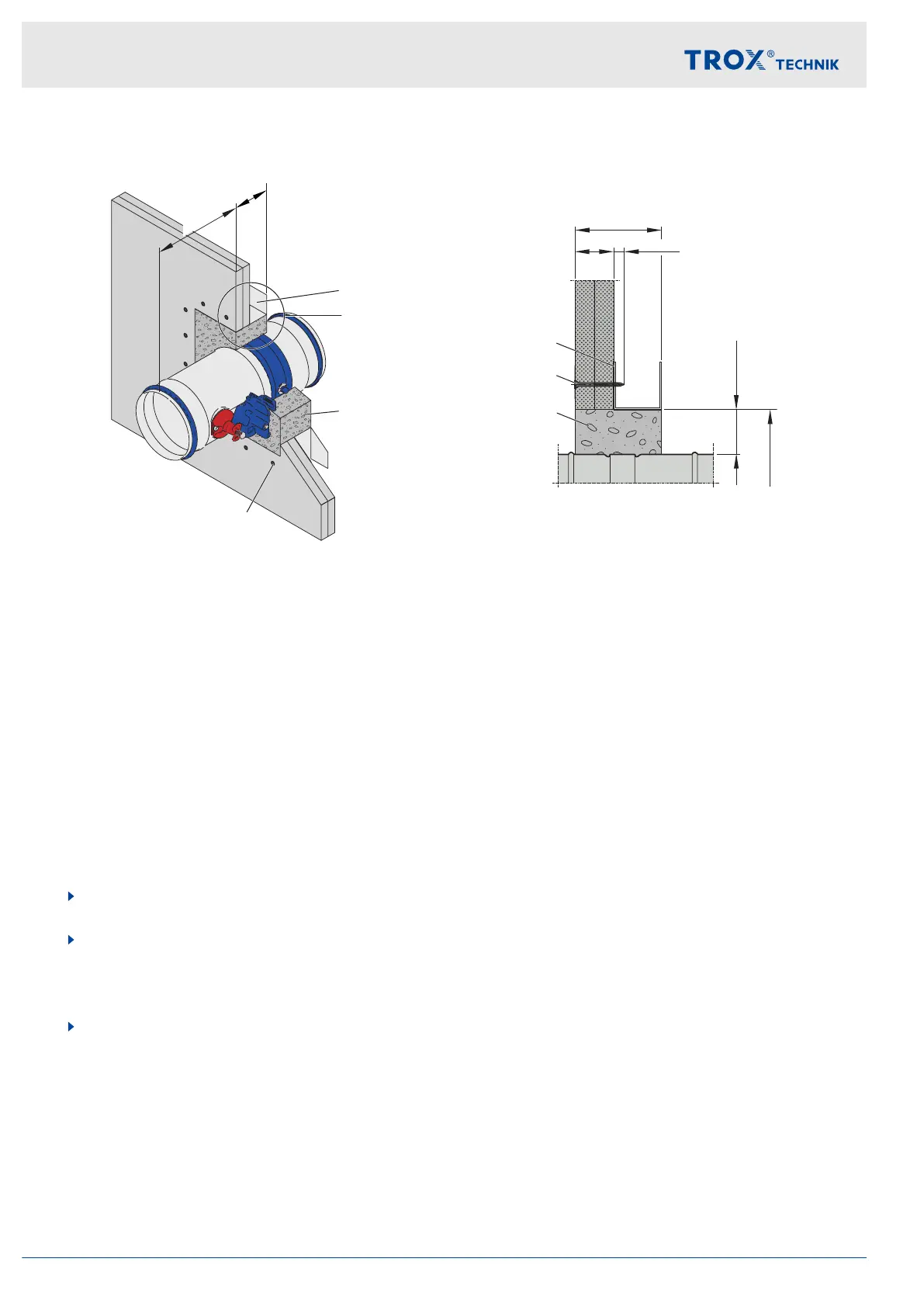

Fig. 29: Mortar-based installation
①
Perimeter metal section
②
Dry wall screw
③
Mortar
Ⓐ
Installation side
Ⓑ
Operating side
Personnel:
Specialist personnel
Materials:
Mortar
Ä
‘Acceptable mortars for mortar-based installation’ on page 14
Requirements
Performance class EI 90 S
Shaft walls with metal support structure and cladding on one side, W ≥ 90 mm; detailed specification
Ä
on page 42
≥ 75 mm distance to load-bearing structural elements
200 mm minimum distance between two fire dampers
Duct connection with flexible connector (recommended)
1. Erect the lightweight partition wall according to the manufacturer's instructions and create an installation
opening
Ä
on page 42.
2. Push the fire damper into the installation opening and secure it. Make sure that the distance from the con-
necting spigot on the operating side to the wall is 220 mm.
If the wall thickness is >115 mm, extend the fire damper on the installation side with an extension piece or a
spiral duct.
3. Close off the perimeter gap »s« with mortar.
Installation
Shaft walls > Mortar-based installation
