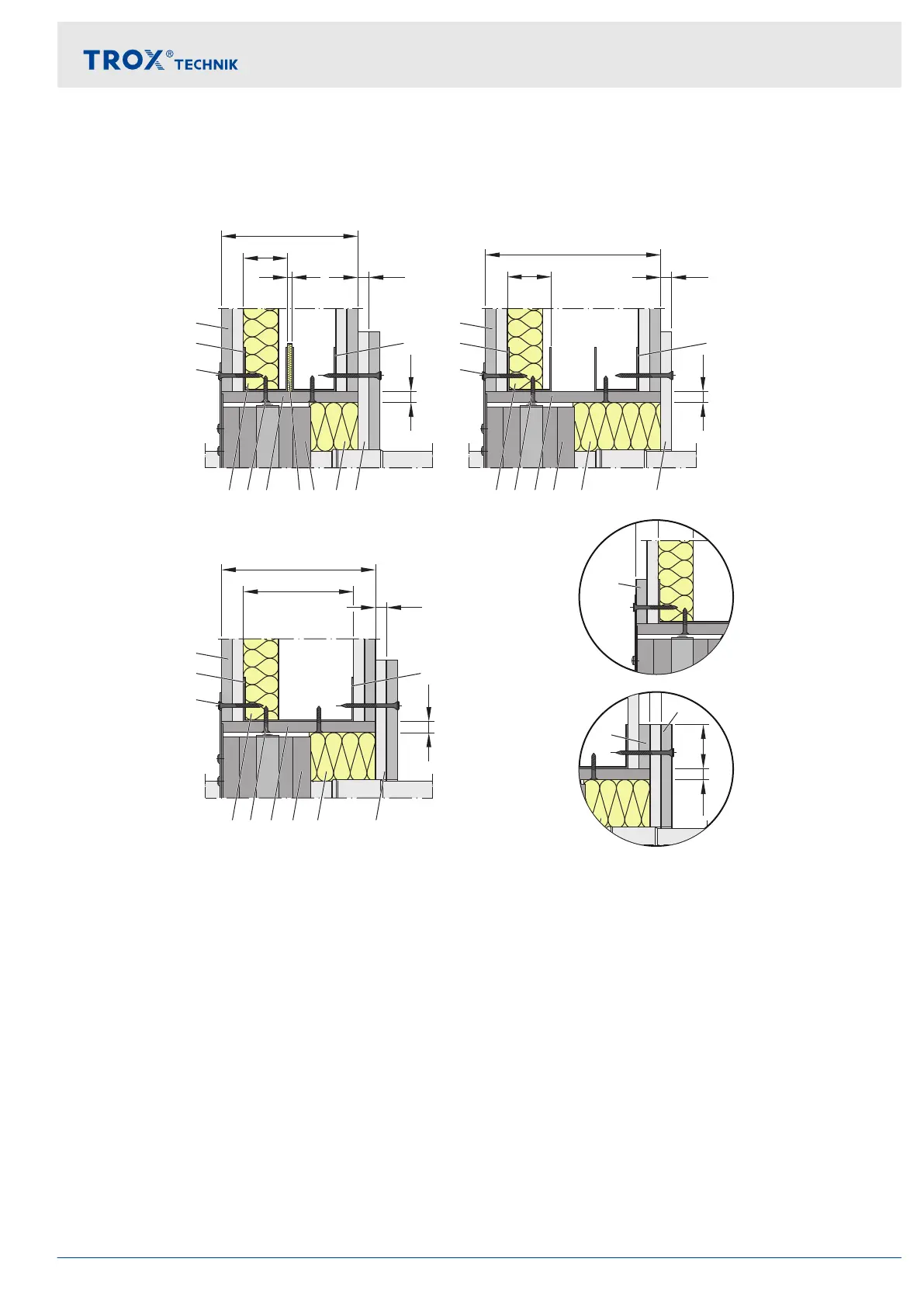

Fig. 20: Dry mortarless installation into lightweight partition walls, W > 125 mm
①
Double stud system, W = 155 mm (W = 155 mm
shown)
②
Single stud system, W ≥ 125 mm (W = 175 mm
shown)
③
Double stud system, W ≥ 150 mm (W = 200 mm
shown)
④
Perimeter metal sections
⑤
Dry wall screw
⑥
Mineral wool (depending on wall construction)
⑦
Trim panels
⑧
Installation kit
⑨
Insulating strip
⑩
Infill (mineral wool A1 ≥ 50 kg/m³ or gypsum
mortar)
⑪
Reinforcing board, made of wall panels, up to the
fire damper casing
⑫
Perimeter reinforcing board, 12.5 × 50 mm,
required only for F30 walls
* optional
Installation
Lightweight partition walls > Dry mortarless installation with square dry mo...
