CHAPTER 2: ASSEMBLY INSTRUCTIONS

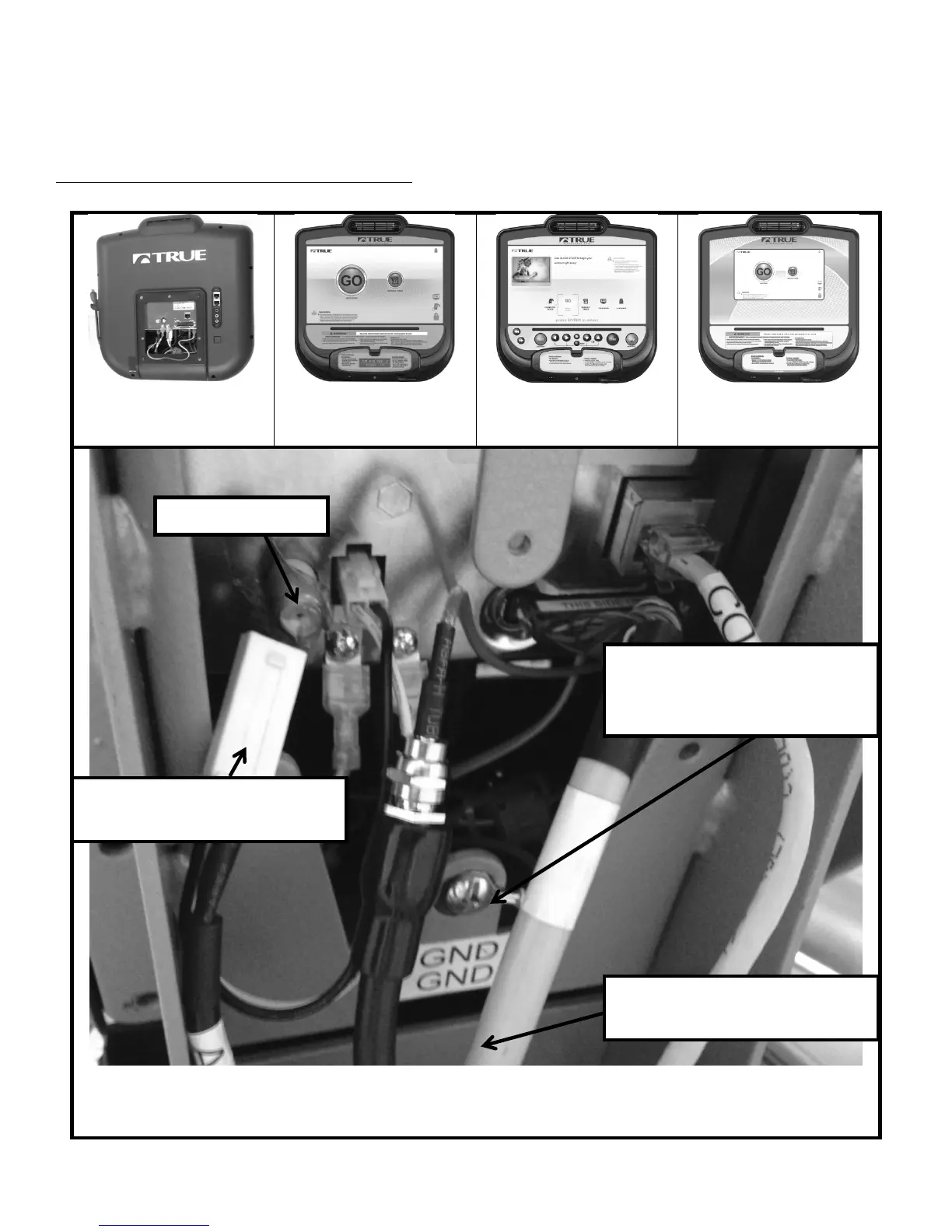

Step #10A: Cable Connections (console):
*Follow Step 10A if installing a touchscreen console or 15”TFT console. For other consoles, proceed to Step 10B.
NOTE: Ethernet & Coaxial cable connections are not available on the Orange LED or 9” TFT Consoles
The Ethernet Port on the 15” TFT Console is non-functioning
All Ground Wires Must be connected
This connector is only used with
an “Optional TV Mount”
Ensure the Ground Cable is
attached by the Ground Screw
*Location Varies By Model
Tuck excess Cable length into the
Front Mast
Truefitness.com / 800.426.6570 / 636.272.7100 17
