TREADMILL ASSEMBLY STEPS CONTINUED:

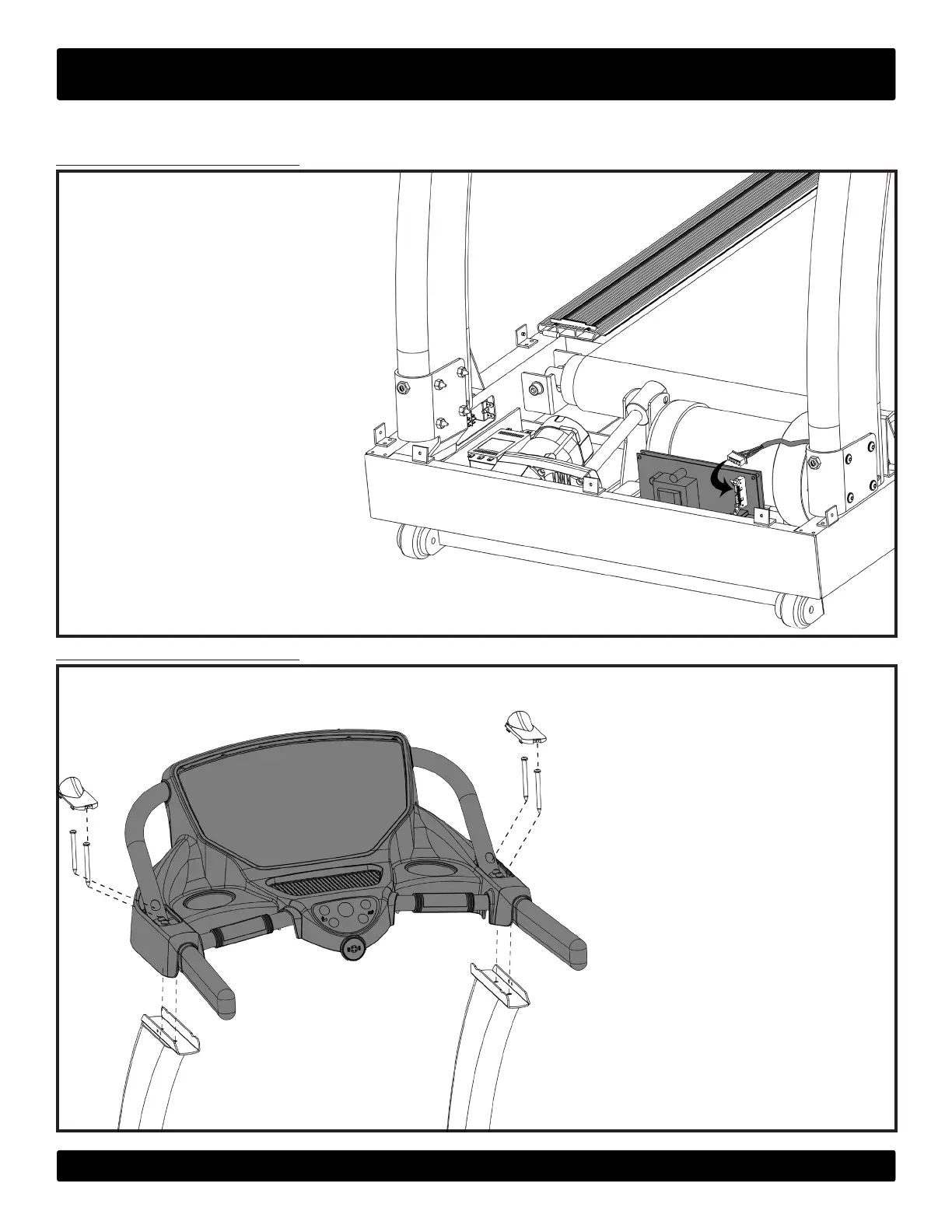

STEP 3 Lower Data Cable:
a) Connect the data cable coming from the
bottom of the le pedestal upright to the
lower control board as shown.
STEP 4 Console Assembly:
a) Place the console assembly on the ped-
estal uprights and secure with 4 bolts.
b)Attach the le and right bolt covers by
snapping them into place.
To Next Page
