TSC DA220 Series User Manual

- 24 -
4.2.2 Dump mode

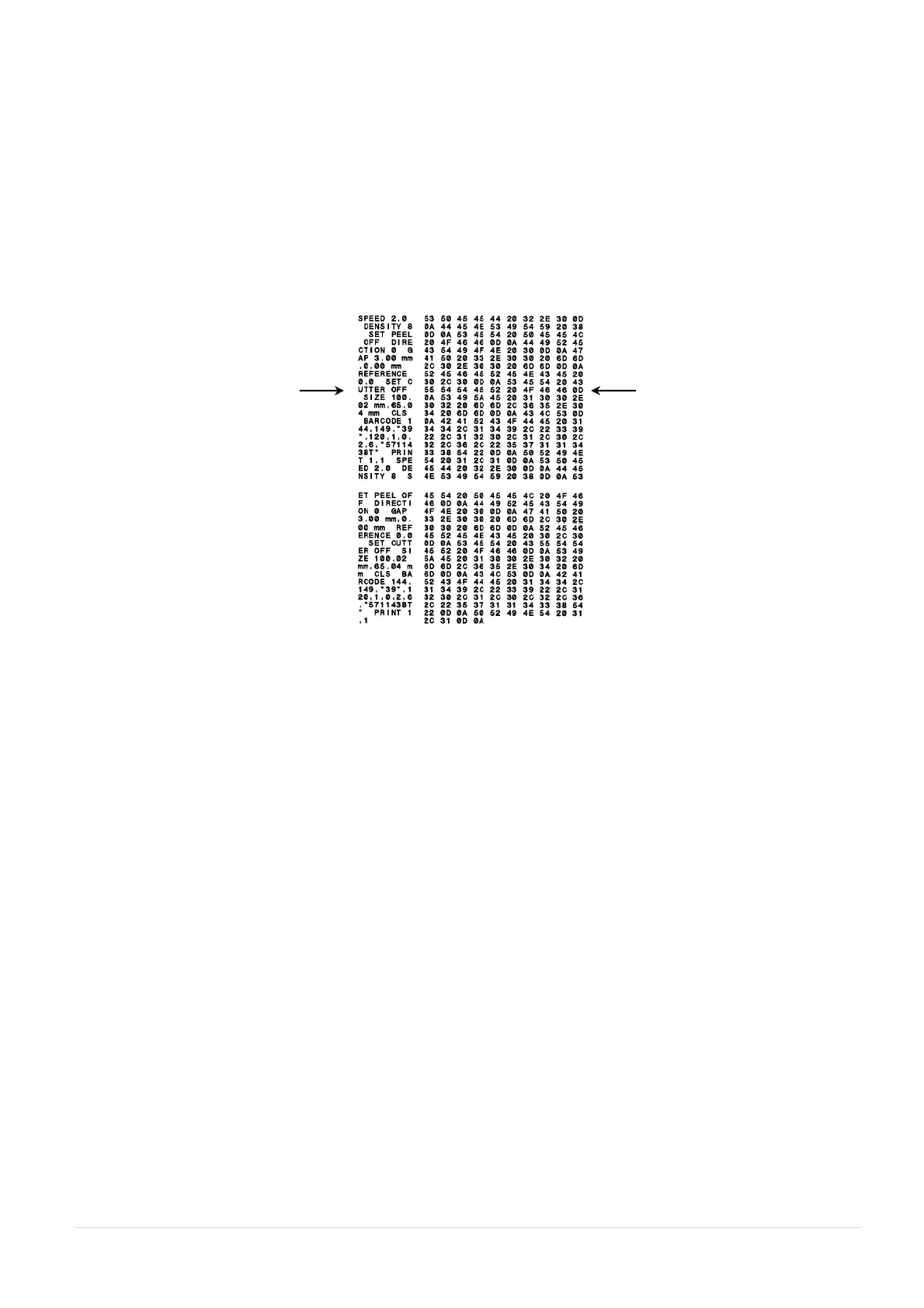

Printer will enter dump mode after printing printer configuration. In the dump mode, all characters will
be printed in 2 columns as following. The left side characters are received from your system and right
side data are the corresponding hexadecimal value of the characters. It allows users or engineers to
verify and debug the program.
Note:
1. Dump mode requires 4” wide paper width.
2. Turn off / on the power or press FEED button to resume printer for normal printing. (Ready
mode)
ASCII Data
Hex decimal data related to left
column of ASCII data

TSC DA220 Series Specifications

General

Resolution	203 dpi / 300 dpi
Print Speed	Up to 152.4 mm (6”) per second
Print Width	54 mm (2.12”)
Memory	8 MB SDRAM
Processor	32-bit RISC
Interface	USB
Operating Temperature	-40°C to 60°C
Storage Temperature	-40 ~ 60°C (-40 ~ 140°F)
Power Supply	100-240V AC, 50/60 Hz
