3.7 Replacing the Power Supply Unit

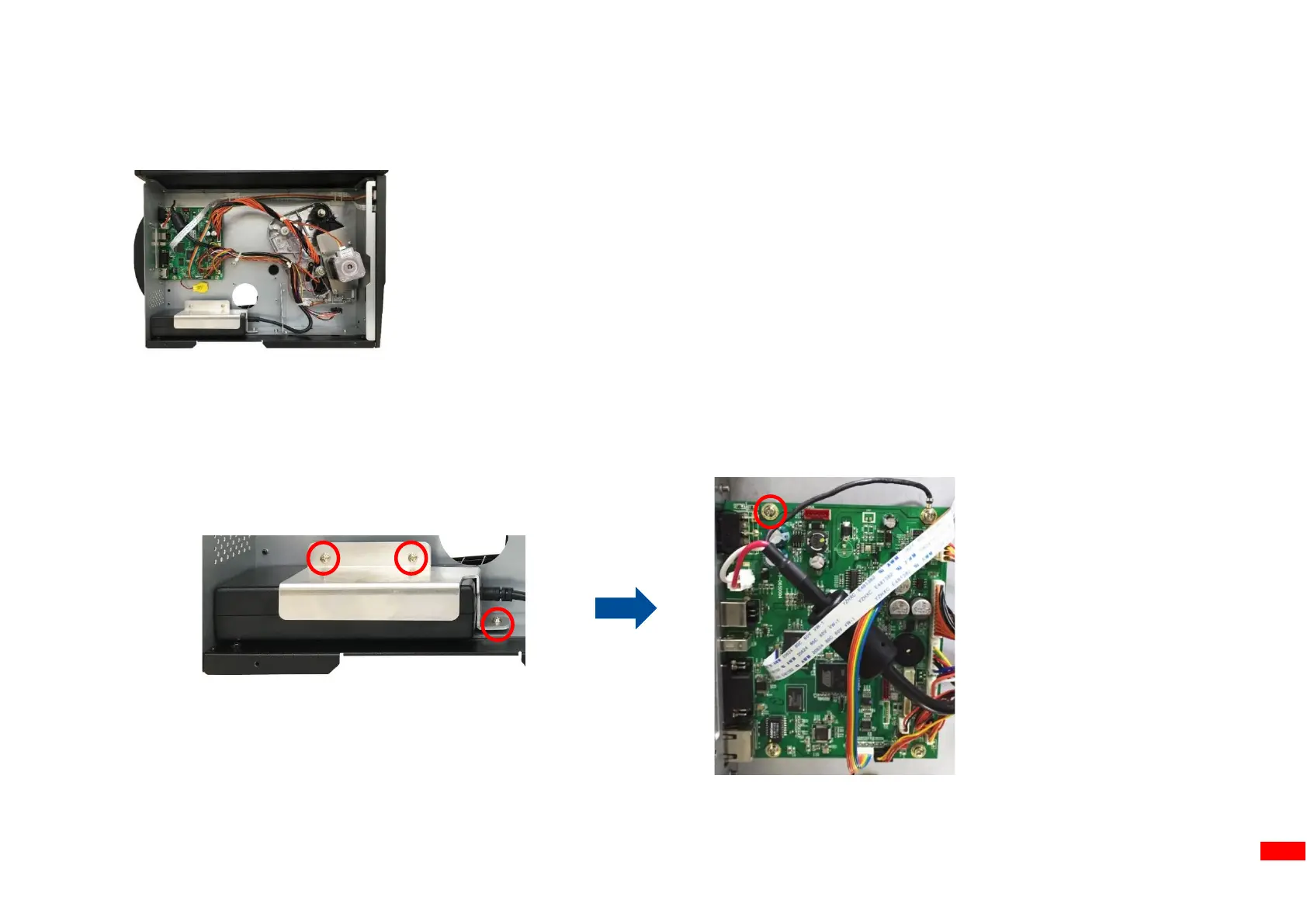

1. Refer to Remove the Electronics Cover to remove the electronics cover.
2. Remove 3 screws (fastened by 7.5 kg±15% kg-cm) as indicated below.
3. Remove 1 screw (fastened by 7.5 kg±15% kg-cm) on main board as indicated to remove power supply unit.
4. Remove/Replace the power supply unit.
5. Reassemble the parts in the reverse procedures.
