3.11 Replacing the Stepping Motor Assembly

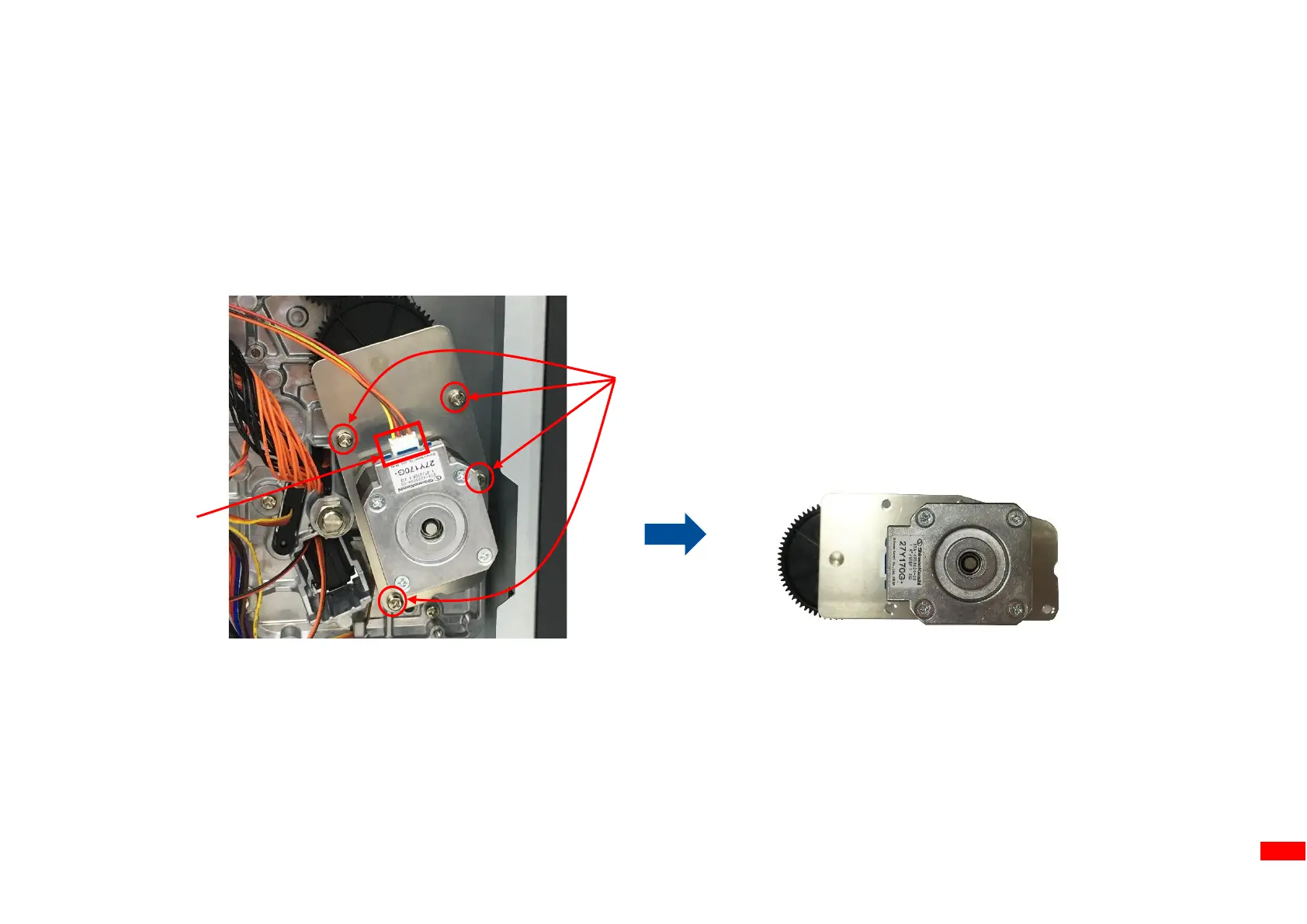

1. Refer to Remove the Electronics Cover to remove the electronics cover.
2. Remove 4 screws (fastened by 10.5 kg±15% kg-cm) and 1 connector on the stepping motor assembly.
3. Remove/Replace the stepping motor assembly (including gears and stepping motor).
4. Reassemble the parts in the reverse procedures.
Screws
Connector
Stepping motor assembly
