3.8 Replacing the Internal Rewinder DC Motor
1. Refer to Remove the Electronics Cover to remove the electronics cover.

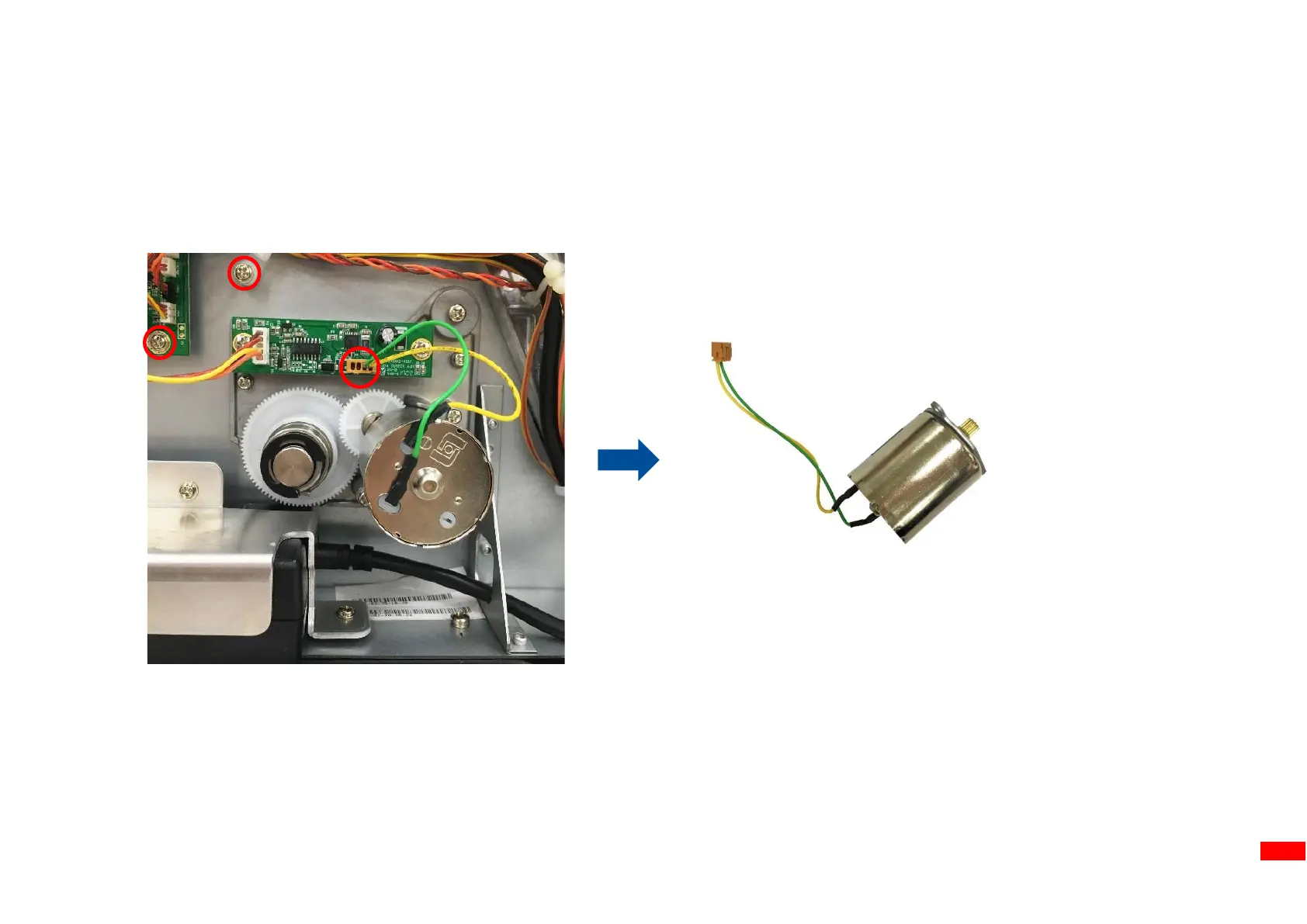

2. Remove 2 screws (fastened by 7.5 kg±15% kg-cm) and 1 cable connector on rewinder board as indicated.
3. Remove/Replace the DC motor module.
4. Reassemble the parts in the reverse procedures.
DC motor module
