TSC MB240 Series Service Manual

48
4.2.3 Mechanism Fine Adjustment to Avoid Ribbon Wrinkles
Ribbon wrinkle is related to the media width, thickness, print head pressure balance, ribbon film characteristics, print darkness
setting…etc. In case the ribbon wrinkle happens, please follow the instructions below to adjust the printer parts.

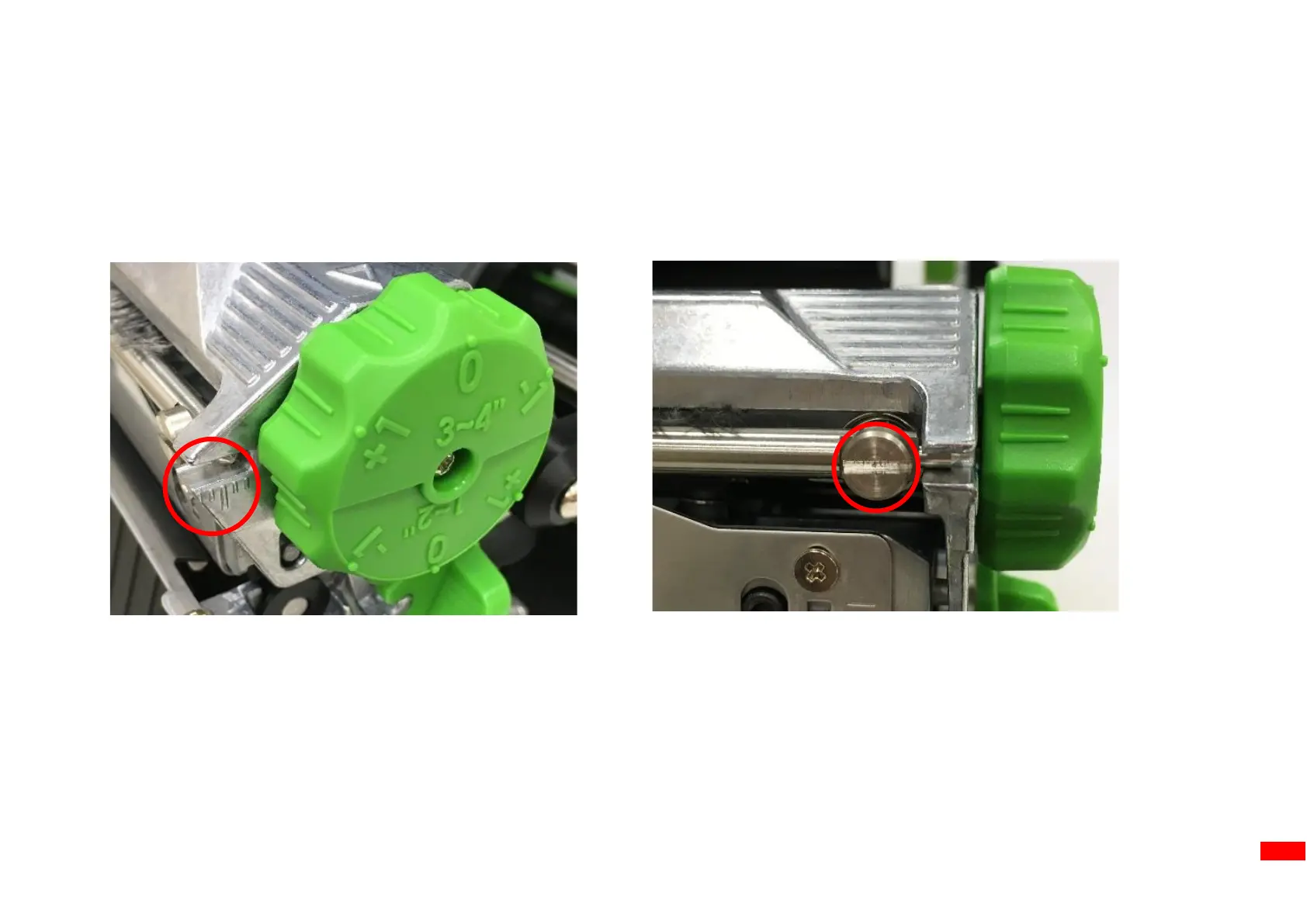

Ribbon Tension Adjustment Knob has 5 indexes for adjustment. Use flat screw driver to change the ribbon tension.

TSC MB240 Series Specifications

General

Print Method	Thermal Transfer/Direct Thermal
Resolution	203 dpi
Processor	32-bit RISC CPU
Operating Humidity	25-85% non-condensing
Connectivity	USB 2.0, RS-232
Media Sensor	Reflective, Transmissive
Media Type	Continuous, Die-cut, Black mark, Fan-fold, Notched
Media Width	25.4 mm
Media Thickness	0.06 mm
Media Core Diameter	25.4 mm (1")
Media Max Roll Diameter	127 mm (5")
Ribbon Width	110 mm
Ribbon Length	300 m
Ribbon Core Diameter	25.4 mm (1 inch)
Power	100 - 240 VAC, 50/60 Hz
Maximum Print Length	9999 mm
Label Width	25.4 mm
Label Thickness	0.06 mm
Power Supply	100-240V AC, 50-60Hz
Operating Temperature	5°C - 40°C
Storage Temperature	-20°C - 60°C
Certifications	CE
