TSC MB240 Series Service Manual

26

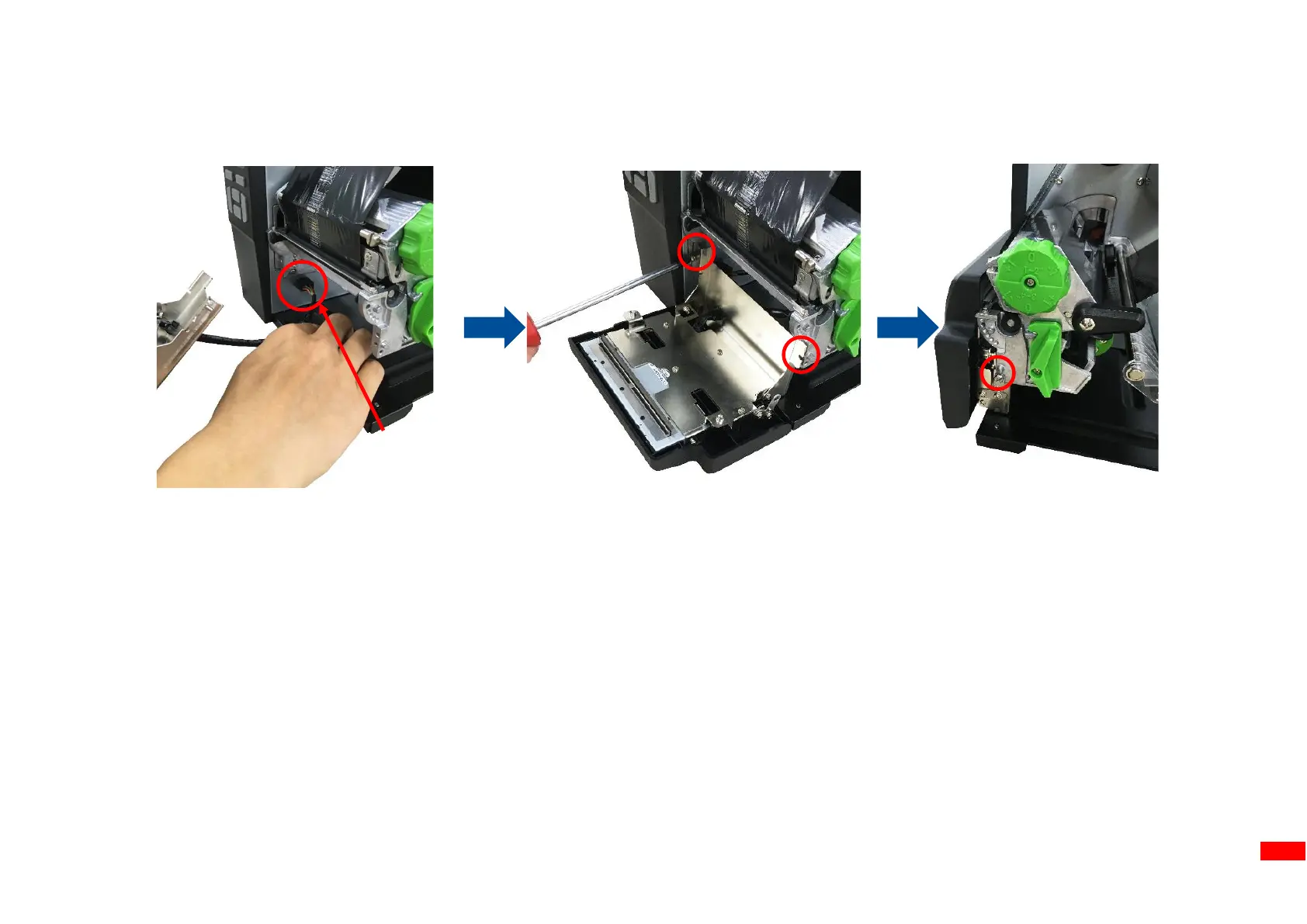

3. Fasten the 2 screws (fastened by 7.5 kg±15% kg-cm) on printer mechanism as indicated.
4. Close cutter module and fasten 1 shoulder screw (fastened by 7.5 kg±15% kg-cm) to fix hinge
Note: Please make sure shoulder screw did not interfere with hinge.
5. Remove/Replace the cutter module.
6. Reassemble the parts in the reverse procedures.
Cable socket

TSC MB240 Series Specifications

General

Print Method	Thermal Transfer/Direct Thermal
Resolution	203 dpi
Processor	32-bit RISC CPU
Operating Humidity	25-85% non-condensing
Connectivity	USB 2.0, RS-232
Media Sensor	Reflective, Transmissive
Media Type	Continuous, Die-cut, Black mark, Fan-fold, Notched
Media Width	25.4 mm
Media Thickness	0.06 mm
Media Core Diameter	25.4 mm (1")
Media Max Roll Diameter	127 mm (5")
Ribbon Width	110 mm
Ribbon Length	300 m
Ribbon Core Diameter	25.4 mm (1 inch)
Power	100 - 240 VAC, 50/60 Hz
Maximum Print Length	9999 mm
Label Width	25.4 mm
Label Thickness	0.06 mm
Power Supply	100-240V AC, 50-60Hz
Operating Temperature	5°C - 40°C
Storage Temperature	-20°C - 60°C
Certifications	CE
