TSC MB240 Series Service Manual

34

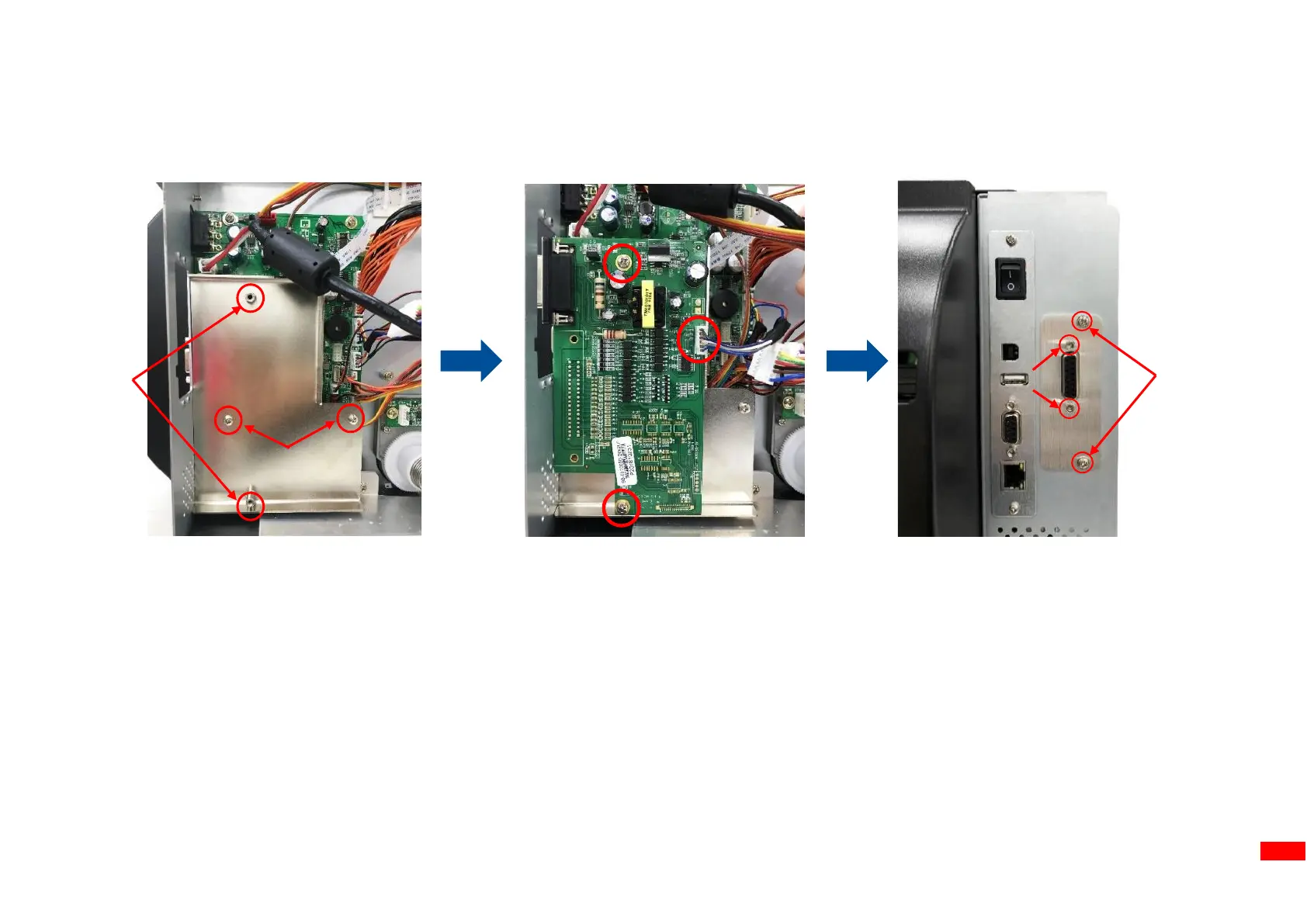

4. Fasten 2 screws (fastened by 5.5 kg±15% kg-cm) on GPIO fix board first. Then, aligning the GPIO board to the 2 locating holes
on GPIO fix board and fasten another 2 screws (fastened by 5.5 kg±15% kg-cm) as indicated.
5. Insert the rest connector of GPIO transfer cable to GPIO board.
6. Reassemble the parts in the reverse procedures.
Locating
holes
Screws
Screws
Hexagon screws

TSC MB240 Series Specifications

General

Print Method	Thermal Transfer/Direct Thermal
Resolution	203 dpi
Processor	32-bit RISC CPU
Operating Humidity	25-85% non-condensing
Connectivity	USB 2.0, RS-232
Media Sensor	Reflective, Transmissive
Media Type	Continuous, Die-cut, Black mark, Fan-fold, Notched
Media Width	25.4 mm
Media Thickness	0.06 mm
Media Core Diameter	25.4 mm (1")
Media Max Roll Diameter	127 mm (5")
Ribbon Width	110 mm
Ribbon Length	300 m
Ribbon Core Diameter	25.4 mm (1 inch)
Power	100 - 240 VAC, 50/60 Hz
Maximum Print Length	9999 mm
Label Width	25.4 mm
Label Thickness	0.06 mm
Power Supply	100-240V AC, 50-60Hz
Operating Temperature	5°C - 40°C
Storage Temperature	-20°C - 60°C
Certifications	CE
