TSC MH341 Series User Manual

- 22 -
For 1.5” spindle model
For 1” spindle model

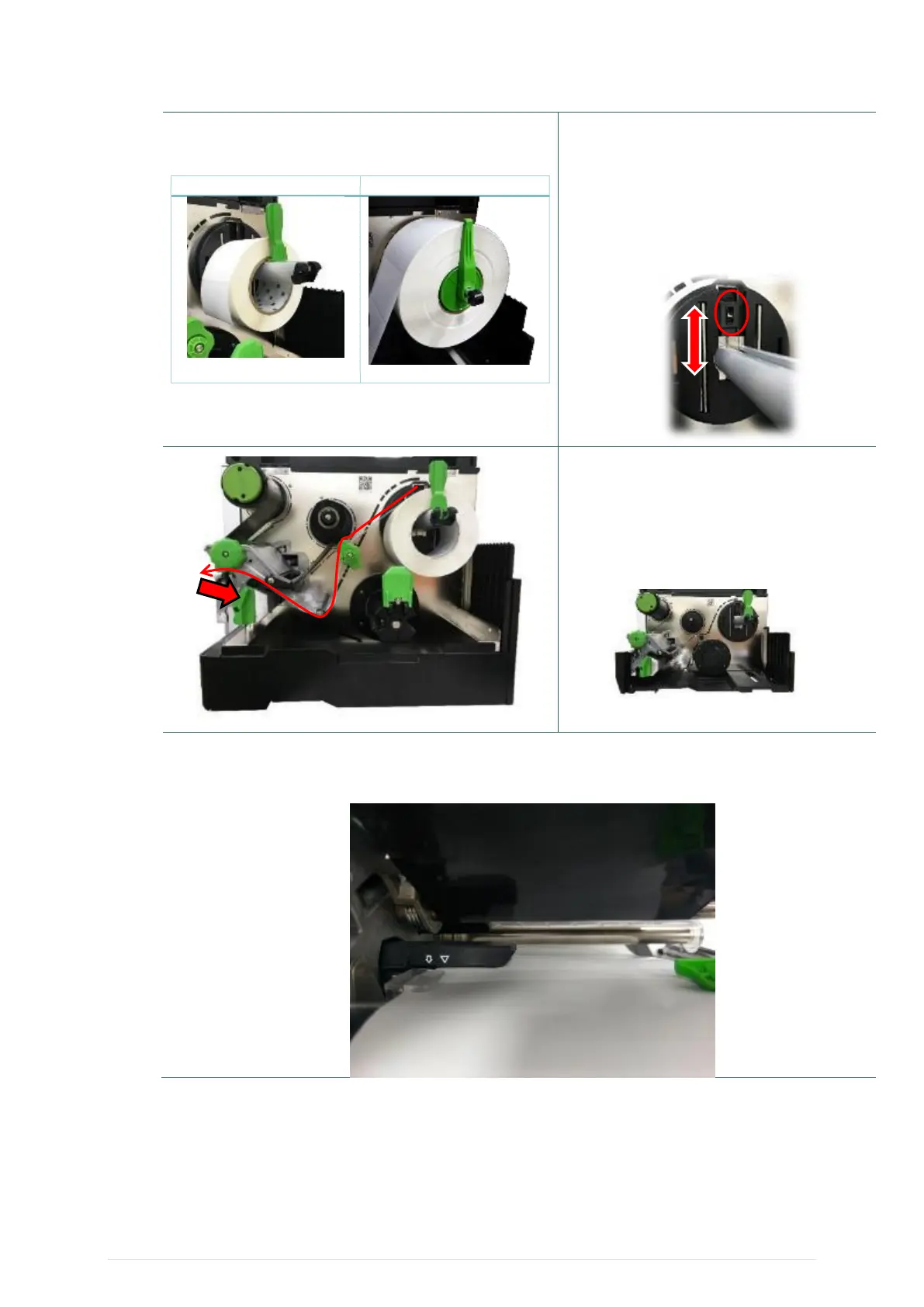

3. Place the media roll on the label supply
spindle and use label roll guard to fix it.
Note:
The media end sensor is movable,
which can detect the capacity of
media and remind users to change
the media roll.
4. Push the print head release lever and
install the label through the media
guide bar, damper, media sensor, and
label guide to install the media.
Note: MH241 Series doesn’t attach
the media guide bar.
5. Move the media sensor by adjusting the media sensor position adjustment knob, make sure the
gap or black mark sensor is at the location where media gap/black mark will pass through for
sensing.
Black mark sensor
(shown as
↓
)
Gap sensor
(shown as▽)
Interior view of MH241 Series
Print head
