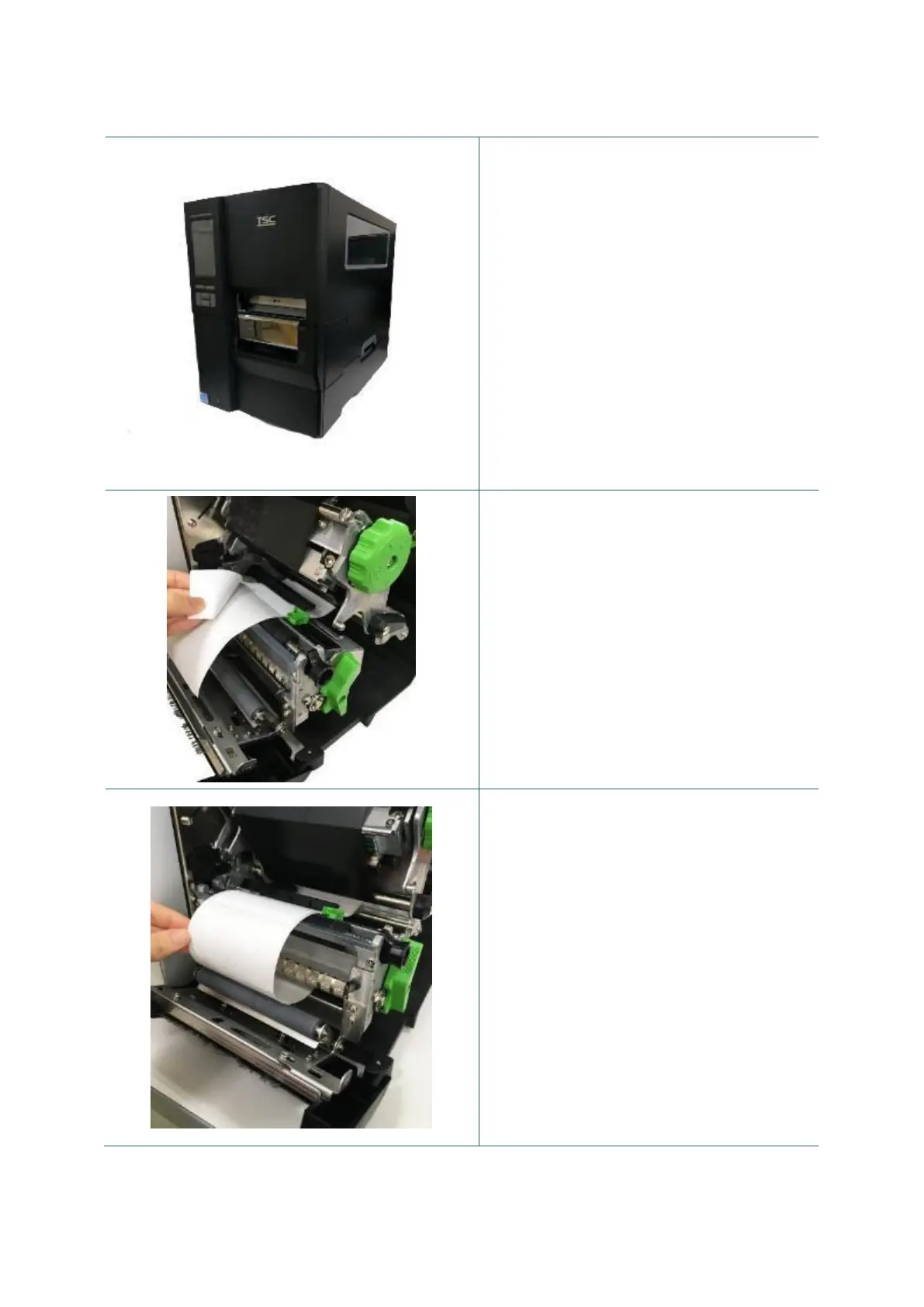

3.4.3 Loading Media in Peel-off Mode (Option for MH241P Series)
1. Open the printer right side cover.
2. Please refer to section 3.4.1 for loading
media.
3. Using the front display panel to do the
calibration first and set the printer mode to
peeler mode.
Note:
Please calibrate the gap/black mark
sensor before loading media in the peel-
off mode to avoid the paper jam.
4. Open print head release lever, label guide
bar release lever, and peel-off module to
pull approximately 650mm of the label
through the front of the printer.
5. Remove several labels to leave liner.
6. Feed the leading edge of liner through the
peel-off roller.
