TSC TA310 - Replacing the Print Head Module

TA210/ TA310/ TA200/ TA300
Bar Code Printer Service Manual
18
3.7 Replacing the Print Head Module

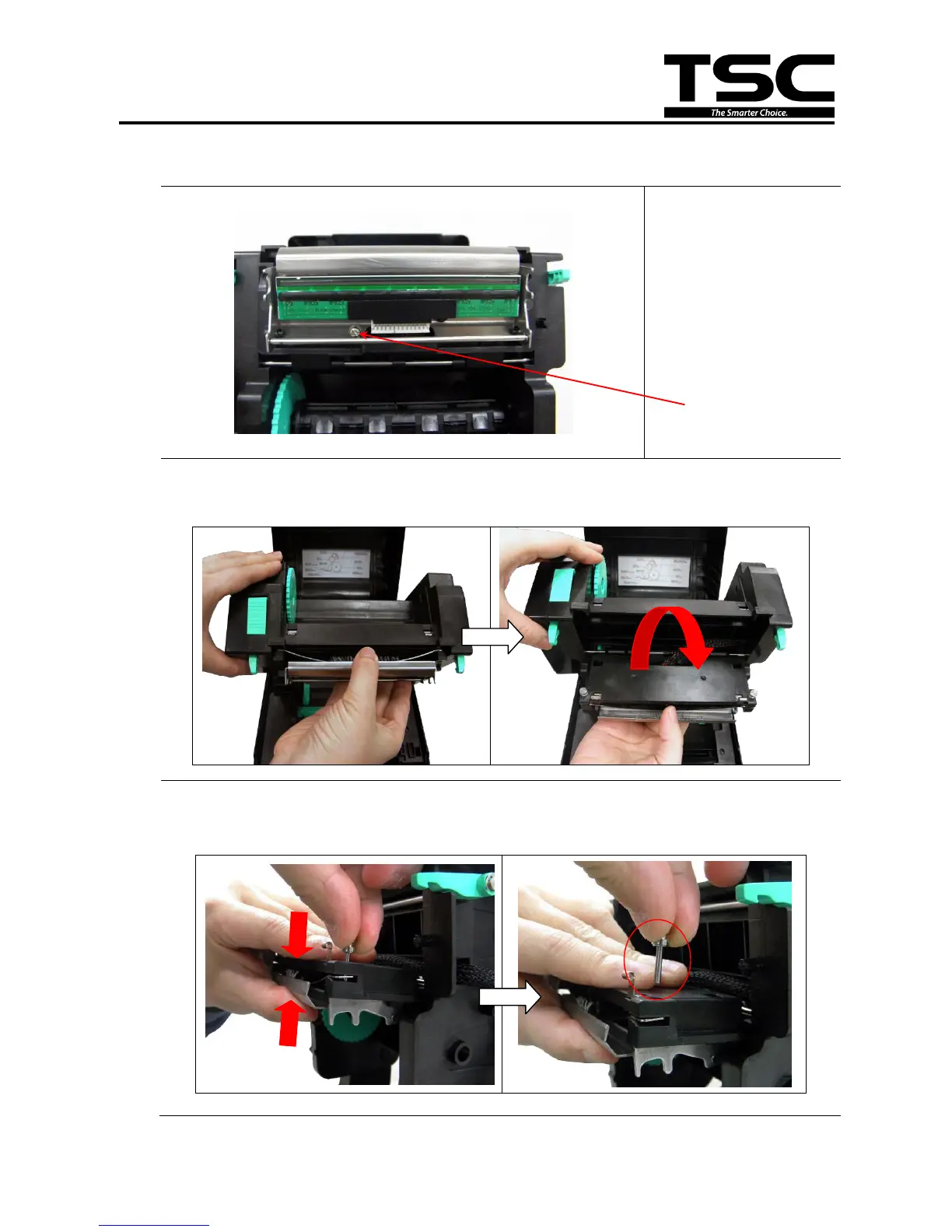

1. Open the printer
top cover then open
the print head
mechanism.
2. Remove one screw
on the print head
module.
3. Disengage the print head plastic bracket by pulling down the middle of the plastic
bracket. Let print head bracket drops into its place.
4. Press the print head bracket and print head module a little bit to remove the both
side located pins.
Screws
