TA210/ TA310/ TA200/ TA300

Bar Code Printer Service Manual

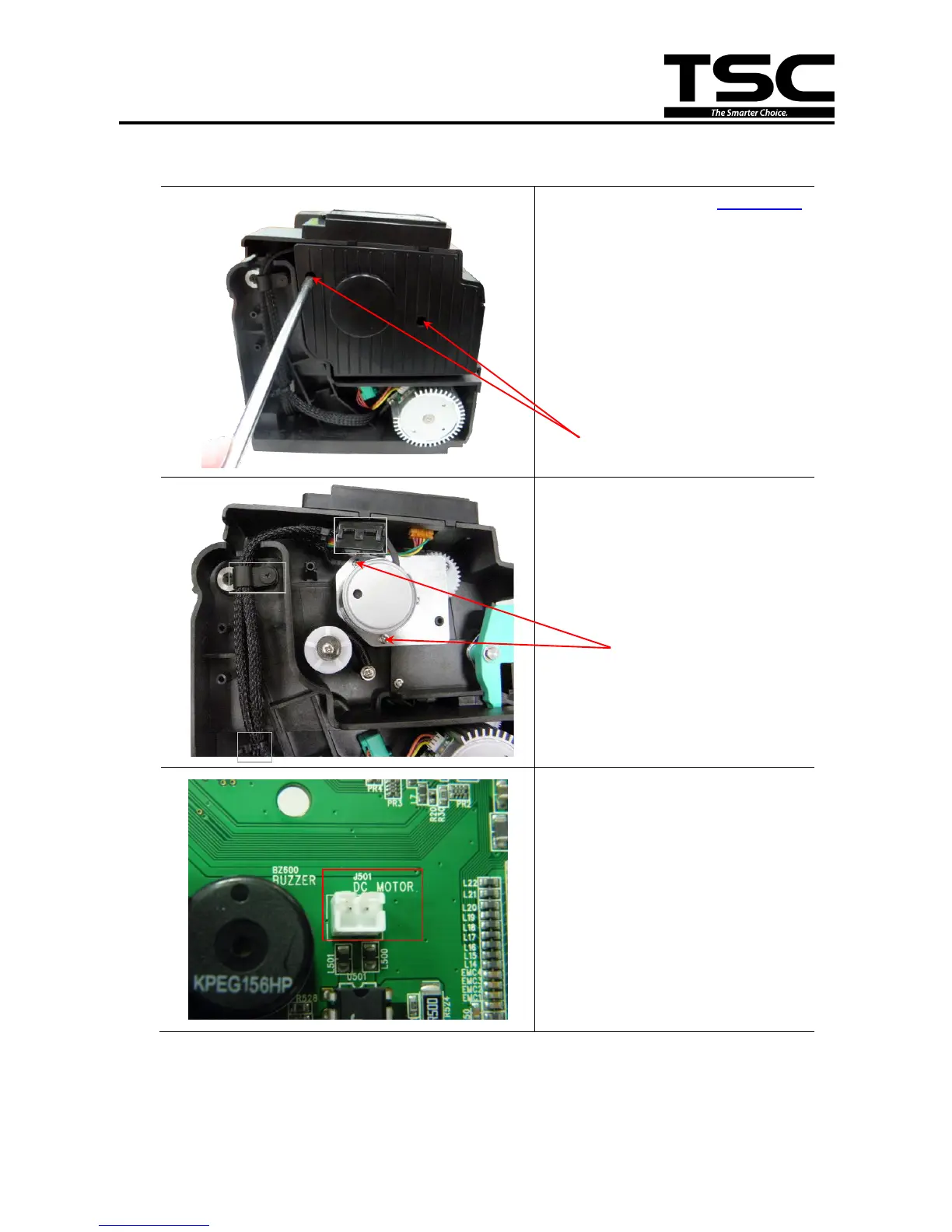

3.9 Replacing the DC Motor Module

1. Please refer to the section 3.1

to take out the print engine

mechanism.

2. Remove the two screws on the

DC motor cover.

3. Remove the two screws on the

DC motor.

4. Remover the ferrite core.

5. Remove the cable ties.

6. Disconnect the DC motor

connector (J501) from the

main board.

7. Remove/Replace the DC

motor module.

8. Reassemble the parts in the

reverse procedure.

Screws

Ferrite core

Cable tie
