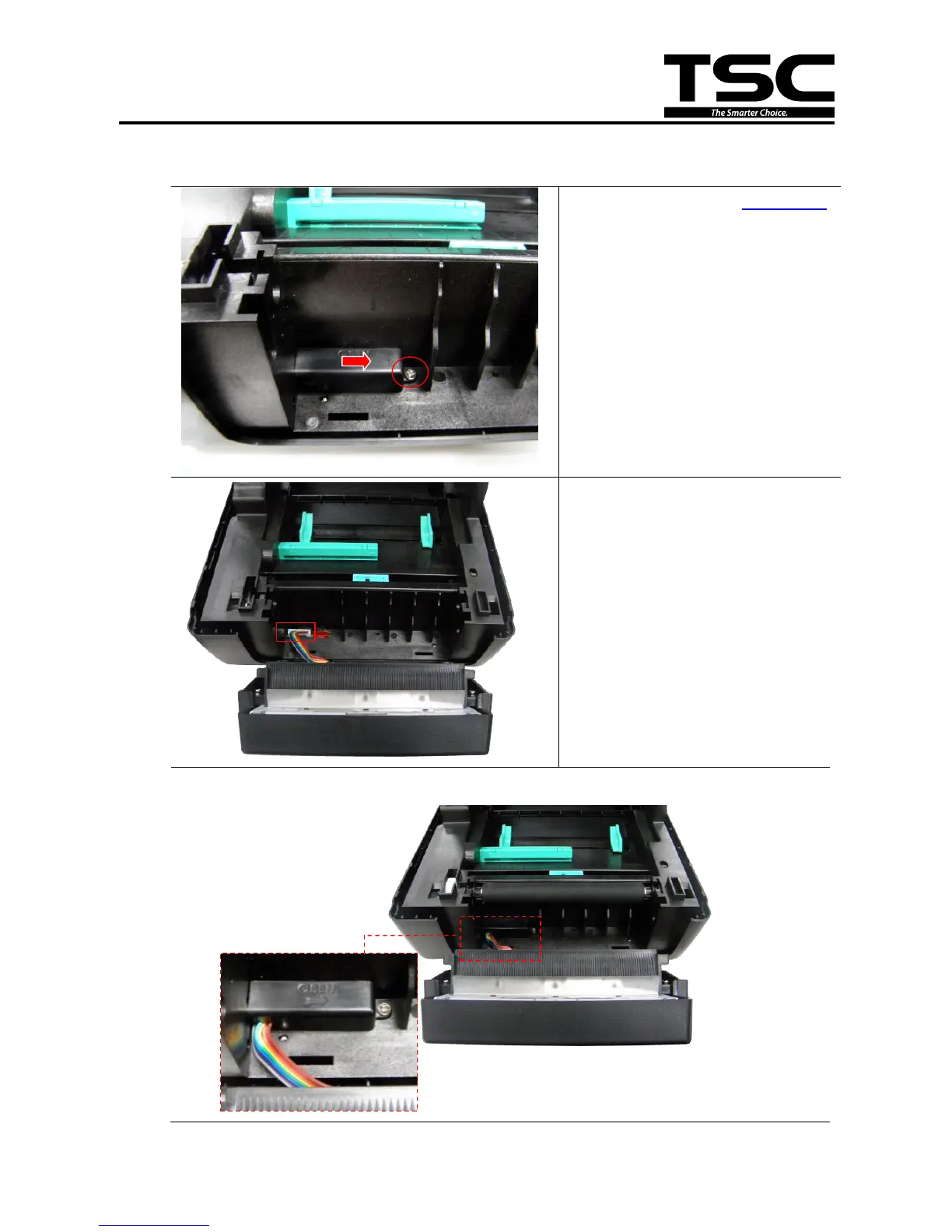

3.11 Cutter Module Installation (Option)
1. Please refer to the section 3.6
to remove the platen roller
assembly.
2. Unscrew one screw to remove
the connector cover.
3. Plug in the cutter module
harness connector to the
8-pin white socket on the
main board.
4. Install back the connector cover and platen roller assembly.
