TSC TDP-225 Series Service Manual

TDP-225 Series
Bar Code Printer Service Manual
11

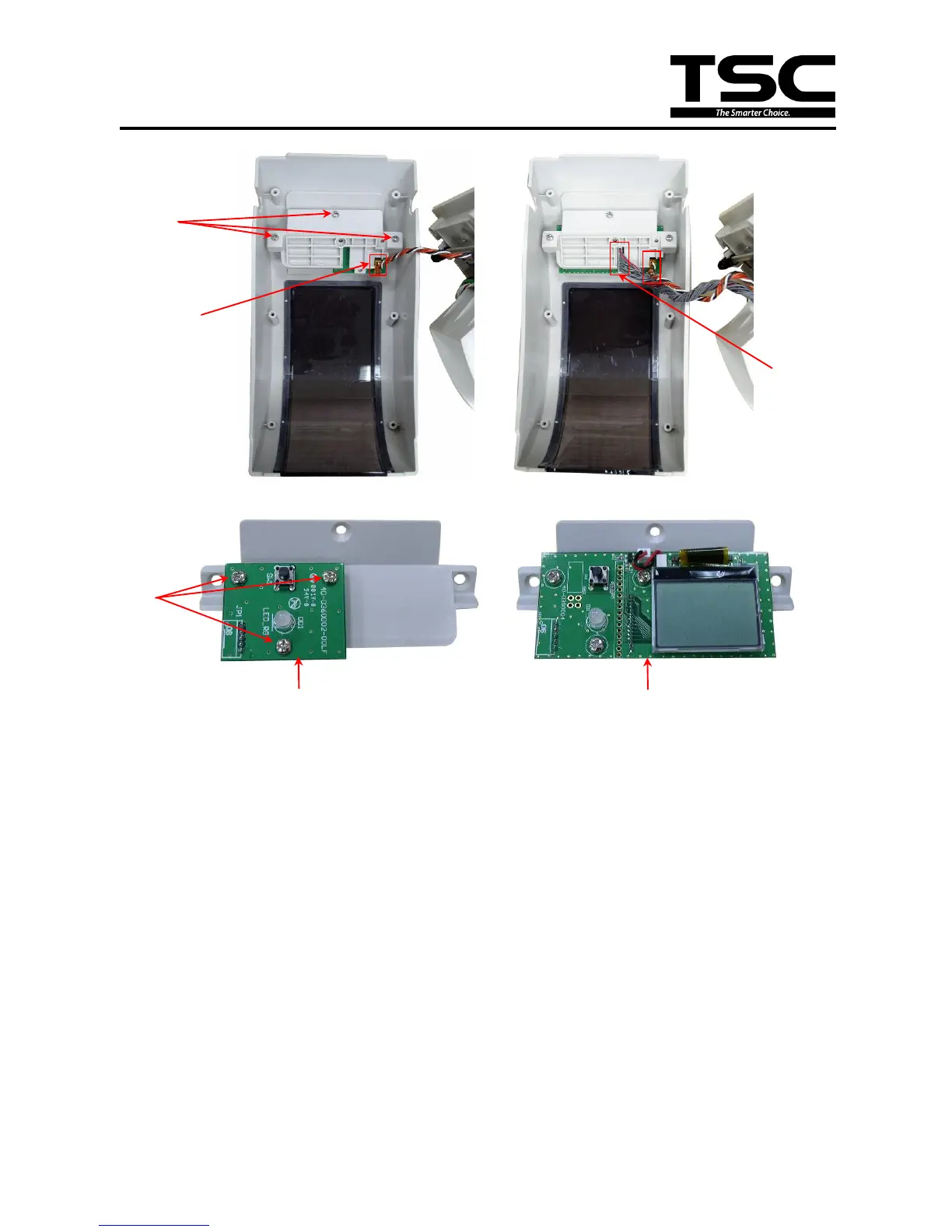

4. Remove three screws that fixed the feed button PCB to the holder.
5. Replace the feed button PCB or feed button PCB with LCD module.
6. Reassemble the parts in the reverse procedure.
Screws
Feed button PCB
Feed button
PCB harness
Screws
LCD harness
(Option)
Feed button PCB with LCD
module (Option)

TSC TDP-225 Series Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Resolution	203 DPI
Memory	8 MB Flash
Processor	32-bit RISC
Interface	USB 2.0
Power Supply	100-240V AC, 50/60Hz
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-40°F to 140°F (-20°C to 60°C)
Label Width	60 mm (2.36")
