TSC TDP-225 Series Service Manual

TDP-225 Series
Bar Code Printer Service Manual
18
3.6 Replacing the Stepping Motor

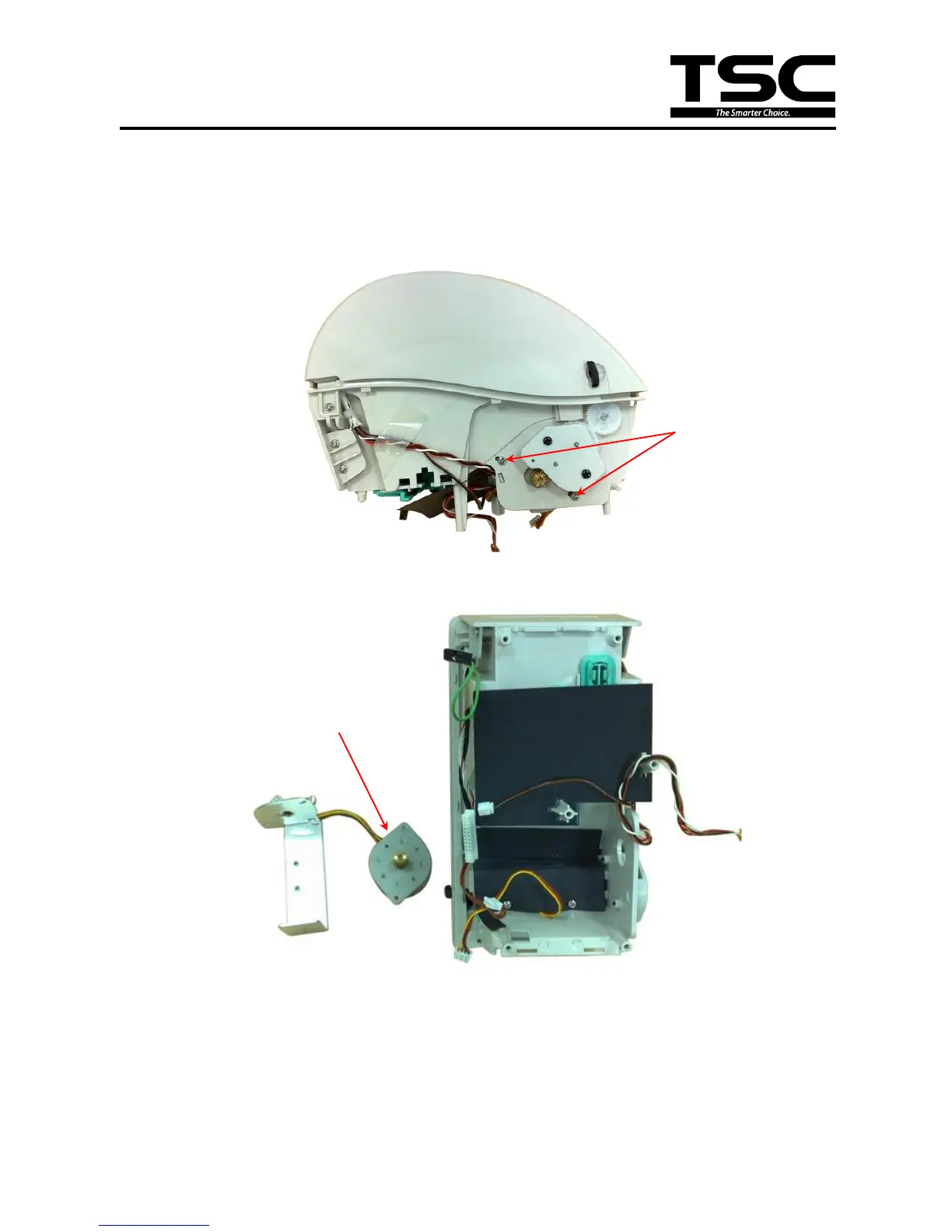

1. Refer to section 3.2 to remove main board and RS-232/Ethernet interface board.
2. Use the screwdriver to remove the 2 screws.
3. Remove/Replace the stepping motor.
4. Reassemble the parts in the reverse procedures.
Screws
Stepping motor

TSC TDP-225 Series Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Resolution	203 DPI
Memory	8 MB Flash
Processor	32-bit RISC
Interface	USB 2.0
Power Supply	100-240V AC, 50/60Hz
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-40°F to 140°F (-20°C to 60°C)
Label Width	60 mm (2.36")
