TSC TDP-225 Series Service Manual

TDP-225 Series
Bar Code Printer Service Manual
10
3. MECHANISM
Please turn off the power switch and unplug the power adapter before replacing parts.
3.1 Replacing Feed Button PCB (Feed Button PCB with LCD
Module/ Option for TDP-225/324 Model)

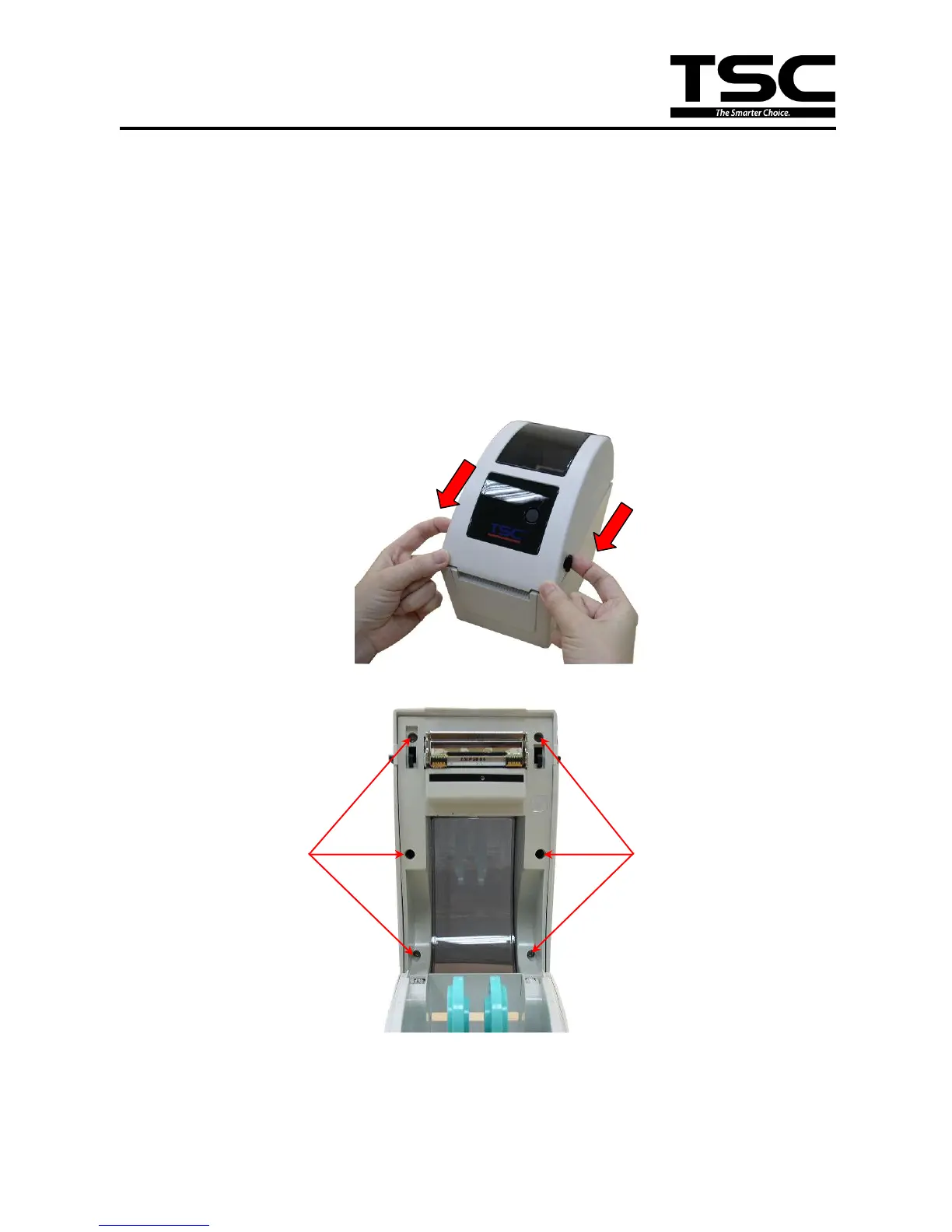

1. Open the printer top cover by pulling the tabs located on each side towards the front
of the printer, and then lift the top cover to the maximum open angle.
2. Use the screwdriver to remove the 6 screws from the top inner cover.
3. Disconnect the harness from the feed button PCB and remove the 3 screws from the
feed button PCB holder.
Screws
Screws

TSC TDP-225 Series Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Resolution	203 DPI
Memory	8 MB Flash
Processor	32-bit RISC
Interface	USB 2.0
Power Supply	100-240V AC, 50/60Hz
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-40°F to 140°F (-20°C to 60°C)
Label Width	60 mm (2.36")
