TSC TDP-225 Series Service Manual

TDP-225 Series
Bar Code Printer Service Manual
12
3.2 Replacing the Main Board and RS-232 (Ethernet interface
board/ Option for TDP-225/324 model)

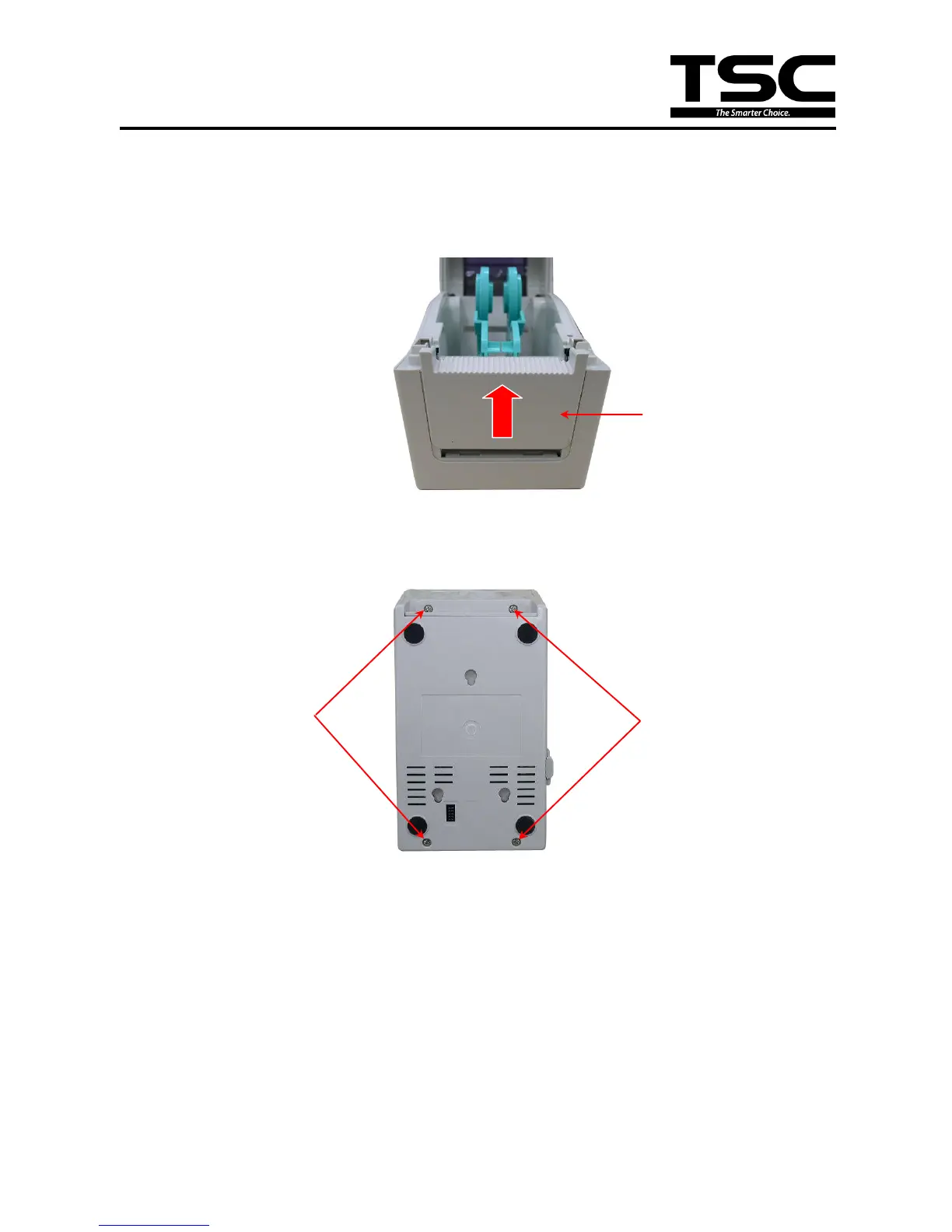

1. Open the top cover and remove the lower front cover.
2. Close the top cover. Then turn the printer upside down and use the screwdriver to
remove the 4 screws from lower cover.
3. Remove the lower cover.
Lower front cover
Screws
Screws

TSC TDP-225 Series Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Resolution	203 DPI
Memory	8 MB Flash
Processor	32-bit RISC
Interface	USB 2.0
Power Supply	100-240V AC, 50/60Hz
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-40°F to 140°F (-20°C to 60°C)
Label Width	60 mm (2.36")
