TSC TDP-225 Series Service Manual

TDP-225 Series
Bar Code Printer Service Manual
21

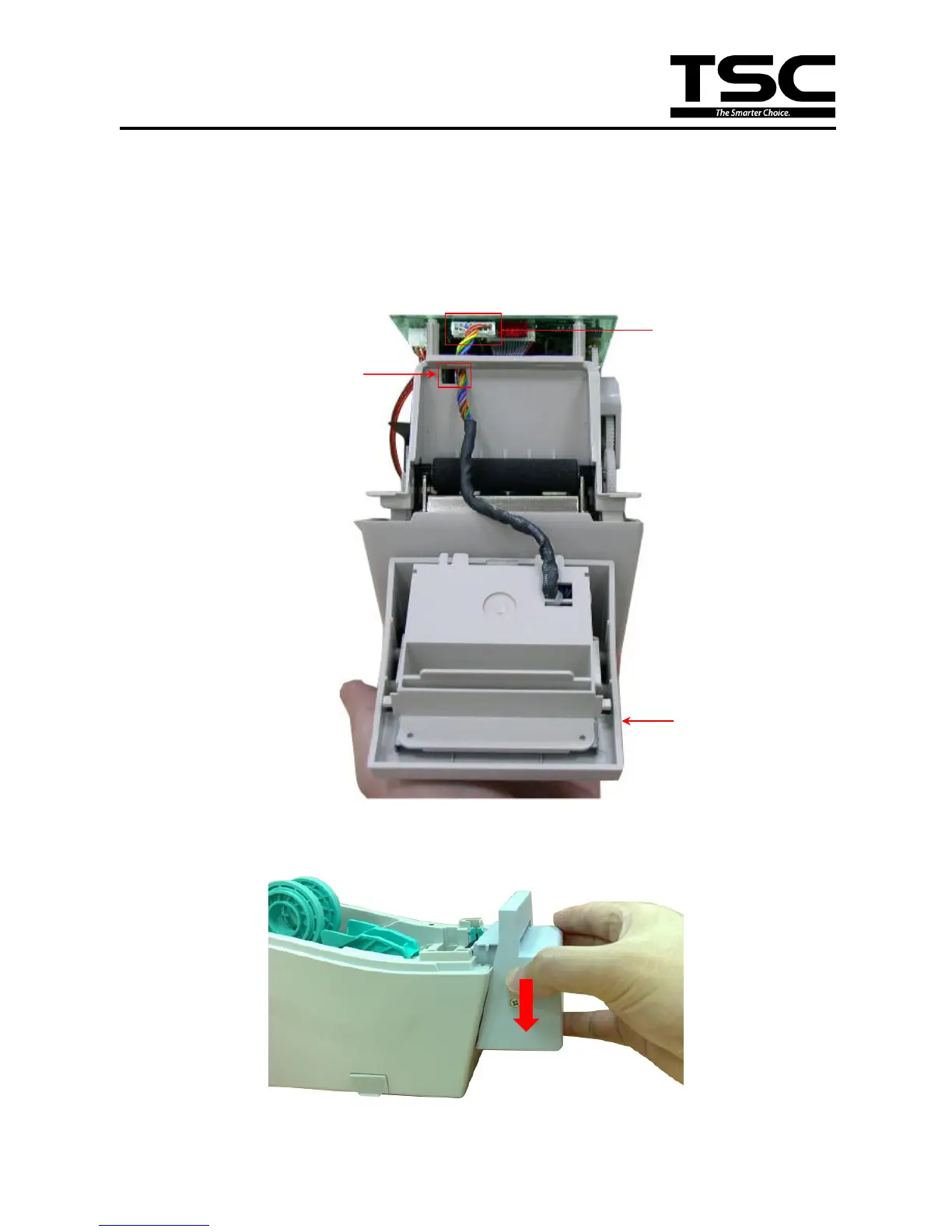

3.8 Cutter Module Installation (Option)
1. Refer to section 3.2 to remove the lower cover.
2. Thread the cutter module 8-pin harness through the front slot of lower inner cover.
Connect the cutter module harness connector to the 8-pin white socket on the printer
main board.
3. Then, put back the lower inner cover. Place the cutter module into the both sides
notches of lower inner cover, then push cutter to lock into the lower inner cover.
4 Place the printer in the flat and secured desktop for media loading and printing.
Slot
8-pin socket
Cutter module

TSC TDP-225 Series Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Resolution	203 DPI
Memory	8 MB Flash
Processor	32-bit RISC
Interface	USB 2.0
Power Supply	100-240V AC, 50/60Hz
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-40°F to 140°F (-20°C to 60°C)
Label Width	60 mm (2.36")
