TSC TDP-225 Series Service Manual

TDP-225 Series
Bar Code Printer Service Manual
20

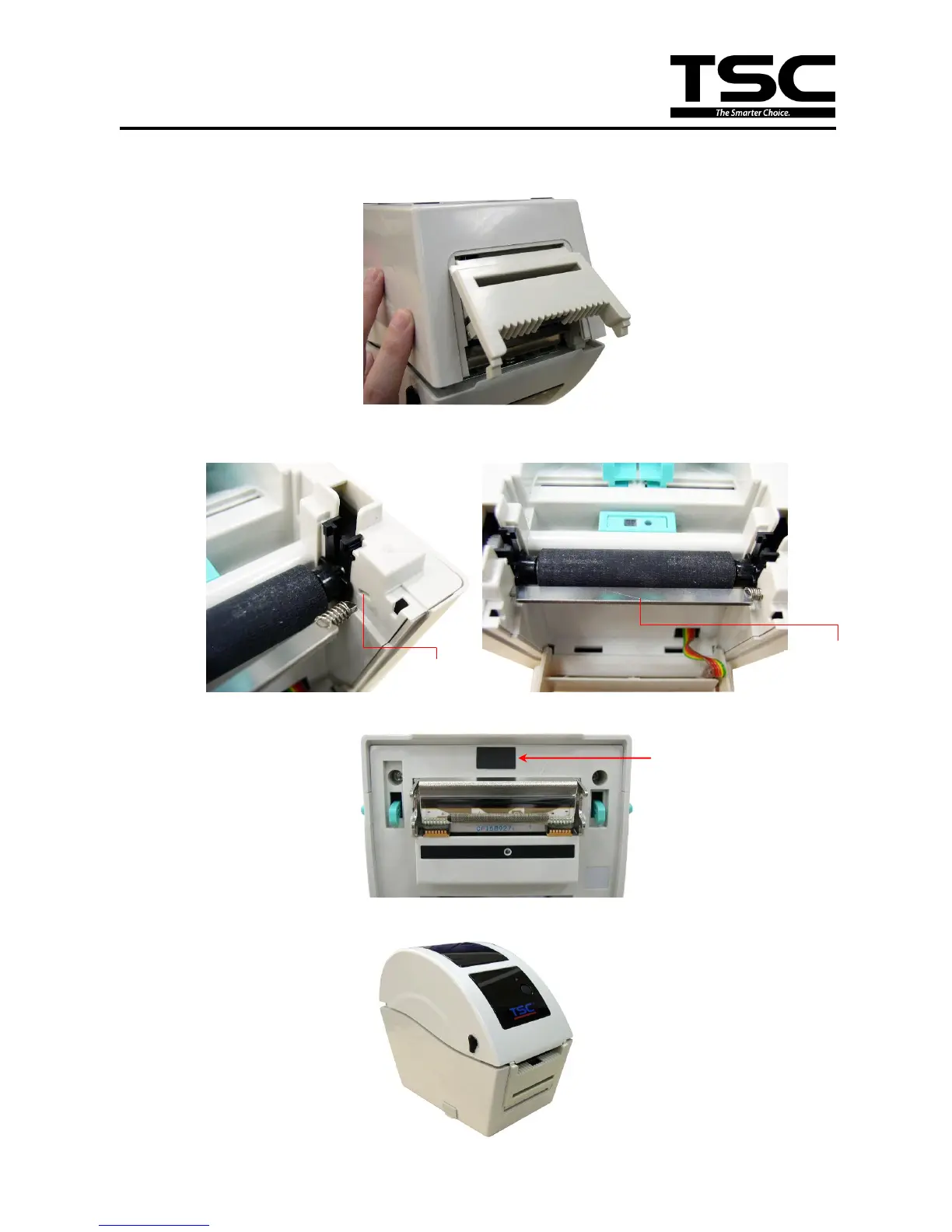

4. Then, put back the lower inner cover. Fasten the 4 screws and Insert the interface
plate.
5. Open the top cover and peel-off cover. Install the peel-off bar into the both slots of
lower inner cover. Install the right side with spring first.
6. Stick the black label on the top inner cover above the print head.
7. Place the printer in the flat and secured desktop for media loading and printing.
Slot
Peel-off bar
Black label

TSC TDP-225 Series Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Resolution	203 DPI
Memory	8 MB Flash
Processor	32-bit RISC
Interface	USB 2.0
Power Supply	100-240V AC, 50/60Hz
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-40°F to 140°F (-20°C to 60°C)
Label Width	60 mm (2.36")
